服务器架构页面无法跳转

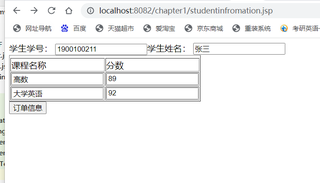

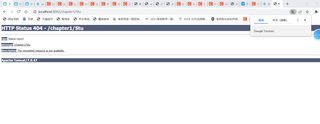

为什么我这页面点击提交后就404上面还是表达式里的值，并且也是方法的名字，有人能看一下吗

<!--pom.-->

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>chapter1</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>


    <!--    <properties>-->
    <!--        <maven.compiler.source>11</maven.compiler.source>-->
    <!--        <maven.compiler.target>11</maven.compiler.target>-->
    <!--        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>-->

    <!--    </properties>-->

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.11</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <!--               <scope>test</scope>-->
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>5.2.8.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>5.2.8.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.2.8.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-expression</artifactId>
            <version>5.2.8.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>commons-logging</groupId>
            <artifactId>commons-logging</artifactId>
            <version>1.2</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
        <version>5.2.8.RELEASE</version><!--    dad-->
        </dependency>
        <dependency>
            <groupId>org.apache.tomcat</groupId>
            <artifactId>annotations-api</artifactId>
            <version>6.0.29</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.8.4</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjrt</artifactId>
            <version>1.9.1</version>
        </dependency>
<!--        <dependency>-->
<!--            <groupId>mysql</groupId>-->
<!--            <artifactId>mysql-connector-java</artifactId>-->
<!--            <version>8.0.16</version>-->
<!--        </dependency>-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.2.8.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>5.2.8.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.2.8.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
            <version>2.3.4.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <version>2.9.0</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.jetbrains</groupId>
            <artifactId>annotations</artifactId>
            <version>24.0.1</version>
            <scope>compile</scope>
        </dependency>
<!--        <dependency>-->
<!--            <groupId>org.jetbrains</groupId>-->
<!--            <artifactId>annotations</artifactId>-->
<!--            <version>RELEASE</version>-->
<!--            <scope>compile</scope>-->
<!--        </dependency>-->

        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-web</artifactId>
            <version>2.8.2</version>
        </dependency>

        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-slf4j-impl</artifactId>
            <version>2.8.2</version>
        </dependency>

<!--        <dependency>-->
<!--            <groupId>org.aspectj</groupId>-->
<!--            <artifactId>aspectjweaver</artifactId>-->
<!--            <version>1.9.5</version>-->
<!--        </dependency>-->
        <!--日志结束-->


        <dependency>
            <groupId>org.elasticsearch.client</groupId>
            <artifactId>elasticsearch-rest-high-level-client</artifactId>
            <version>6.5.2</version>
            <exclusions>
                <exclusion>
                    <artifactId>log4j-api</artifactId>
                    <groupId>org.apache.logging.log4j</groupId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <configuration>
                    <port>8082</port>
                    <path>/chapter1</path>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>




```java
<!--spring-mvc-->
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       https://www.springframework.org/schema/mvc/spring-mvc.xsd">
<!--        <context:component-scan base-package="com.itheima"></context:component-scan>-->
    <context:component-scan base-package="com.hrbust.control"/>
        <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/"></property>
            <property name="suffix" value=".jsp"></property>
        </bean>
<!--    <mvc:annotation-driven/>-->
<!--        <mvc:resources mapping="/js/*" location="/js/"></mvc:resources>-->
<!--    <mvc:default-servlet-handler/>-->
    <mvc:default-servlet-handler></mvc:default-servlet-handler>




<!--    <mvc:interceptors>--><!--这是拦截器，是用来拦截的，有用就把他开启-->
<!--        <bean  class="com.itheima.interceptor.Myinterceptor"></bean>-->
<!--        <bean class="com.itheima.interceptor.LoginIntercepter"/>-->
<!--        <mvc:interceptor>-->
<!--            <mvc:mapping path="/**/"/>-->
<!--            <mvc:exclude-mapping path="/login"/>-->
<!--            <bean class="com.itheima.interceptor.LoginIntercepter"></bean>-->
<!--        </mvc:interceptor>-->
<!--    </mvc:interceptors>--><!--这是拦截器，是用来拦截的，有用就把他开启-->



<!--    <mvc:interceptors>-->
<!--        <bean class="com.itheima.interceptor.Myinterceptor"></bean>-->
<!--        <bean></bean>-->
<!--    </mvc:interceptors>-->
</beans>

```java
<!--web.xml-->

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
         http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" version="3.0">
    <!-- 配置 Spring MVC 的前端控制器 -->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <filter>
        <filter-name>EncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>EncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

</web-app>

chapter/Stu 检查下这个路径是不是映射的有问题

路由问题。跟一下control层的debug

路由问题，方便的话远程协助一下

从提供的代码来看，页面跳转出现 404 错误可能是因为缺少对应的 Controller 类或方法。请您检查一下在 web.xml 文件中，控制器类的扫描路径是否正确并且容器是否成功将其加载。

另外，在 spring-mvc.xml 文件中，也需要配置相应的控制器 bean，以及对应的 @RequestMapping 注解所标识的方法。如果有多个控制器类，请确保它们的命名空间不同，否则可能会导致冲突。
