ssm事务开启失败，网上查找资料任然未解决
问题遇到的现象和发生背景
在学习ssm集合框架的时候，搭建了一个小型的ssm项目，用以熟悉ssm框架，在准备开启ssm框架的事务时，无法开启事务。
出现问题后在网上查找问题，搜到如下解决方案：
1：区分springmvc容器和spring父容器的扫描范围，防止事务失效。
2：@Transactional后添加 propagation = Propagation.REQUIRED, rollbackFor = Throwable.class属性。
3：开启注解事务的时候 属性修改为 proxy-target-class="true"
以上解决方案均未解决我项目的问题。

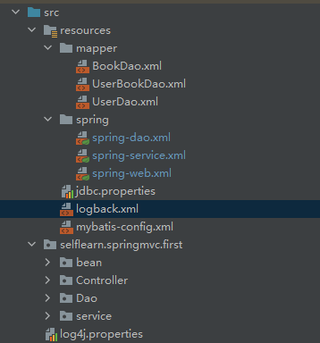

以下为我项目的项目结构
以下为我项目的配置文件 spring-dao.xml,spring-web.xml,spring-service.xml,web.xml,mybatis-config.xml
spring-dao.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd">
<!-- 配置整合mybatis过程 -->
<!-- 注解扫描-->
<context:component-scan base-package="selflearn.springmvc.first">
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
<!-- 1.配置数据库相关参数properties的属性：${url} -->
<context:property-placeholder location="classpath:jdbc.properties" />
<!-- 2.数据库连接池 -->
<bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<!-- 配置连接池属性 -->
<property name="driverClassName" value="${jdbc.driver}" />
<property name="url" value="jdbc:mysql://localhost:3306/mysql?characterEncoding=utf8&serverTimezone=UTC&serverTimezone=Asia/Shanghai" />
<property name="username" value="${jdbc.username}" />
<property name="password" value="${jdbc.password}" />
<!-- <!– c3p0连接池的私有属性 –>-->
<!-- <property name="maxPoolSize" value="30" />-->
<!-- <property name="minPoolSize" value="10" />-->
<!-- <!– 关闭连接后不自动commit –>-->
<!-- <property name="autoCommitOnClose" value="false" />-->
<!-- <!– 获取连接超时时间 –>-->
<!-- <property name="checkoutTimeout" value="10000" />-->
<!-- <!– 当获取连接失败重试次数 –>-->
<!-- <property name="acquireRetryAttempts" value="2" />-->
</bean>
<!-- 3.配置SqlSessionFactory对象 -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<!-- 注入数据库连接池 -->
<property name="dataSource" ref="dataSource" />
<!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
<property name="configLocation" value="classpath:mybatis-config.xml" />
<!-- bean 使用别名 -->
<property name="typeAliasesPackage" value="selflearn.springmvc.first.bean" />
<!-- 扫描sql配置文件:mapper需要的xml文件 -->
<property name="mapperLocations" value="classpath:mapper/*.xml" />
</bean>
<!-- 4.配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
<bean id="mapperScanner" class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<!-- 注入sqlSessionFactory -->
<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
<!-- 给出需要扫描Dao接口包 -->
<property name="basePackage" value="selflearn.springmvc.first.Dao" />
</bean>
<!-- 配置事务管理器 -->
<bean id="transactionManager"
class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<!-- 注入数据库连接池 -->
<property name="dataSource" ref="dataSource" />
</bean>
<!-- 配置基于注解的声明式事务 -->
<tx:annotation-driven proxy-target-class="true" />
</beans>
spring-service.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd">
<!-- 扫描service包下所有使用注解的类型 -->
<context:component-scan base-package="selflearn.springmvc.first.service.serviceimpl" />
</beans>
spring-web.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">
<!-- 配置SpringMVC -->
<!-- 1.开启SpringMVC注解模式 -->
<!-- 简化配置：
(1)自动注册DefaultAnootationHandlerMapping,AnotationMethodHandlerAdapter
(2)提供一些列：数据绑定，数字和日期的format @NumberFormat, @DateTimeFormat, xml,json默认读写支持
-->
<mvc:annotation-driven />
<!-- 2.静态资源默认servlet配置
(1)加入对静态资源的处理：js,gif,png
(2)允许使用"/"做整体映射
-->
<mvc:default-servlet-handler/>
<!-- 3.配置jsp 显示ViewResolver -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
<property name="prefix" value="/WEB-INF/jsp/" />
<property name="suffix" value=".jsp" />
</bean>
<!-- 配置多媒体文件解析器 (文件上传下载)-->
<bean id="multipartResolver"
class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
<!-- 设定默认编码 -->
<property name="defaultEncoding" value="UTF-8"></property>
<!-- 设定文件上传的最大值2MB， 2*1024*1024 -->
<property name="maxUploadSize" value="2097152"></property>
<!--resolveLazily属性启用是为了推迟文件解析，以便在UploadAction 中捕获文件大小异常-->
<property name="resolveLazily" value="true"/>
</bean>
<!-- 4.扫描web相关的bean -->
<context:component-scan base-package="selflearn.springmvc.first.Controller" />
</beans>
web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
version="3.1">
<!-- 加载spring容器 -->
<!-- 初始化加载application.xml的各种配置文件 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring/spring-dao.xml,spring/spring-service.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- 配置springmvc前端控制器 -->
<servlet>
<servlet-name>dispatcher</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!-- contextConfigLocation不是必须的， 如果不配置contextConfigLocation，
springmvc的配置文件默认在：WEB-INF/servlet的name+"-servlet.xml" -->
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring/spring-web.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
//乱码问题
<filter>
<description>字符编码过滤器</description>
<filter-name>encoding</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<!-- <init-param>-->
<!-- <param-name>forceEncoding</param-name>-->
<!-- <param-value>true</param-value>-->
<!-- </init-param>-->
</filter>
<filter-mapping>
<filter-name>encoding</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<servlet-mapping>
<servlet-name>dispatcher</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.css</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.js</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.ico</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.jpg</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.png</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>default</servlet-name>
<url-pattern>*.gif</url-pattern>
</servlet-mapping>
</web-app>
mybaits-config.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<settings>
<setting name="logImpl" value="LOG4J" />
<setting name = "cacheEnabled" value = "true" />
<!-- 使用jdbc的getGeneratedKeys获取数据库自增主键值 -->
<setting name="useGeneratedKeys" value="true" />
<!-- 使用列别名替换列名 默认:true -->
<setting name="useColumnLabel" value="true" />
<!-- 开启驼峰命名转换:Table{create_time} -> Entity{createTime} -->
<setting name="mapUnderscoreToCamelCase" value="true" />
</settings>
<typeAliases>
<!--
alias：定义的别名
type：指定要起别名的类型全类名
默认别名就是类名小写
-->
<typeAlias alias="user" type="selflearn.springmvc.first.bean.User"/>
<typeAlias alias="book" type="selflearn.springmvc.first.bean.Book"/>
<typeAlias alias="userbook" type="selflearn.springmvc.first.bean.UserBook"
/>
</typeAliases>
以下为我的测试文件
@Transactional(propagation = Propagation.REQUIRED, rollbackFor = Throwable.class)
@Service
@Component
public class Bookservice {
@Autowired
private BookDao bookDao;
@Autowired
private UserBook userBook;
@Autowired
private Book book;
@Autowired
private User user;
@Qualifier("UserBookDao")
@Autowired
private UserBookDao userbookDao;
private static Bookservice bookservice;
@PostConstruct //通过@PostConstruct实现初始化bean之前进行的操作
public void init() {
bookservice = this;
}
@Test
public void insertT(){
bookservice.book.setName ("测试名称");
bookservice.book.setAuthor ("我1");
bookservice.book.setFileUrl ("文件路径");
bookservice.book.setImg ("图谱路径");
bookservice.bookDao.add (bookservice.book);
throw new RuntimeException("huigun");
}
希望能帮我解决这个问题，不甚感激
别搞这些花里胡哨的东西，自己去写代码调用这个方法，再看结果
