Dijkstra算法实体类

从零开始学习Java编程,最近学到Dijkstra算法很头大
想请教如果是Java开发中想通过Dijkstra算法实现最短路径的查找,那么Java程序的实体类属性应该根据什么去定义

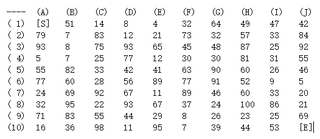

以上方图片内容为例,求S点到E点的最短路径,应该依据什么原则去定义实体类的属性


import java.util.*;

public class Dijkstra {
    public static void main(String[] args) {
        Graph graph = new Graph();
        Node s = graph.addNode("S");
        Node a = graph.addNode("A");
        Node b = graph.addNode("B");
        Node c = graph.addNode("C");
        Node d = graph.addNode("D");
        Node e = graph.addNode("E");

        // 添加节点之间的边
        s.addNeighbor(a, 1);
        s.addNeighbor(b, 4);
        a.addNeighbor(b, 2);
        a.addNeighbor(c, 5);
        b.addNeighbor(c, 1);
        c.addNeighbor(e, 4);
        b.addNeighbor(d, 3);
        d.addNeighbor(e, 1);

        // 计算最短路径并打印结果
        graph.computeShortestPath(s, e);
        List<Node> path = graph.getShortestPath(e);
        System.out.println("Shortest path from S to E: " + path);
    }

    // 节点类
    static class Node {
        private String id;
        private Map<Node, Integer> neighbors; // 邻居节点及其到该节点的距离
        private int distance; // 距离起点的最短距离
        private Node predecessor; // 到该节点的最短路径上的前缀节点

        public Node(String id) {
            this.id = id;
            this.neighbors = new HashMap<>();
            this.distance = Integer.MAX_VALUE; // 初始化为无穷大
            this.predecessor = null; // 初始化为null
        }

        public String getId() {
            return id;
        }

        public void addNeighbor(Node neighbor, int weight) {
            this.neighbors.put(neighbor, weight);
        }

        public Map<Node, Integer> getNeighbors() {
            return neighbors;
        }

        public int getDistance() {
            return distance;
        }

        public void setDistance(int distance) {
            this.distance = distance;
        }

        public Node getPredecessor() {
            return predecessor;
        }

        public void setPredecessor(Node predecessor) {
            this.predecessor = predecessor;
        }

        @Override
        public String toString() {
            return id;
        }
    }

    // 图类
    static class Graph {
        private Map<String, Node> nodes; // 节点列表

        public Graph() {
            this.nodes = new HashMap<>();
        }

        // 添加节点
        public Node addNode(String id) {
            Node node = new Node(id);
            nodes.put(id, node);
            return node;
        }

        // 获取节点
        public Node getNode(String id) {
            return nodes.get(id);
        }

        // 计算从起点到目标节点的最短路径
        public void computeShortestPath(Node source, Node target) {
            source.setDistance(0); // 将起点的距离设置为0
            Queue<Node> unvisitedNodes = new PriorityQueue<>((n1, n2) -> Integer.compare(n1.getDistance(), n2.getDistance()));
            // 使用优先队列维护未访问的节点,并按照距离排序

            unvisitedNodes.add(source);

            while (!unvisitedNodes.isEmpty()) {
                Node currentNode = unvisitedNodes.poll(); // 获取距离起点最近的未访问节点

                if (currentNode == target) { // 如果当前节点是目标节点,结束循环
                    return;
                }

                for (Map.Entry<Node, Integer> neighborEntry : currentNode.getNeighbors().entrySet()) {
                    Node neighbor = neighborEntry.getKey(); // 获取邻居节点
                    int weight = neighborEntry.getValue(); // 获取到邻居节点的边的权重
                    int distanceThroughCurrent = currentNode.getDistance() + weight; // 通过当前节点到达邻居节点的距离

                    if (distanceThroughCurrent < neighbor.getDistance()) { // 如果通过当前节点到达邻居节点的距离更短
                        unvisitedNodes.remove(neighbor); // 从未访问节点中删除邻居节点
                        neighbor.setDistance(distanceThroughCurrent); // 更新邻居节点的距离
                        neighbor.setPredecessor(currentNode); // 更新邻居节点的前缀节点
                        unvisitedNodes.add(neighbor); // 将邻居节点添加到未访问节点中
                    }
                }
            }
        }

        // 获取从起点到目标节点的最短路径
        public List<Node> getShortestPath(Node target) {
            List<Node> path = new ArrayList<>();
            for (Node node = target; node != null; node = node.getPredecessor()) {
                path.add(node); // 将节点添加到路径中
            }
            Collections.reverse(path); // 反转路径,使其从起点到目标节点
            return path;
        }
    }
}
