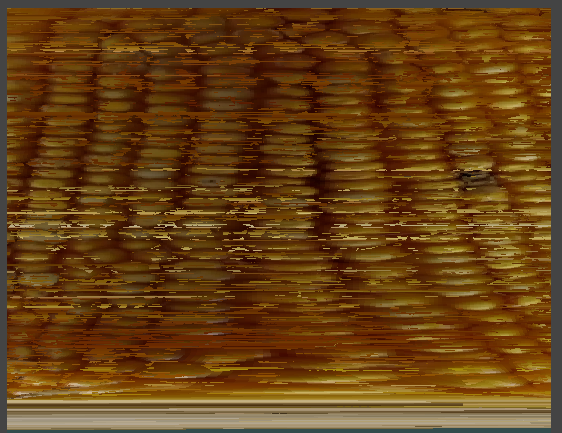

朋友写的映射算法，把mesh的z值改了。把3d模型绘制成2d模型。但绘制出的模型有瑕疵。不知道如何改善这个瑕疵

//映射算法核心部分
void Model::mapping()
{
    // 保存该点坐标的临时变量
    std::vector<float> points(3);

    int mesh_num = m_meshes.size();
    for(int mesh_idx = 0; mesh_idx < mesh_num; ++ mesh_idx)
    {
        // 当前 mesh 中顶点的数量
        int cur_mesh_size = m_meshes[mesh_idx].m_vertices.size();

        // 获取每一行顶点坐标
        for(int vertex_idx = 0; vertex_idx < cur_mesh_size; ++ vertex_idx)
        {
               points[0] = m_meshes[mesh_idx].m_vertices[vertex_idx].Position.x();
               points[1] = m_meshes[mesh_idx].m_vertices[vertex_idx].Position.y();
               points[2] = m_meshes[mesh_idx].m_vertices[vertex_idx].Position.z();

               // 对 x, y, z 进行标准化
               for(int i = 0; i < 3; i ++ )
               {
                   //normalization
                   points[i] -= (m_max_coord[mesh_idx][i] + m_min_coord[mesh_idx][i]) / 2.0f;
                   points[i] /= m_max_coord[mesh_idx][i] - m_min_coord[mesh_idx][i];
               }

               // 坐标系的 y, z 在 obj 里是相反的
               if(m_max_coord[mesh_idx][2] - m_min_coord[mesh_idx][2] > m_max_coord[mesh_idx][1] - m_min_coord[mesh_idx][1])
               {
                   std::swap(points[1], points[2]);
               }

               //做二维映射
               for(int i = 0; i < 3; i ++)
               {
                   if(i == 0)
                   {
                       points[i] = (PI + std::atan2(points[2], points[0])) / (static_cast<float>(PI) * 2);
                       m_meshes[mesh_idx].m_vertices[vertex_idx].Position.setX(points[i]);
                   }
                   else if(i == 1)
                   {
                       points[i] = (1 + points[1]) / 2;
                       m_meshes[mesh_idx].m_vertices[vertex_idx].Position.setY(points[i]);
                   }
                   else
                   {
                        points[i] = 1.0;
                        m_meshes[mesh_idx].m_vertices[vertex_idx].Position.setZ(points[i]);
                   }
               }
        }
    }
}

.h文件

//.h文件
#ifndef TRANSFORMTOIMAGE
#define TRANSFORMTOIMAGE
#define STB_IMAGE_IMPLEMENTATION

#define PI 3.141593
#define VERTEX_NUM 3
#define TEXTURE_VERTEX_NUM 3
#define INDEX_NUM 2

#define LOG_VARIABLE(info, x) std::cout<<"[ "<<info" ]  "<<x<<std::endl
#define LOG_TEXT(text) std::cout<<text<<std::endl

#include <glad/glad.h>

#include <glm/glm.hpp>
#include <glm/gtc/matrix_transform.hpp>

#include <assimp/Importer.hpp>
#include <assimp/scene.h>
#include <assimp/postprocess.h>

#include "mesh.h"
#include "shader_m.h"
#include "camera.h"

#include <string>
#include <fstream>
#include <sstream>
#include <iostream>
#include <map>
#include <vector>
#include <algorithm>
#include <stdio.h>
#include <stdlib.h>

const float INF = 999.0;

class TransformToImage
{
public:
	TransformToImage() = default;
	~TransformToImage();

	// TransformToImage(std::vector<Vertex> vertices, std::vector<unsigned int> indices, std::vector<Texture> textures);
	TransformToImage(std::vector<Mesh> meshed);

	void transform();

	std::vector<Mesh> get_meshes() { return this->m_meshes; }

	void set_matrics(Shader shader, Camera camera);         // 变换矩阵

	void *get_data();

	void draw_texture(Shader& shader, Camera& camera);

protected:
	void get_bounding_box();	// 获取包围盒参数
	void mapping();				// 实施二维映射
	void create_framebuffer();  // 创建帧缓冲

private:
	std::vector<Mesh>    m_meshes;
	std::vector<std::vector<float>> m_max_coord;
	std::vector<std::vector<float>> m_min_coord;
	unsigned int FBO;
	unsigned int RBO;
	unsigned int texture_2D;
	float* data;
};

#endif

.cpp文件

#include "transform_to_image.h"


TransformToImage::TransformToImage(std::vector<Mesh> meshes)
{
    this->m_meshes = meshes;

    int meshes_size = meshes.size();
    this->m_max_coord.resize(meshes_size);
    this->m_min_coord.resize(meshes_size);

    // 初始化每个网格的包围盒初值
    for (int mesh_idx = 0; mesh_idx < meshes_size;  ++ mesh_idx)
    {
        for (int i = 0; i < VERTEX_NUM; ++i)
        {
            this->m_max_coord[mesh_idx].push_back(-INF);
            this->m_max_coord[mesh_idx].push_back(-INF);
            this->m_max_coord[mesh_idx].push_back(-INF);

            this->m_min_coord[mesh_idx].push_back(INF);
            this->m_min_coord[mesh_idx].push_back(INF);
            this->m_min_coord[mesh_idx].push_back(INF);
        }
    }

    LOG_TEXT("initialization succeed");
}

TransformToImage::~TransformToImage()
{
    // delete[] data;
}

void TransformToImage::transform()
{
    // 计算三维包围盒
    this->get_bounding_box();

    // 二维映射
    this->mapping();
}

void TransformToImage::draw_texture(Shader& shader, Camera& camera)
{
    glClearColor(0.05f, 0.05f, 0.05f, 1.0f);
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

    /// 设置变换矩阵
    set_matrics(shader, camera);

    /// 创建 FBO
    create_framebuffer();

    ///渲染
    int mesh_size = m_meshes.size();
    for (int mesh_idx = 0; mesh_idx < mesh_size; ++mesh_idx)
    {
        /// 设置好 mesh 参数
        m_meshes[mesh_idx].setMesh();

        /// 构建、编译着色器
        shader.use();

        /// 渲染
        m_meshes[mesh_idx].Draw(shader);
    }

    get_data();
}

void TransformToImage::get_bounding_box()
{
    // 保存该点坐标的临时变量
    std::vector<float> points(3);

    int mesh_num = this->m_meshes.size();
    // LOG_VARIABLE("mesh_num", mesh_num);
    // std::cout << m_meshes[0].vertices[0].Position.x << " " << m_meshes[0].vertices[0].Position.y << " " << m_meshes[0].vertices[0].Position.z << std::endl;

    for (int mesh_idx = 0; mesh_idx < mesh_num; ++mesh_idx)
    {
        // 当前 mesh 中顶点的数量
        int cur_mesh_size = m_meshes[mesh_idx].vertices.size();
        LOG_VARIABLE("vertices in mesh bounding box", cur_mesh_size);

        // 获取每一行顶点坐标
        for (int vertex_idx = 0; vertex_idx < cur_mesh_size; ++vertex_idx)
        {
            // 删除法向量
            this->m_meshes[mesh_idx].vertices[vertex_idx].Normal = glm::vec3(0.0f, 0.0f, 1.0f);

            points[0] = this->m_meshes[mesh_idx].vertices[vertex_idx].Position.x;
            points[1] = this->m_meshes[mesh_idx].vertices[vertex_idx].Position.y;
            points[2] = this->m_meshes[mesh_idx].vertices[vertex_idx].Position.z;

            for (int i = 0; i < VERTEX_NUM; ++i)
            {

                // 获取包围盒参数
                m_max_coord[mesh_idx][i] = std::max(m_max_coord[mesh_idx][i], points[i]);
                m_min_coord[mesh_idx][i] = std::min(m_min_coord[mesh_idx][i], points[i]);
            }

        }
    }

}

void TransformToImage::mapping()
{
    /// 保存该点坐标的临时变量
    std::vector<float> points(3);

    int mesh_num = this->m_meshes.size();
    // LOG_VARIABLE("mesh_num", mesh_num);

    for (int mesh_idx = 0; mesh_idx < mesh_num; ++mesh_idx)
    {
        // 当前 mesh 中顶点的数量
        int cur_mesh_size = m_meshes[mesh_idx].vertices.size();
        LOG_VARIABLE("vertices in mesh mapping", cur_mesh_size);

        // 获取每一行顶点坐标
        for (int vertex_idx = 0; vertex_idx < cur_mesh_size; ++vertex_idx)
        {
            points[0] = this->m_meshes[mesh_idx].vertices[vertex_idx].Position.x;
            points[1] = this->m_meshes[mesh_idx].vertices[vertex_idx].Position.y;
            points[2] = this->m_meshes[mesh_idx].vertices[vertex_idx].Position.z;

            // 对 x, y, z 进行标准化
            for (int i = 0; i < VERTEX_NUM; ++i)
            {
                // normalization
                points[i] -= (m_max_coord[mesh_idx][i] + m_min_coord[mesh_idx][i]) / 2.0f;      // 平移到中心点
                points[i] /= m_max_coord[mesh_idx][i] - m_min_coord[mesh_idx][i];
            }

            // 坐标系的 y, z 在 obj 里是相反的
            if (m_max_coord[mesh_idx][2] - m_min_coord[mesh_idx][2] > m_max_coord[mesh_idx][1] - m_min_coord[mesh_idx][1])
            {
                std::swap(points[1], points[2]);
            }

            // 做二维映射
            for (int i = 0; i < VERTEX_NUM; ++i)
            {
                if (i == 0)
                {
                    points[i] = (PI + std::atan2(points[2], points[0])) / (static_cast<float>(PI) * 2);
                    this->m_meshes[mesh_idx].vertices[vertex_idx].Position.x = points[i];
                }
                else if (i == 1)
                {
                    points[i] = (1 + points[1]) / 2;
                    this->m_meshes[mesh_idx].vertices[vertex_idx].Position.y = points[i];
                }
                else
                {
                    points[i] = 1.0;
                    this->m_meshes[mesh_idx].vertices[vertex_idx].Position.z = points[i];
                }
            }
        }
    }

}

void TransformToImage::set_matrics(Shader shader, Camera camera)
{
    // 定义投影矩阵、视图矩阵
    glm::mat4 projection = glm::perspective(glm::radians(camera.Zoom), (float)800 / (float)600, 0.1f, 100.0f);
    glm::mat4 view = camera.GetViewMatrix();

    // 定义模型矩阵
    glm::mat4 model = glm::mat4(1.0f);
    // 平移
    model = glm::translate(model, glm::vec3(0.0f, 0.0f, 0.0f));
    // 缩放
    model = glm::scale(model, glm::vec3(0.1f, 0.1f, 0.1f));
    // 旋转
    model = glm::rotate(model, glm::radians(0.0f), glm::vec3(1.0f, 0.0f, 0.0f));

    // 转换矩阵传入着色器
    shader.setMat4("projection", projection);
    shader.setMat4("view", view);
    shader.setMat4("model", model);
}

void *TransformToImage::get_data()
{
    /// 为像素数据分配内存
    data = new float[800 * 600 * sizeof(float) * 3];

    /// 从显存中读取数据
    glReadPixels(0, 0, 800, 600, GL_RGBA, GL_FLOAT, data);

    return static_cast<void*>(data);
}


void TransformToImage::create_framebuffer()
{
    // 创建帧缓冲
    glGenFramebuffers(1, &FBO);
    // 激活, 在绑定到GL_FRAMEBUFFER目标之后，所有的读取和写入帧缓冲的操作将会影响当前绑定的帧缓冲
    glBindFramebuffer(GL_FRAMEBUFFER, FBO);

#if 0
    // 生成纹理
    glGenTextures(1, &texture_2D);
    glBindTexture(GL_TEXTURE_2D, texture_2D);
    glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB, 800, 600, 0, GL_RGB, GL_UNSIGNED_BYTE, NULL);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
    // 将纹理附加到当前创建的 framebuffer 上
    glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_TEXTURE_2D, texture_2D, 0);
#endif

    // 深度附件
    glGenRenderbuffers(1, &RBO);
    glBindRenderbuffer(GL_RENDERBUFFER, RBO);
    glRenderbufferStorage(GL_RENDERBUFFER, GL_DEPTH24_STENCIL8, 800, 600);

    // 将渲染缓冲对象附加到帧缓冲的深度和模板附件上
    glFramebufferRenderbuffer(GL_FRAMEBUFFER, GL_DEPTH_STENCIL_ATTACHMENT, GL_RENDERBUFFER, RBO);

    // 检查完整性
    if (glCheckFramebufferStatus(GL_FRAMEBUFFER) != GL_FRAMEBUFFER_COMPLETE)
        std::cout << "ERROR::FRAMEBUFFER:: Framebuffer is not complete!" << std::endl;
    else
        std::cout << "SUCCEED::FRAMEBUFFER:: Framebuffer is complete!" << std::endl;

    // 恢复主窗口的前台渲染效果
    glBindFramebuffer(GL_FRAMEBUFFER, 0);
}

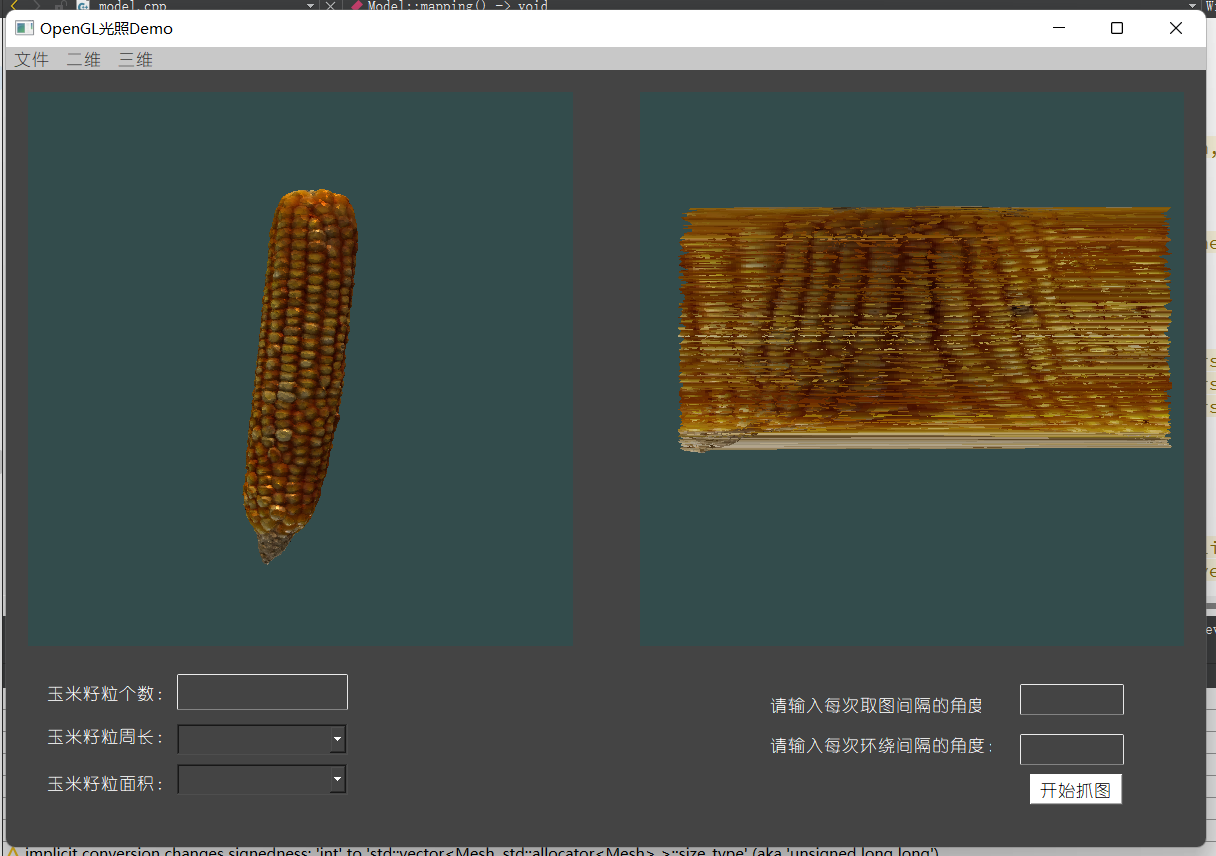

这是我们的实验结果。我们是用Qt封装成mesh来做的。
