matlab 卡诺循环代码

给个代码就行各位，如果可以的话在代码后面给个%%说每个代码啥意思

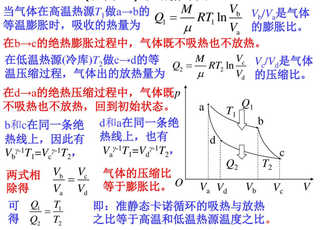

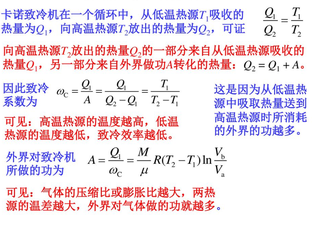

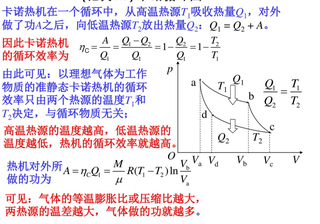

把下面的题弄成一个代码

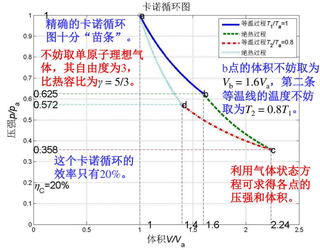

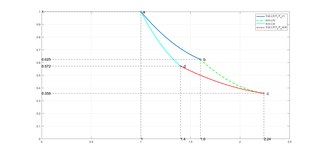

clc,clear,close all;
%a——c
x_ab = [1,1.25,1.6];
y_ab = [1,0.8,0.625];
x_bc = [1.6,1.8,2.24];
y_bc = [0.625,0.5,0.358];
%interp1三次样条插值
xq_ab = linspace(1,1.6,100);  %100个点密度
vq_ab = interp1(x_ab,y_ab,xq_ab,'spline');
plot(xq_ab,vq_ab,"LineWidth",2);
hold on
xq_bc = linspace(1.6,2.24,100);
vq_bc = interp1(x_bc,y_bc,xq_bc,'spline');
plot(xq_bc,vq_bc,'g--',"LineWidth",2);
%c——a
x_ad = [1,1.15,1.4];
y_ad = [1,0.8,0.572];
x_dc = [1.4,1.6,2.24];
y_dc = [0.572,0.5,0.358];
%interp1三次样条插值
xq_ad = linspace(1,1.4,100);  %100个点密度
vq_ad = interp1(x_ad,y_ad,xq_ad,'spline');
plot(xq_ad,vq_ad,'c-',"LineWidth",2);
xq_dc = linspace(1.4,2.24,100);
vq_dc = interp1(x_dc,y_dc,xq_dc,'spline');
plot(xq_dc,vq_dc,'r-.',"LineWidth",2);
grid on
axis([0 2.5 0 1])

%贴abcd标签
text(1.02,1,'a','FontSize',15)
text(1.63,0.625,'b','FontSize',15)
text(2.27,0.358,'c','FontSize',15)
text(1.43,0.572,'d','FontSize',15)

stem(1,1,'k--')
%表示(0,1)与(1,1)之间有水平连线，以此类推画出其他水平横线
line([0 1],[1,1],'LineStyle','--','Color','k')
stem(1.6,0.625,'k--')
line([0 1.6],[0.625,0.625],'LineStyle','--','Color','k')
stem(1.4,0.572,'k--')
line([0 1.4],[0.572,0.572],'LineStyle','--','Color','k')
stem(2.24,0.358,'k--')
line([0 2.24],[0.358,0.358],'LineStyle','--','Color','k')

%贴刻度标签
text(0,1,'1','FontSize',13)
text(0,0.625,'0.625','FontSize',13)
text(0,0.358,'0.358','FontSize',13)
text(0,0.572,'0.572','FontSize',13)

text(1,0,'1','FontSize',13)
text(1.4,0,'1.4','FontSize',13)
text(1.6,0,'1.6','FontSize',13)
text(2.24,0,'2.24','FontSize',13)

%图例
legend("等温过程T_1/T_a=1","绝热过程","绝热过程","等温过程T_2/T_a=0.8")
title("卡诺循环图")
xlabel("体积V/V_a")
ylabel("压强P/P_a")

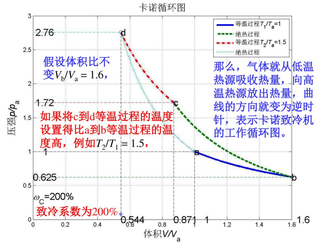

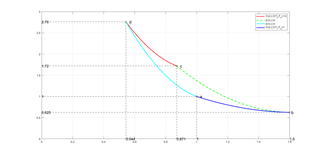

clc,clear,close all;
%a——c
x_dc = [0.544,0.6,0.871];
y_dc = [2.76,2.5,1.72];
x_cb = [0.871,0.95,1.6];
y_cb = [1.72,1.5,0.625];
%interp1三次样条插值
xq_dc = linspace(0.544,0.871,100);  %100个点密度
vq_dc = interp1(x_dc,y_dc,xq_dc,'spline');
plot(xq_dc,vq_dc,'r-.',"LineWidth",2);
hold on
xq_cb = linspace(0.871,1.6,100);
vq_cb = interp1(x_cb,y_cb,xq_cb,'spline');
plot(xq_cb,vq_cb,'g--',"LineWidth",2);
%c——a
x_da = [0.544,0.68,1];
y_da = [2.76,2,1];
x_ab = [1,1.2,1.6];
y_ab = [1,0.8,0.625];
%interp1三次样条插值
xq_da = linspace(0.544,1,100);  %100个点密度
vq_da = interp1(x_da,y_da,xq_da,'spline');
plot(xq_da,vq_da,'c-',"LineWidth",2);
xq_ab = linspace(1,1.6,100);
vq_ab = interp1(x_ab,y_ab,xq_ab,'spline');
plot(xq_ab,vq_ab,'b',"LineWidth",2);
grid on
axis([0 1.6 0 3])

%贴abdc标签
text(1.02,1,'a','FontSize',15)
text(1.61,0.625,'b','FontSize',15)
text(0.892,1.72,'c','FontSize',15)
text(0.564,2.76,'d','FontSize',15)

stem(0.544,2.76,'k--')
%表示(0,1)与(1,1)之间有水平连线，以此类推画出其他水平横线
line([0 0.544],[2.76,2.76],'LineStyle','--','Color','k')
stem(0.871,1.72,'k--')
line([0 0.871],[1.72,1.72],'LineStyle','--','Color','k')
stem(1,1,'k--')
line([0 1],[1,1],'LineStyle','--','Color','k')
stem(1.6,0.625,'k--')
line([0 1.6],[0.625,0.625],'LineStyle','--','Color','k')
%
%贴刻度标签
text(0,2.76,'2.76','FontSize',13)
text(0,1.72,'1.72','FontSize',13)
text(0,1,'1','FontSize',13)
text(0,0.625,'0.625','FontSize',13)

text(0.544,0,'0.544','FontSize',13)
text(0.871,0,'0.871','FontSize',13)
text(1,0,'1','FontSize',13)
text(1.6,0,'1.6','FontSize',13)

%图例
legend("等温过程T_2/T_a=1.5","绝热过程","绝热过程","等温过程T_1/T_a=1")
title("卡诺循环图")
xlabel("体积V/V_a")
ylabel("压强P/P_a")

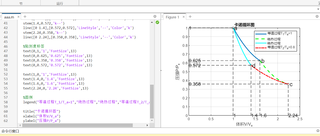

复制到网页版matlab直接运行就行：https://matlab.mathworks.com/
