python代码报错

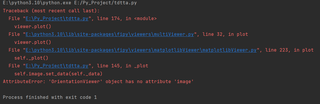

AttributeError: 'OrientationViewer' object has no attribute 'image'达到的结果
代码如下：
from fipy import CellVariable, Variable, ModularVariable, Grid2D, TransientTerm, DiffusionTerm, ImplicitSourceTerm, PowerLawConvectionTerm, MatplotlibViewer, Matplotlib2DGridViewer, MultiViewer
from fipy.tools import numerix
dx = dy = 0.025
if __name__ == "__main__":
nx = ny = 200
else:
nx = ny = 20
mesh = Grid2D(dx=dx, dy=dy, nx=nx, ny=ny)
dt = 5e-4
phase = CellVariable(name=r'$\phi$', mesh=mesh, hasOld=True)
dT = CellVariable(name=r'$\Delta T$', mesh=mesh, hasOld=True)
theta = ModularVariable(name=r'$\theta$', mesh=mesh, hasOld=True)
theta.value = -numerix.pi + 0.0001
DT = 2.25
q = Variable(0.)
T_0 = -0.1
heatEq = (TransientTerm(var=dT)
== DiffusionTerm(coeff=DT, var=dT)
+ TransientTerm(var=phase)
+ q * T_0 - ImplicitSourceTerm(coeff=q, var=dT))
alpha = 0.015
c = 0.02
N = 4.
psi = theta.arithmeticFaceValue + numerix.arctan2(phase.faceGrad[1],
phase.faceGrad[0])
Phi = numerix.tan(N * psi / 2)
PhiSq = Phi**2
beta = (1. - PhiSq) / (1. + PhiSq)
DbetaDpsi = -N * 2 * Phi / (1 + PhiSq)
Ddia = (1.+ c * beta)
Doff = c * DbetaDpsi
I0 = Variable(value=((1, 0), (0, 1)))
I1 = Variable(value=((0, -1), (1, 0)))
D = alpha**2 * Ddia * (Ddia * I0 + Doff * I1)
tau_phase = 3e-4
kappa1 = 0.9
kappa2 = 20.
epsilon = 0.008
s = 0.01
thetaMag = theta.grad.mag
phaseEq = (TransientTerm(coeff=tau_phase, var=phase)
== DiffusionTerm(coeff=D, var=phase)
+ ImplicitSourceTerm(coeff=((phase - 0.5 - kappa1 / numerix.pi * numerix.arctan(kappa2 * dT))
* (1 - phase)
- (2 * s + epsilon**2 * thetaMag) * thetaMag),
var=phase))
tau_theta = 3e-3
mu = 1e3
gamma = 1e3
thetaSmallValue = 1e-6
phaseMod = phase + ( phase < thetaSmallValue ) * thetaSmallValue
beta_theta = 1e5
expo = epsilon * beta_theta * theta.grad.mag
expo = (expo < 100.) * (expo - 100.) + 100.
Pfunc = 1. + numerix.exp(-expo) * (mu / epsilon - 1.)
gradMagTheta = theta.faceGrad.mag
eps = 1. / gamma / 10.
gradMagTheta += (gradMagTheta < eps) * eps
IGamma = (gradMagTheta > 1. / gamma) * (1 / gradMagTheta - gamma) + gamma
v_theta = phase.arithmeticFaceValue * (s * IGamma + epsilon**2)
D_theta = phase.arithmeticFaceValue**2 * (s * IGamma + epsilon**2)
thetaEq = (TransientTerm(coeff=tau_theta * phaseMod**2 * Pfunc, var=theta)
== DiffusionTerm(coeff=D_theta, var=theta)
+ PowerLawConvectionTerm(coeff=v_theta * (theta.faceGrad - theta.faceGradNoMod), var=phase))
x, y = mesh.cellCenters
numSeeds = 10
numerix.random.seed(12345)
for Cx, Cy, orientation in numerix.random.random([numSeeds, 3]):
radius = dx * 5.
seed = ((x - Cx * nx * dx)**2 + (y - Cy * ny * dy)**2) < radius**2
phase[seed] = 1.
theta[seed] = numerix.pi * (2 * orientation - 1)
dT.setValue(-0.5)
from builtins import zip
if __name__ == "__main__":
try:
class OrientationViewer(Matplotlib2DGridViewer):
def __init__(self, phase, orientation, title=None, limits={}, **kwlimits):
self.phase = phase
Matplotlib2DGridViewer.__init__(self, vars=(orientation,), title=title,
limits=limits, colorbar=None, **kwlimits)
# make room for non-existent colorbar
# stolen from matplotlib.colorbar.make_axes
# https://github.com/matplotlib/matplotlib/blob
# /ec1cd2567521c105a451ce15e06de10715f8b54d/lib
# /matplotlib/colorbar.py#L838
fraction = 0.15
pb = self.axes.get_position(original=True).frozen()
pad = 0.05
x1 = 1.0 - fraction
pb1, pbx, pbcb = pb.splitx(x1 - pad, x1)
panchor = (1.0, 0.5)
self.axes.set_position(pb1)
self.axes.set_anchor(panchor)
# make the gnomon
fig = self.axes.get_figure()
self.gnomon = fig.add_axes([0.85, 0.425, 0.15, 0.15], polar=True)
self.gnomon.set_thetagrids([180, 270, 0, 90],
[r"$\pm\pi$", r"$-\frac{\pi}{2}$", "$0$", r"$+\frac{\pi}{2}$"]
)
self.gnomon.set_theta_zero_location("N")
self.gnomon.set_theta_direction(-1)
self.gnomon.set_rgrids([1.], [""])
N = 100
theta = numerix.arange(-numerix.pi, numerix.pi, 2 * numerix.pi / N)
radii = numerix.ones((N,))
bars = self.gnomon.bar(theta, radii, width=2 * numerix.pi / N, bottom=0.0)
colors = self._orientation_and_phase_to_rgb(orientation=numerix.array([theta]), phase=1.)
for c, t, bar in zip(colors[0], theta, bars):
bar.set_facecolor(c)
bar.set_edgecolor(c)
def _reshape(self, var):
'''return values of var in an 2D array'''
return numerix.reshape(numerix.array(var),
var.mesh.shape[::-1])[::-1]
@staticmethod
def _orientation_and_phase_to_rgb(orientation, phase):
from matplotlib import colors
hsv = numerix.empty(orientation.shape + (3,))
hsv[..., 0] = (orientation / numerix.pi + 1) / 2.
hsv[..., 1] = 1.
hsv[..., 2] = phase
return colors.hsv_to_rgb(hsv)
@property
def _data(self):
'''convert phase and orientation to rgb image array
orientation (-pi, pi) -> hue (0, 1)
phase (0, 1) -> value (0, 1)
'''
orientation = self._reshape(self.vars[0])
phase = self._reshape(self.phase)
return self._orientation_and_phase_to_rgb(orientation, phase)
def _plot(self):
self.image.set_data(self._data)
from matplotlib import pyplot
pyplot.ion()
w, h = pyplot.figaspect(1.)
fig = pyplot.figure(figsize=(2 * w, h))
timer = fig.text(0.1, 0.9, "t = %.3f" % 0, fontsize=18)
viewer = MultiViewer(viewers=(MatplotlibViewer(vars=dT,
cmap=pyplot.cm.hot,
datamin=-0.5,
datamax=0.5,
axes=fig.add_subplot(121)),
OrientationViewer(phase=phase,
orientation=theta,
title=theta.name,
axes=fig.add_subplot(122))))
except ImportError:
viewer = MultiViewer(viewers=(Viewer(vars=dT,
datamin=-0.5,
datamax=0.5),
Viewer(vars=phase,
datamin=0.,
datamax=1.),
Viewer(vars=theta,
datamin=-numerix.pi,
datamax=numerix.pi)))
viewer.plot()
eq = thetaEq & phaseEq & heatEq
if __name__ == "__main__":
total_time = 2.
else:
total_time = dt * 10
elapsed = 0.
save_interval = 0.002
save_at = save_interval
while elapsed < total_time:
if elapsed > 0.3:
q.value = 100
phase.updateOld()
dT.updateOld()
theta.updateOld()
eq.solve(dt=dt)
elapsed += dt
if __name__ == "__main__" and elapsed >= save_at:
timer.set_text("t = %.3f" % elapsed)
viewer.plot()
save_at += save_interval
self.image没定义呀
你要先在init里设置self.image为你想要的类型，然后再在后面给它set值
OrientationViewer类没有image属性，所以报错了
