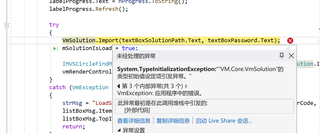

用VisionMaster4.1.0进行二次开发,加载方案时弹出如下错误:
public partial class Form1 : Form
{
bool mSolutionIsLoad = false; //true 代表方案加载成功,false 代表方案关闭
public Form1()
{
InitializeComponent();
}
/****************************************************************************
* @fn 选择方案路径
* @fn Select solution's path
****************************************************************************/
private void buttonChooseSoluPath_Click(object sender, EventArgs e)
{
OpenFileDialog openFileDialog = new OpenFileDialog();
openFileDialog.Filter = "VM Sol File|*.sol*";
DialogResult openFileRes = openFileDialog.ShowDialog();
if (DialogResult.OK == openFileRes)
{
textBoxSolutionPath.Text = openFileDialog.FileName;
}
}
/****************************************************************************
* @fn 加载方案
* @fn Load solution
****************************************************************************/
private void buttonLoadSolution_Click(object sender, EventArgs e)
{
string strMsg = null;
int nProgress = 0;
progressBarSaveAndLoad.Value = nProgress;
labelProgress.Text = nProgress.ToString();
labelProgress.Refresh();
try
{
VmSolution.Import(textBoxSolutionPath.Text, textBoxPassword.Text);
mSolutionIsLoad = true;
IMVSCircleFindModuTool circleFindModule = (IMVSCircleFindModuTool)VmSolution.Instance["流程1.圆查找1"];
vmRenderControl1.ModuleSource = circleFindModule;
}
catch (VmException ex)
{
strMsg = "LoadSolution failed. Error Code: " + Convert.ToString(ex.errorCode, 16);
listBoxMsg.Items.Add(strMsg);
listBoxMsg.TopIndex = listBoxMsg.Items.Count - 1;
return;
}
strMsg = "LoadSolution success";
listBoxMsg.Items.Add(strMsg);
listBoxMsg.TopIndex = listBoxMsg.Items.Count - 1;
nProgress = 100;
labelProgress.Text = nProgress.ToString();
labelProgress.Refresh();
progressBarSaveAndLoad.Value = Convert.ToInt32(nProgress);
}
下面是app.config的代码,百度了很多解决方法都是app.config里的名称有问题,但这个问题我没找出来。
<?xml version="1.0" encoding="utf-8"?>
<configuration>
<appSettings>
<!--启动服务形式(0代表默认系统服务, 1代表exe方式启动)-->
<add key="StartServerByExe" value="0"/>
<!--服务绝对路径,用于拉起服务(value为""时默认拉起系统服务,value为服务路径时为以进程方式启动)-->
<add key="ServerPath" value=""/>
<!--<add key="ServerPath" value="E:\Program Files\VisionMaster\VisionMaster4.1.0\Applications\Server\VisionMasterServer.exe"/>-->
<add key="ClientSettingsProvider.ServiceUri" value=""/>
</appSettings>
<startup>
<supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.8"/>
</startup>
<runtime>
<assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
<probing privatePath="myLibs;myLibs\Newtonsoft.Json;3rdLib;3rdLib\System;3rdLib\MsgPack;3rdLib\Log4Net;3rdLib\ICSharpCode;3rdLib\OpenCv;GateWay;Module(sp)\x64;Module(sp)\x64\Collection\ImageSourceModule;Module(sp)\x64\Location\IMVSCircleFindModu"/>
<dependentAssembly>
<assemblyIdentity name="System.Threading.Tasks.Extensions" publicKeyToken="cc7b13ffcd2ddd51" culture="neutral"/>
<bindingRedirect oldVersion="0.0.0.0-4.2.0.1" newVersion="4.2.0.1"/>
</dependentAssembly>
</assemblyBinding>
</runtime>
<system.web>
<membership defaultProvider="ClientAuthenticationMembershipProvider">
<providers>
<add name="ClientAuthenticationMembershipProvider" type="System.Web.ClientServices.Providers.ClientFormsAuthenticationMembershipProvider, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" serviceUri=""/>
</providers>
</membership>
<roleManager defaultProvider="ClientRoleProvider" enabled="true">
<providers>
<add name="ClientRoleProvider" type="System.Web.ClientServices.Providers.ClientRoleProvider, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" serviceUri="" cacheTimeout="86400"/>
</providers>
</roleManager>
</system.web>
</configuration>

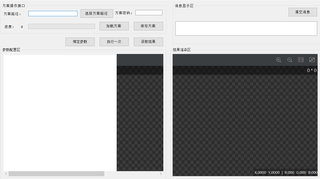

Form窗口可以运行,选择方案路径也可以选择,但到了加载方案时就报错
检查了很多次引用的dll和配置环境,都没找到问题
大手子们帮忙看看,谢谢!
