为什么echarts多个点在同一竖直线上tooltip只显示最上面那个点的提示框
先来看看问题长什么样子？

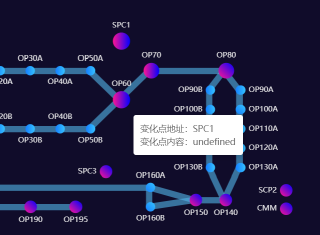

我鼠标在OP60，显示的却是最上面的那个SPC1的提示框；
上配置项代码：
optionchartditu = {
title: {
text: '变化点laylout图',
textStyle: {
color: 'white',
fontSize: 20,
},
x: 'center',
top: 10,
},
//不设置背景颜色就是透明色
//backgroundColor: '#000',
xAxis: {
show: false,
min: 0,
max: 1200,
type: "value",
//开启x轴坐标
axisPointer: {
type: 'none'
},
},
yAxis: {
show: false,
min: 0,
max: 1200,
type: "value",
//开启y轴坐标
axisPointer: {
type: 'none'
},
},
tooltip: {
show:true,
trigger:'axis',
formatter(params) {
const item = params[0];
return `
变化点地址：${item['data'].name}</br>
变化点内容：${item['data'].bianhua}
`;
},},
// legend: {
// show: false
// },
series: [
{
type: 'graph',
zlevel: 5,
draggable: false,
coordinateSystem: 'cartesian2d', //使用二维的直角坐标系（也称笛卡尔坐标系）
// edgeSymbolSize: [0, 8], //边两端的标记大小，可以是一个数组分别指定两端，也可以是单个统一指定
// edgeLabel: {
// normal: {
// textStyle: {
// fontSize: 60
// }
// }
// },
symbol: 'rect',
symbolOffset: ['15%', 0],
label: {
normal: {
show: true,
},
},
data: datawe,
}
}
是否方便把数据发一下呢？我这边调试看一下。
var chartDomditu = document.getElementById('chartditu');
var myChartchartditu = echarts.init(chartDomditu,'dark');
var optionchartditu;
var datawe = [
{
name: '缸盖模块三',
symbolSize: 0.1,
value: [5, 1000],
x: 800,
y: 400,
fixed: true,
// draggable: false,
category: 1,
label: {
color: '#35c2ff',
position: 'bottom',
fontSize: 24,
fontWeight: 1000,
},
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP05',
symbol: 'circle',
symbolSize: [25, 25],
value: [5, 600],
x: 800,
y: 400,
fixed: true,
// draggable: false,
category: 1,
label: {
color: '#FFF',
position: 'bottom',
},
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP10A',
x: 400,
y: 400,
value: [100, 750],
fixed: true,
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#FFF',
position: 'top',
},
category: 1,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP10B',
x: 400,
y: 400,
value: [100, 450],
fixed: true,
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#FFF',
position: 'bottom',
},
category: 1,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP20A',
x: 1000,
y: 1000,
value: [200, 750],
fixed: true,
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#fff',
position: 'bottom',
},
category: 1,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP20B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'top',
},
value: [200, 450],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP30A',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'top',
},
value: [300, 750],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP30B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'bottom',
},
value: [300, 450],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP40A',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'bottom',
},
value: [400, 750],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP40B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'top',
},
value: [400, 450],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP50A',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'top',
},
value: [500, 750],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP50B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'bottom',
},
value: [500, 450],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'SPC1',
symbol: 'circle',
symbolSize: [25, 25],
label: {
color: '#efefef',
position: 'top',
},
value: [600, 900],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP60',
symbol: 'circle',
symbolSize: [25, 25],
label: {
color: '#efefef',
position: 'top',
},
value: [600, 600],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP70',
symbol: 'circle',
symbolSize: [25, 25],
label: {
color: '#efefef',
position: 'top',
},
value: [700, 750],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP80',
symbol: 'circle',
symbolSize: [25, 25],
label: {
color: '#efefef',
position: 'top',
},
value: [950, 750],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP90B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'left',
},
value: [900, 650],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP90A',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'right',
},
value: [1000, 650],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP100B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'left',
},
value: [900, 550],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP100A',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'right',
},
value: [1000, 550 ],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP110B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'left',
},
value: [900, 450],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP110A',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'right',
},
value: [1000, 450],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP120B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'left',
},
value: [900, 350],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP120A',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'right',
},
value: [1000, 350],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP130B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'left',
},
value: [900, 250],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP130A',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'right',
},
value: [1000, 250],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'SCP2',
symbol: 'circle',
symbolSize: [20, 20],
label: {
color: '#efefef',
position: 'left',
},
value: [1150,135],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'CMM',
symbol: 'circle',
symbolSize: [20, 20],
label: {
color: '#efefef',
position: 'left',
},
value: [1150,40],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP140',
symbol: 'circle',
symbolSize: [20, 20],
label: {
color: '#efefef',
position: 'bottom',
},
value: [950,85],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: "OP150",
symbol: 'circle',
bianhua:"",
symbolSize: [20, 20],
label: {
color: '#efefef',
position: 'bottom',
},
value: [850,85],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP160A',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'top',
},
value: [700,150],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP160B',
symbol: 'circle',
symbolSize: [15, 15],
label: {
color: '#efefef',
position: 'bottom',
},
value: [700,50],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#157eff',
},
{
offset: 1,
color: '#35c2ff',
},
]),
},
},
},
{
name: 'OP170',
symbol: 'circle',
symbolSize: [20, 20],
label: {
color: '#efefef',
position: 'top',
},
value: [150,150],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP180',
symbol: 'circle',
symbolSize: [20, 20],
label: {
color: '#efefef',
position: 'bottom',
},
value: [150,50],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP190',
symbol: 'circle',
symbolSize: [20, 20],
label: {
color: '#efefef',
position: 'bottom',
},
value: [300,50],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'OP195',
symbol: 'circle',
symbolSize: [20, 20],
label: {
color: '#efefef',
position: 'bottom',
},
value: [450,50],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
{
name: 'SPC3',
symbol: 'circle',
symbolSize: [20, 20],
label: {
color: '#efefef',
position: 'left',
},
value: [550,230],
x: 1000,
y: 1000,
fixed: true,
category: 2,
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 1, 1, 0, [
{
offset: 0,
color: '#FF1493',
},
{
offset: 1,
color: '#0000FF',
},
]),
},
},
},
];
$.get("/bianhuadian",function (datapt){
var maodianm3=datapt.maodianm3;//['缸盖模块三OP150凸轮轴盖安装工位开展外包培训学习柔性。', '增加封板，避免铝屑回流进缸盖水腔', 'M3OP130工位增压机型增加冲洗程序', 'T21315寿命提升', 'T21382寿命提升']
var contdatam3=datapt.contdatam3;//['OP150', 'OP30B', 'OP130B', 'OP120', 'OP110A']
for (var i=0;i<maodianm3.length;i++){
for(let item of datawe){
if (maodianm3[i]===item.name){item["bianhua"]=contdatam3[i];}
}
}
optionchartditu = {
title: {
text: '变化点laylout图',
textStyle: {
color: 'white',
fontSize: 20,
},
x: 'center',
top: 10,
},
//不设置背景颜色就是透明色
//backgroundColor: '#000',
xAxis: {
show: false,
min: 0,
max: 1200,
type: "value",
//开启x轴坐标
},
yAxis: {
show: false,
min: 0,
max: 1200,
type: "value",
//开启y轴坐标
axisPointer: {
type: 'none'
},
},
tooltip: {
show:true,
trigger:'axis',
triggerOn:"mousemove",
showDelay:0,
hideDelay:100,
transitionDuration:0.4,
formatter(params) {
const item = params[0];
return `
变化点地址：${item['data'].name}</br>
变化点内容：${item['data'].bianhua}
`;
},},
// legend: {
// show: false
// },
series: [
{
type: 'graph',
zlevel: 5,
draggable: false,
coordinateSystem: 'cartesian2d', //使用二维的直角坐标系（也称笛卡尔坐标系）
// edgeSymbolSize: [0, 8], //边两端的标记大小，可以是一个数组分别指定两端，也可以是单个统一指定
// edgeLabel: {
// normal: {
// textStyle: {
// fontSize: 60
// }
// }
// },
symbol: 'rect',
symbolOffset: ['15%', 0],
label: {
normal: {
show: true,
},
},
data: datawe,
links: [
{
source: 'OP05',
target: 'OP10A',
// lineStyle: {
// normal: {
// color: "#12b5d0",
//
// }
// }
},
{
source: 'OP05',
target: 'OP10B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP10A',
target: 'OP20A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP10B',
target: 'OP20B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP20A',
target: 'OP30A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP20B',
target: 'OP30B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP30A',
target: 'OP40A',
// lineStyle: {
// normal: {
// color: "#12b5d0",
//
// }
// }
},
{
source: 'OP30B',
target: 'OP40B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP40A',
target: 'OP50A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP40B',
target: 'OP50B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP50A',
target: 'OP60',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP50B',
target: 'OP60',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP60',
target: 'OP70',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP70',
target: 'OP80',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP80',
target: 'OP90A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP80',
target: 'OP90B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP90A',
target: 'OP100A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP90B',
target: 'OP100B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP100A',
target: 'OP110A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP110A',
target: 'OP120A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP120A',
target: 'OP130A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP100B',
target: 'OP110B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
//地铁二号线连接
{
source: 'OP110B',
target: 'OP120B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP120B',
target: 'OP130B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP130A',
target: 'OP140',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP130B',
target: 'OP140',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP140',
target: 'OP150',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP150',
target: 'OP160A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP150',
target: 'OP160B',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP160A',
target: 'OP170',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP160B',
target: 'OP160A',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP170',
target: 'OP180',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP180',
target: 'OP190',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
{
source: 'OP190',
target: 'OP195',
lineStyle: {
normal: {
// color: "#12b5d0",
},
},
},
],
lineStyle: {
normal: {
opacity: 0.6, //线条透明度
color: '#53B5EA',
curveness: 0, //站点间连线曲度，0表示直线
width: 10, //线条宽度
},
},
},
/** {
type: 'lines',
coordinateSystem: 'cartesian2d',
z: 1,
zlevel: 7,
animation: true,
effect: {
show: true,
period: 5,
trailLength: 0.71,
symbolSize: 14,
symbol: 'circle',
loop: true,
color: 'yellow',
// color: "rgba(55,155,255,0.5)"
},
lineStyle: {
normal: {
// color: "green",
width: 0,
curveness: 0, //动画线路的曲度
},
},
data: [
{
//一号线
coords: [
[5, 600],
[100, 750],
],
},
{
//一号线
coords: [
[5, 600],
[100, 450],
],
},
{
//一号线
coords: [
[100, 750],
[500,750]
],
},
{
//一号线
coords: [
[100, 450],
[500,450]
],
},
{
//一号线
coords: [
[500, 750],
[600, 600],
],
},
{
//一号线
coords: [
[500, 450],
[600, 600],
],
},
{
//一号线
coords: [
[600,600],
[700, 750],
],
},
{
//一号线
coords: [
[700, 750],
[950, 750],
],
},
{
//一号线
coords: [
[950, 750],
[900, 650],
],
},
{
//一号线
coords: [
[950, 750],
[1000, 650],
],
},
{
//一号线
coords: [
[900, 650],
[900,250],
],
},
{
//一号线
coords: [
[1000, 650],
[1000,250],
],
},
{
//一号线
coords: [
[1000,250],
[950,80],
],
},
{
//一号线
coords: [
[900,250],
[950,80],
],
},
{
//一号线
coords: [
[950,80],
[850,80],
],
},
{
//一号线
coords: [
[850,80],
[700,150],
],
},
{
//一号线
coords: [
[850,80],
[700,50],
],
},
{
//一号线
coords: [
[700,150],
[150,150]
],
},
{
//一号线
coords: [
[150,150],[150,50],
],
},
{
//一号线
coords: [
[150,50],
[450,50]
],
},
//{
//二号线
// coords: [
// [680, 50],
// [680, 1050],
// ],
//},
// { //三号线
// coords: [
// [280, 350],
// [1040, 1080]
// ]
// }
],
},**/
],
};
optionchartditu&& myChartchartditu.setOption(optionchartditu);
})
您好，我是有问必答小助手，您的问题已经有小伙伴解答了，您看下是否解决，可以追评进行沟通哦~
如果有您比较满意的答案 / 帮您提供解决思路的答案，可以点击【采纳】按钮，给回答的小伙伴一些鼓励哦～～
ps:问答VIP仅需29元，即可享受5次/月 有问必答服务，了解详情>>>https://vip.csdn.net/askvip?utm_source=1146287632
