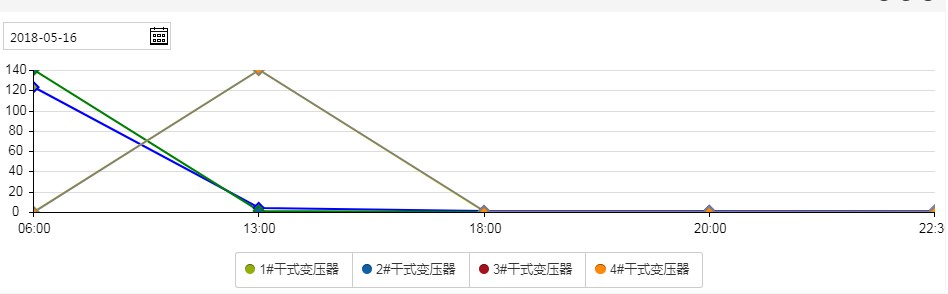

请问如何使用EXT JS查询数据库动态生成如下图的二维折线图?
数据库查询只给我返回三个字段,如下图所示:
网上的自定义插件如下图:
/**
*
* @author LuoYu
* @date 2012-12-04
* 基于EXT-3.3.0开发的可以添加动态折线数的EXT.chart.DynamicLineChart插件
* 初使化方法可以通过 new Ext.chart.DynamicLineChart(),
* 也可以通过xtype的形式,xtype:dynamiclinechart
*
*/
Ext.chart.DynamicLineChart = Ext.extend(Ext.chart.LineChart,{
initComponent : function() {
var store = new Ext.data.Store({
url : this.loadUrl,
reader : new Ext.data.JsonReader()
});
var config = {
store : store,
xField: this.xField,
series : new Array(),
extraStyle:{
legend:{
display: 'bottom',
padding: 5,
font:{
family: 'Tahoma',
size: 13
}
}
}
};
Ext.apply(this, config);
Ext.apply(this.initialConfig, config);
Ext.chart.DynamicLineChart.superclass.initComponent.apply(this, arguments);
},
onRender : function() {
Ext.chart.DynamicLineChart.superclass.onRender.apply(this,arguments);
this.store.on('load', function() {
if (typeof (this.store.reader.jsonData.series) === 'object') {
var series = [];
Ext.each(this.store.reader.jsonData.series, function(serie) {
series.push(serie);
});
this.setSeries(series);
}
}, this);
this.store.load();
}
});
Ext.reg("dynamiclinechart", Ext.chart.DynamicLineChart);
网上的JSON返回格式如下图:
{
'metaData':
{
'root':'records', //这个record和下面那个record保持一致，名字可以随便取
'fields':[
{'name':'name','type':'string'},
{'name':'views','type':'string'},
{'name':'visits','type':'string'}
]
},
'series':
[
{'type': 'line',displayName: 'Good',yField: 'views'},
{'type': 'line',displayName: 'Good',yField: 'visits'}
],
'records': //对应上面的record
[
{name:'Jul 07', visits: 245000, views: 300000},
{name:'Aug 07', visits: 240000, views: 350000},
{name:'Sep 07', visits: 355000, views: 400000},
{name:'Oct 07', visits: 375000, views: 420000},
{name:'Nov 07', visits: 490000, views: 450000},
{name:'Dec 07', visits: 495000, views: 580000},
{name:'Jan 08', visits: 520000, views: 600000},
{name:'Feb 08', visits: 620000, views: 750000}
]
}
你的值相差太大了，我这里大概做了个demo，都连一起了。。数据要处理成{x:'x列值',z中存在的名称:'对应的y值'.....}此类数据加载就行了
分为2部分，首先你要用jsp做一个服务器端，查询数据库，返回json，然后就是加载返回的json
这个可以参考：http://luoyu-ds.iteye.com/blog/1741271
这是返回的JSON格式样例
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Line Chart</title>
<link rel="stylesheet" type="text/css" href="../../resources/css/ext-all.css" />
<script type="text/javascript" src="../../ext-all.js"></script>
<script>
Ext.onReady(function () {
////////////////////////////////////////////数据，服务器生成此类数据就行，和你数据库结构一样，直接序列化为json格式字符串复制给给对应的变量
data = [{ x: '06:00', y: 123, z: '1#干式变压器' },
{ x: '13:00', y: 4, z: '1#干式变压器' },
{ x: '18:00', y: 0.99, z: '1#干式变压器' },
{ x: '20:00', y: 0.99, z: '1#干式变压器' },
{ x: '22:30', y: 0.99, z: '1#干式变压器' },
{ x: '06:00', y: 543, z: '2#干式变压器' },
{ x: '13:00', y: 5, z: '2#干式变压器' },
{ x: '18:00', y: 0.97, z: '2#干式变压器' },
{ x: '20:00', y: 0.96, z: '2#干式变压器' },
{ x: '22:30', y: 0.97, z: '2#干式变压器' },
{ x: '06:00', y: 0.97, z: '3#干式变压器' },
{ x: '13:00', y: 7, z: '3#干式变压器' },
{ x: '18:00', y: 0.97, z: '3#干式变压器' },
{ x: '20:00', y: 0.96, z: '3#干式变压器' },
{ x: '22:30', y: 0.97, z: '3#干式变压器' }]
////////////////////////////////////////////
//数据转换 z/y数据整合
fields = ['x']//store的列
series = []//chart的series配置
mydata = []//处理后store加载的值，和fields对应，变为[{x:'时间',z的值:'对应的y'...更多z的值对应y}]这种格式
maxLineName = ''; maxY = 0;//记录y最大值，以便获取最大值的z值作为chart的y轴
kvZ = {}//记录fields是否已经压入过唯一的z值
var arrColor = ['red', 'blue', 'green', 'yellow', 'gray']//每条轴的颜色，如果很多继续扩展这个数组，要不超过5条颜色会重复
for (var i = 0; i < data.length; i++) {
lineName = data[i].z;
if (maxLineName == '') { maxLineName = lineName; maxY = data[i].y }
else if (data[i].y > maxY) { maxLineName = lineName; maxY = data[i].y }
if (!kvZ[lineName]) {
kvZ[lineName] = true;
color = arrColor[fields.length%arrColor.length]
fields.push(lineName)
series.push((function (lineName) {
return {
type: 'line',
axis: 'left',
xField: 'x',
yField: lineName,
style: { fill: color, stroke: color, 'stroke-width': 3 },
markerConfig: { type: 'circle', size: 4, radius: 4, 'stroke-width': 0, fill: color, stroke: color },
tips: {
trackMouse: true,
width: 80,
height: 40,
renderer: function (storeItem, item) {
console.log(lineName)
this.setTitle(storeItem.get('x'));
this.update(storeItem.get(lineName));
}
}
}
})(lineName));
}
}
kvT = {}
function fillExist(arr, x, v, attr) {
for (var i = 0; i < arr.length; i++) if (arr[i].x == x) { arr[i][attr] = v; break; }
}
for (var i = 0; i < data.length; i++) {
x = data[i].x
if (kvT[x]) fillExist(mydata, x, data[i].y, data[i].z);
else {
item = { x: data[i].x };
for (attr in kvZ) item[attr] = attr == data[i].z ? data[i].y : 0
mydata.push(item)
kvT[x] = true;
}
}
mystore = Ext.create('Ext.data.JsonStore', {
fields: fields,
data: mydata
});
Ext.create('Ext.chart.Chart', {
renderTo: document.body,
xtype: 'chart',
legend: { position: 'right' },
animate: false,
store: mystore, height: 300, width: 600,
insetPadding: 30,
axes: [
{ type: 'Numeric', minimum: 0, position: 'left', fields: [maxLineName], title: true, grid: true },
{ type: 'Category', position: 'bottom', fields: ['x'], title: true }],
series: series
});
})
</script>
</head>
<body id="docbody">
</body>
</html>
你好,这是所有的JS代码,ajax请求数据库返回数据跟你的格式是一样的,但是页面出现这个错误,如下图,:
错误对应到的是我的这一行,请问您知道是哪里出问题了吗....:
var powerStore = Ext.create('Ext.data.JsonStore', {
fields: ['x','y','z'],
autoLoad: false,
proxy: {
type: 'ajax',
url: Eap.contextPath + '/eap/scripts/run-script/smartassets-index-Power.gson',
reader: {
type: 'json',
root: 'models'
}
}
});
var fields = ['x'];
var series = []; //轴线配置
var mydata = []; //存放整理后的Store
var maxLineName = ''; //记录Z最大值
var maxY = 0; //记录y最大值，以便获取最大值的z值作为chart的y轴
var kvZ = {}; //记录fields是否已经压入过唯一的z值
var arrColor = ['red', 'blue', 'green', 'yellow', 'gray']; //每条轴线的颜色，如果很多就继续扩展这个数组，不然超过5条,颜色会重复
powerStore.load({
scope: this,
callback: function(records, operation, success) {
for (var i = 0; i < records.length; i++) {
lineName = records[i].get('z');
if (maxLineName == '') {
maxLineName = lineName;
maxY = records[i].get('y');
}
if (!kvZ[lineName]) {
kvZ[lineName] = true;
color = arrColor[fields.length%arrColor.length]
fields.push(lineName)
series.push((function (lineName) {
return {
type: 'line',
axis: 'left',
xField: 'x',
yField: lineName,
style: { fill: color, stroke: color, 'stroke-width': 3 },
markerConfig: { type: 'circle', size: 4, radius: 4, 'stroke-width': 0, fill: color, stroke: color },
tips: {
trackMouse: true,
width: 80,
height: 40,
renderer: function (storeItem, item) {
this.setTitle(storeItem.get('x'));
this.update(storeItem.get(lineName));
}
}
}
})(lineName));
}
}
kvT = {}
function fillExist(arr, x, v, attr) {
for (var i = 0; i < arr.length; i++) if (arr[i].x == x) {
arr[i][attr] = v;
break;
}
}
for (var i = 0; i < records.length; i++) {
x = records[i].get('x')
if(kvT[x]){
fillExist(mydata, x, records[i].get('y'), records[i].get('z'));
}
else {
item = { x: records[i].get('x') };
for (attr in kvZ) item[attr] = attr == records[i].get('z') ? records[i].get('y') : 0
mydata.push(item)
kvT[x] = true;
}
}
}
});
console.log(fields)
console.log(mydata)
var newStore = Ext.create('Ext.data.JsonStore', {
fields: fields,
data: mydata
});
var powerPortlet = Ext.create({
legend: { position: 'right' },
xtype: 'cartesian',
width: 300,
height: 250,
store: newStore,
axes: [
{ type: 'Numeric', minimum: 0, position: 'left', fields: [maxLineName], title: true, grid: true },
{ type: 'Category', position: 'bottom', fields: ['x'], title: true }],
series: series
});
var powerPanel = Ext.create('Ext.panel.Panel', {
id: 'powerPortlet',
multiSelect: true,
layout: 'fit',
border: 0,
items:[powerPortlet],
viewConfig: {
stripeRows: true,
enableTextSelection: true
},
refreshPortlet: function() {
newStore.load();
}
数据格式如图....
加上一个日期过滤条件,数据就对应不上了......
完整JS代码如下图:
var powerStore = Ext.create('Ext.data.JsonStore', {
fields: ['x','y','z'],
autoLoad: false,
proxy: {
type: 'ajax',
url: Eap.contextPath + '/eap/scripts/run-script/smartassets-index-Power.gson',
reader: {
type: 'json',
root: 'models'
}
}
});
var DatePower;
var newStore;
var powerCart;
var fields = ['x'];
var series = []; //轴线配置
var mydata = []; //存放整理后的Store
var maxLineName = ''; //记录Z最大值
var maxY = 0; //记录y最大值，以便获取最大值的z值作为chart的y轴
var kvZ = {}; //记录fields是否已经压入过唯一的z值
var arrColor = ['red', 'blue', 'green', 'yellow', 'gray']; //每条轴线的颜色，如果很多就继续扩展这个数组，不然超过5条,颜色会重复
powerStore.load({
scope: this,
callback: function(records, operation, success) {
for (var i = 0; i < records.length; i++) {
lineName = records[i].get('z');
if (maxLineName == '') {
maxLineName = lineName;
maxY = records[i].get('y');
}
if (!kvZ[lineName]) {
kvZ[lineName] = true;
color = arrColor[fields.length%arrColor.length]
fields.push(lineName)
series.push((function (lineName) {
return {
type: 'line',
axis: 'left',
xField: 'x',
yField: lineName,
style: { stroke: color, 'stroke-width': 2 },
marker: {
type: 'diamond',
animation: {
duration: 200
}
},
highlight: {
scaling: 1,
rotationRads: Math.PI / 4
},
tooltip: {
trackMouse: true,
renderer: function (tooltip, record, item) {
var store = record.store
tooltip.setHtml('<div style="text-align: center; font-weight: bold">' + record.get(lineName)*100 + '%</div>');
}
}
}
})(lineName));
}
}
//遍历方法
kvT = {}
function fillExist(arr, x, v, attr) {
for (var i = 0; i < arr.length; i++) if (arr[i].x == x) {
arr[i][attr] = v;
break;
}
}
//遍历后台传过来的元store数组 获取需要的数据格式放入mydata
for (var i = 0; i < records.length; i++) {
x = records[i].get('x')
if(kvT[x]){
fillExist(mydata, x, records[i].get('y'), records[i].get('z'));
}
else {
item = { x: records[i].get('x') };
for (attr in kvZ) item[attr] = attr == records[i].get('z') ? records[i].get('y') : 0
mydata.push(item)
kvT[x] = true;
}
}
//创建一个新的store
newStore = Ext.create('Ext.data.JsonStore', {
fields: fields,
data: mydata
});
//折线坐标图
powerCart = Ext.create({
//renderTo: document.body,
legend: { position: 'right' },
xtype: 'cartesian',
width: 400,
height: 300,
store: newStore,
axes: [{
type: 'numeric',
minimum: 0,
position: 'left',
fields: [maxLineName],
title: true,
grid: true
},{
type: 'category',
position: 'bottom',
fields: ['x'],
title: true
}],
series: series
});
DatePower = new Ext.form.DateField({
name : 'DatePower',
editable:true,
Width : 100,
format : 'Y-m-d',
emptyText : '年/月/日',
id : 'DatePower',
listeners: {
change:function(me, newValue, oldValue, eOpts){
powerStore.removeAll();
powerStore.proxy.extraParams = {};
powerStore.proxy.extraParams['bydate'] = [Ext.Date.format(newValue,'Y-m-d')];
powerStore.load();
}
}
})
toolbarPow.add(DatePower);
powerPanel.remove(powerCart);
powerPanel.add(powerCart);
}
});
var toolbarPow = Ext.create("Ext.Toolbar", {
width: 200,
items: []
});
var powerPanel = Ext.create('Ext.panel.Panel', {
id: 'powerPortlet',
multiSelect: true,
layout: {
type:'vbox',
align: 'stretch'
},
layout: 'fit',
border: 0,
items:[],
tbar:toolbarPow,
viewConfig: {
stripeRows: true,
enableTextSelection: true
},
refreshPortlet: function() {
powerStore.reload();
}
});
我现在加了个日期选择条件,返回的数据当然是不一样的,但是我的折线要怎么才能对应上呢?

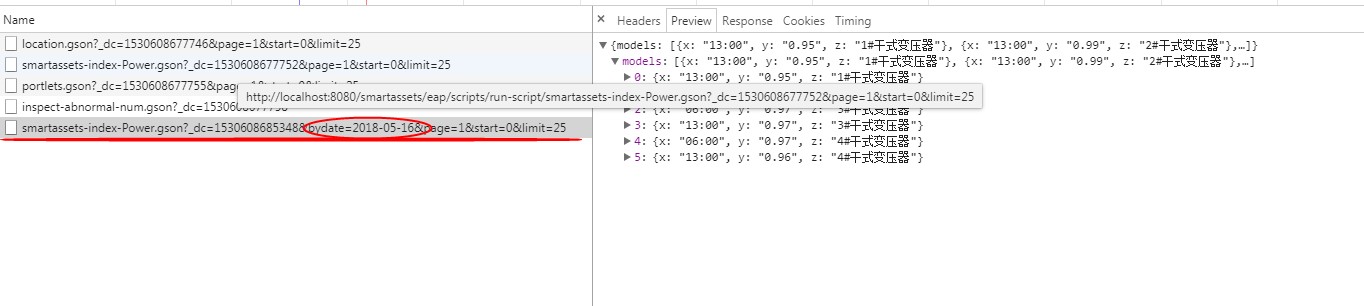

最新截图:
问题就出在这里,通过调试发现records 是最新的,但是mydata还是之前的.......
