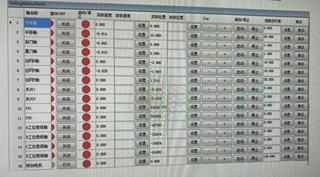

图上这种用winform中什么控件可以组合出来

图上这种用winform中什么控件可以组合出来,大的框架是什么控件可以实现,用winform自带控件可以实现吗


DataGridView是可以实现的
了解一下列的类型
例如
按钮:DataGridViewButtonColumn
复选框:DataGridViewCheckBoxColumn
图片:DataGridViewImageColumn
文本框:DataGridViewTextBoxColumn
跟据你上面的图片 只需要结合DataGridViewButtonColumn 、DataGridViewImageColumn、DataGridViewTextBoxColumn
然后实现DataGridView的单击事件,通过判断单击的行、列 即可知道单击的实际单元格然后通过单元格来实现相关逻辑就行了

好像就是DataGridView
不过你可以找找C#的DevExpress插件。这个支持很多组件,自定义和个性化。

【以下回答由 GPT 生成】

问题标题: 如何用WinForm中的控件组合实现图中所示界面?

问题描述: 我想在WinForm中实现图中所示的界面,需要用到哪些控件来组合实现?大的框架是哪种控件?能否使用WinForm自带的控件实现?

问题标签: .net, WinForm, 控件组合, 界面设计


解决方案:

要实现图中所示界面,可以考虑使用以下控件组合:

  1. 主窗体 (Form):作为整个界面的框架,包含其他控件。

  2. 左侧的导航栏:可以使用 Panel 控件,并将其放置在主窗体的左侧。导航栏中的每个选项可以使用 Button 控件实现。

  3. 右侧的内容区域:可以使用 Panel 控件,并将其放置在主窗体的右侧。在内容区域中显示的内容可以是其他控件或自定义的用户控件。

  4. 顶部的标题栏:可以使用 Label 控件实现,将其放置在主窗体的顶部。

  5. 底部的状态栏:可以使用 Label 控件实现,将其放置在主窗体的底部。

  6. 内容显示区域:可以根据需要选择合适的控件来显示内容,如 TextBox、ListView、DataGridView 等。

以下是一个示例代码片段,展示了如何使用 WinForm 自带的控件组合实现这个界面:

using System;
using System.Windows.Forms;

namespace WinFormExample
{
    public partial class MainForm : Form
    {
        private Panel navigationPanel;
        private Button homeButton;
        private Button settingsButton;

        private Panel contentPanel;
        private TextBox contentTextBox;

        private Label titleLabel;
        private Label statusLabel;

        public MainForm()
        {
            InitializeComponent();

            navigationPanel = new Panel();
            navigationPanel.Location = new Point(10, 10);
            navigationPanel.Size = new Size(150, this.ClientSize.Height - 20);
            this.Controls.Add(navigationPanel);

            homeButton = new Button();
            homeButton.Location = new Point(10, 10);
            homeButton.Size = new Size(130, 30);
            homeButton.Text = "Home";
            navigationPanel.Controls.Add(homeButton);

            settingsButton = new Button();
            settingsButton.Location = new Point(10, 50);
            settingsButton.Size = new Size(130, 30);
            settingsButton.Text = "Settings";
            navigationPanel.Controls.Add(settingsButton);

            contentPanel = new Panel();
            contentPanel.Location = new Point(170, 10);
            contentPanel.Size = new Size(this.ClientSize.Width - 190, this.ClientSize.Height - 20);
            this.Controls.Add(contentPanel);

            contentTextBox = new TextBox();
            contentTextBox.Multiline = true;
            contentTextBox.ScrollBars = ScrollBars.Vertical;
            contentTextBox.Dock = DockStyle.Fill;
            contentPanel.Controls.Add(contentTextBox);

            titleLabel = new Label();
            titleLabel.Location = new Point(10, 10);
            titleLabel.Size = new Size(this.ClientSize.Width - 20, 30);
            titleLabel.Text = "My App";
            this.Controls.Add(titleLabel);

            statusLabel = new Label();
            statusLabel.Location = new Point(10, this.ClientSize.Height - 40);
            statusLabel.Size = new Size(this.ClientSize.Width - 20, 30);
            statusLabel.Text = "Ready";
            this.Controls.Add(statusLabel);
        }

        // 主窗体的其他事件和方法...
    }
}

这个示例代码片段中,创建了一个名为 MainForm 的类,继承自 Form,并在构造函数中创建了各个控件,并将它们添加到主窗体中。根据需求,可以进一步完善窗体的其他事件和方法。

请注意,这只是一个简单的示例,你可以根据实际需求进行修改和扩展。
