请问这个程序为什么在mplab里运行不了

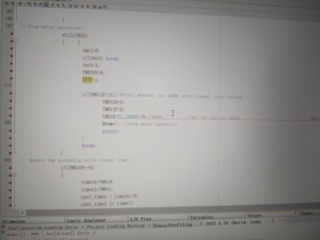

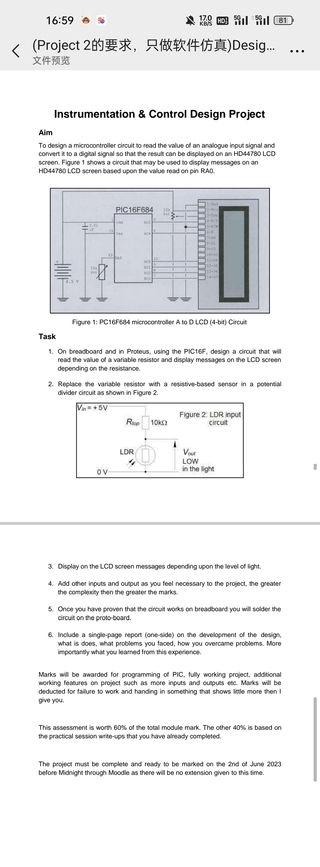

请问各位为什么一直报错，需要软件设置哪里或者程序改哪里吗，下面第三张图是要求
#include <pic.h>
#include <stdlib.h>
#include <string.h>
#include <stdio.h>
#define _XTAL_FREQ 8000000
int i, j, k, n;
const char TopMessage[] = "Brillancy ";
const char TopMessage1[] = "Dusky";
const char TopMessage2[] = "Dim ";
char BotMessage[10];
#define E RC4
#define RS RC5
#define Buzzer RA2
#define HIGH 1
#define LOW 0
#define DN RA5 //Motor rise 2 DN
#define UP RA0 //Motor decline 13 UP
#define MOTA RC5 //Motor Forward 5
#define MOTB RC4 //Motor Reversal 6
__CONFIG(0x3004);//(0X30C4);
#define T0_40MS 100 // 定义 TMR0 延时10MS 的时间常数
#define T1_100MS 40536
const int Twentyms = 1250;
const int Fivems = 300;
const int TwoHundredus = 10;
int ADCState = 0;
int ADCValue = 0;
int Dlay = 63;
int a;
int result;
LCDWrite(int LCDData, int RSValue)
{
PORTC = (LCDData >> 4) & 0x0F;
RS = RSValue;
E = 1; E = 0;
PORTC = LCDData & 0x0F;
RS = RSValue;
E = 1; E = 0;
if ((0 == (LCDData & 0xFC)) && (0 == RSValue))
n = Fivems;
else
n = TwoHundredus;
for (k = 0; k < n; k++);
}
bit rise; //Reverse flag bit
bit tmrl; //Reverse flag bit
bit tmrh; //Reverse flag bit
unsigned int num; //Total pulse number
unsigned int cnnt; //pulse counting
unsigned int timerl; //TMR1Pulse rises along the time
unsigned int timerh; //TMR1Pulse drops along the time
unsigned int cnnt_timer;//TMR1Pulse total time
unsigned int cnnt_tmr2; //TMR2Pulse total time
unsigned int signal_key();
unsigned int getkey() ;
void Delay_MS(unsigned int t);
void initial()
{
TRISA=0x3D;//3D;RA2=1,
TRISC=0X0E;
OPTION=0x87;//RA2Internal interrupt time source
INTCON=0xF0;//Peripheral interruptions allow
CMCON0 = 0X07;
ANSEL = 0;
// TMR0=T0_40MS; / / Start the TMR0, which comes with an oscillator, with a frequency division ratio of 1:256
T1CON=0X22;//2Start the TMR1 with the oscillator, divide the frequency ratio of 1:4, close TRM1ON=0;
TMR1H=T1_100MS>>8;//0X80; //Set the initial value
TMR1L==T1_100MS;//0X00;
TMR1IE=1; //TMR1中interrupt enable；interrupt enabling 断允许
T2CON=0x63; //The TMR2 prefrequency division coefficient is 1:16, and the rear frequency division coefficient is 1:13, and the start of the work is turned off by TRM2ON=0;
PR2=239; //Overflow value of TMR2, overflow when TMR2 is for this value + 1
TMR2IE=1; //The TMR1 interruption allowed for 50MS
cnnt=0;
cnnt_timer=0;
num=10;
}
void Delay_MS(unsigned int t)
{
unsigned int a,b;
for(a=t;a>0;a--)
for(b=110;b>0;b--);
}
void Forward()
{
rise=1;
MOTB=1;
MOTA=0;
signal_key();
}
void Reversal()
{
rise=0;
MOTB=0;
MOTA=1;
signal_key();
}
void Stop()
{
MOTA=0;
MOTB=0;
}
unsigned int getkey()
{
if(!UP)
{
while(!UP)
{
if(cnnt==num){Stop();break;}
Forward();
}
}
if(!DN)
{
while(!DN)
{
if(cnnt==0){Stop();break;}
Reversal();
}
}
while(DN&&UP)
{
tmrh=0;
tmrl=0;
break;
}
}
unsigned int signal_key()
{
//The signal drops along the detection of the//
while(!RA2) //Reconfirm the signal and exit without the signal is pressed
{
tmrh=0;
if(tmrl) break;
tmrl=1;
RA1=0;
INTF=0;
TMR1ON=0;
TMR2ON=1;
if(TMR2IF==1)//Detect whether the 50MS error signal, stop running {
TMR2ON=0;
TMR2IF=0;
PR2=239; //Set the initial value
Stop(); //Stop motor operation
return;
}
}
// Stop motor operation//
while(RA2)
{
tmrl=0;
if(tmrh) break;
tmrh=1;
TMR2ON=0;
INTF=1;
if(TMR1IF==1)//Detect whether the 100MS error signal, stop running {
TMR1ON=0;
TMR1IF=0;
TMR1H=T1_100MS>>8;//0X80; //Set the initial value TMR1L=T1_100MS;//0X00;
Stop(); //Stop motor operation
return;
}
break;
}
// Remove the ascending pulse signal time //
if(TMR1ON==0)
{
timerh=TMR1H;
timerl=TMR1L;
cnnt_timer = timerh<<8;
cnnt_timer += timerl;
TMR1IF=0;
TMR1H=T1_100MS>>8;//0X80; //Set the initial value
TMR1L=T1_100MS;//0X00;
}
//removes the descent along the pulse signal time//
if(TMR2ON==0)
{
cnnt_tmr2 = TMR2;
TMR2IF=0;
PR2=239; //Set the initial value
}
}
void interrupt ISR(void)
{
if(INTF==1) //The pulse starts to count, and the lifting timing starts on the TMR1 {
INTF=0;
RA1=1;
if(rise) cnnt++;
else cnnt--;
TMR1ON=1;
}
if( TMR1IF==1)
{
TMR1IF=0;
TMR1H=T1_100MS>>8;//0X80; //Set the initial value
TMR1L=T1_100MS;//0X00;
}
if( TMR2IF==1)
{
TMR2IF=0;
PR2=239; //Set the initial value
}
}
void main()
{
initial();
while (1)
{
getkey();
}
main()
{
PORTC = 0;
CMCON0 = 7;
TRISC = 0;
TRISA = 0xFB;
ANSEL = 0x00;
PORTA = 0;
TRISAbits.TRISA0 = 1;
ANSELbits.ANS0 = 1;
ADCON0bits.ADFM = 1;
ADCON0bits.VCFG = 0;
ADCON1bits.ADCS = 0b001;
ADCON0bits.CHS = 0;
ADCON0bits.ADON = 1;
while(1)
{
__delay_us(3);
ADCON0bits.GO = 1;
while(ADCON0bits.GO==1){};
result = (ADRESH<<8)+ADRESL;
j = Twentyms;
for (i = 0; i < j; i++);
PORTC = 3;
E = 1; E = 0;
j = Fivems;
for (i = 0; i < j; i++);
E = 1; E = 0;
j = TwoHundredus;
for (i = 0; i < j; i++);
E = 1; E = 0;
j = TwoHundredus;
for (i = 0; i < j; i++);
PORTC = 2;
E = 1; E = 0;
j = TwoHundredus;
for (i = 0; i < j; i++);
LCDWrite(0b00101000, 0);
LCDWrite(0b00000001, 0);
LCDWrite(0b00000110, 0);
LCDWrite(0b00001110, 0);
if(result>200)
{
for (i=0;TopMessage[i] != 0;i++)
LCDWrite(TopMessage[i], 1);
}
else if (result>100 && result <=200)
{
for (i = 0; TopMessage1[i] != 0; i++)
LCDWrite(TopMessage1[i], 1);
}
else
{
for (i = 0; TopMessage2[i] != 0; i++)
LCDWrite(TopMessage2[i], 1);
}
memset(BotMessage,0,sizeof(BotMessage));
sprintf(BotMessage,"%d",result);
LCDWrite(0b00000001, 1);
LCDWrite(0b11000000, 0);
for (i = 0; BotMessage[i] != 0; i++)
LCDWrite(BotMessage[i], 1);
if (result>100)
{
for(a=0;a<5000;a++)
Buzzer=LOW;
for(a=0;a<5000;a++)
Buzzer=HIGH;
}
}
直接贴代码吧，截图不方便
不知道你这个问题是否已经解决, 如果还没有解决的话:- 帮你找了个相似的问题, 你可以看下: https://ask.csdn.net/questions/1084112
- 你也可以参考下这篇文章：C语言——MPLAB中if语句不执行问题
- 以下回答来自chatgpt:
我很抱歉，由于您并没有提供具体的报错信息和程序代码，我无法给出解决方案。建议您先查看报错信息，确定错误类型和具体位置，然后检查程序代码是否存在语法错误或者逻辑问题。如果您需要更详细的帮助，请提供更多信息，以便我能够准确地为您提供解决方案。
如果你已经解决了该问题, 非常希望你能够分享一下解决方案, 写成博客, 将相关链接放在评论区, 以帮助更多的人 ^-^
