shardingJDBC5水平分片报错。

shardingJDBC4和5都遇到了垂直分片没事，水平分片报错。
链接数据库超时，实则管理软件可以用。
跟着尚硅谷sharding5课程走的。

# 应用名称
spring.application.name=sharging-jdbc-demo
# 开发环境设置
spring.profiles.active=dev
# 内存模式
spring.shardingsphere.mode.type=Memory

#========================数据源配置
# 配置真实数据源
spring.shardingsphere.datasource.names=server-user,server-order0,server-order1

# 配置第 1 个数据源
spring.shardingsphere.datasource.server-user.type=com.zaxxer.hikari.HikariDataSource
spring.shardingsphere.datasource.server-user.driver-class-name=com.mysql.jdbc.Driver
spring.shardingsphere.datasource.server-user.jdbc-url=jdbc:mysql://192.168.100.201:3301/db_user
spring.shardingsphere.datasource.server-user.username=root
spring.shardingsphere.datasource.server-user.password=123456

# 配置第 2 个数据源
spring.shardingsphere.datasource.server-order0.type=com.zaxxer.hikari.HikariDataSource
spring.shardingsphere.datasource.server-order0.driver-class-name=com.mysql.jdbc.Driver
spring.shardingsphere.datasource.server-order0.jdbc-url=jdbc:mysql://192.168.100.201:3310/db_order
spring.shardingsphere.datasource.server-order0.username=root
spring.shardingsphere.datasource.server-order0.password=123456

# 配置第 3 个数据源
spring.shardingsphere.datasource.server-order1.type=com.zaxxer.hikari.HikariDataSource
spring.shardingsphere.datasource.server-order1.driver-class-name=com.mysql.jdbc.Driver
spring.shardingsphere.datasource.server-order1.jdbc-url=jdbc:mysql://192.168.100.201:3311/db_order
spring.shardingsphere.datasource.server-order1.username=root
spring.shardingsphere.datasource.server-order1.password=123456

#========================标准分片表配置（数据节点配置）
# spring.shardingsphere.rules.sharding.tables.<table-name>.actual-data-nodes=值
# 值由数据源名 + 表名组成，以小数点分隔。多个表以逗号分隔，支持 inline 表达式。
# <table-name>：逻辑表名
spring.shardingsphere.rules.sharding.tables.t_user.actual-data-nodes=server-user.t_user
#spring.shardingsphere.rules.sharding.tables.t_order.actual-data-nodes=server-order0.t_order0,server-order0.t_order1,server-order1.t_order0,server-order1.t_order1
#inline表达式写法
spring.shardingsphere.rules.sharding.tables.t_order.actual-data-nodes=server-order$->{0..1}.t_order$->{0..1}

#------------------------分库策略
# 分片列名称
spring.shardingsphere.rules.sharding.tables.t_order.database-strategy.standard.sharding-column=user_id
# 分片算法名称
spring.shardingsphere.rules.sharding.tables.t_order.database-strategy.standard.sharding-algorithm-name=alg_inline_userid

#------------------------分片算法配置
# 行表达式分片算法
# 分片算法类型
spring.shardingsphere.rules.sharding.sharding-algorithms.alg_inline_userid.type=INLINE
# 分片算法属性配置
spring.shardingsphere.rules.sharding.sharding-algorithms.alg_inline_userid.props.algorithm-expression=server-order$->{user_id % 2}

#------------------------分表策略
# 分片列名称
spring.shardingsphere.rules.sharding.tables.t_order.table-strategy.standard.sharding-column=order_no
# 分片算法名称
spring.shardingsphere.rules.sharding.tables.t_order.table-strategy.standard.sharding-algorithm-name=alg_hash_mod


#------------------------分片算法配置
# 哈希取模分片算法
# 分片算法类型
spring.shardingsphere.rules.sharding.sharding-algorithms.alg_hash_mod.type=HASH_MOD
# 分片算法属性配置
spring.shardingsphere.rules.sharding.sharding-algorithms.alg_hash_mod.props.sharding-count=2


# 取模分片算法
# 分片算法类型
spring.shardingsphere.rules.sharding.sharding-algorithms.alg_mod.type=MOD
# 分片算法属性配置
spring.shardingsphere.rules.sharding.sharding-algorithms.alg_mod.props.sharding-count=2


# 打印SQl
spring.shardingsphere.props.sql-show=true


java.lang.IllegalStateException: Failed to load ApplicationContext

    xxx（省略了直接看Caused by）
Caused by: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'userController': Unsatisfied dependency expressed through field 'userMapper'; nested exception is org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'userMapper' defined in file [E:\XUEXI\workspace\S5\target\classes\com\example\s5\Mapper\UserMapper.class]: Unsatisfied dependency expressed through bean property 'sqlSessionFactory'; nested exception is org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'sqlSessionFactory' defined in class path resource [com/baomidou/mybatisplus/autoconfigure/MybatisPlusAutoConfiguration.class]: Unsatisfied dependency expressed through method 'sqlSessionFactory' parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'shardingSphereDataSource' defined in class path resource [org/apache/shardingsphere/spring/boot/ShardingSphereAutoConfiguration.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [javax.sql.DataSource]: Factory method 'shardingSphereDataSource' threw exception; nested exception is java.lang.IllegalArgumentException: Communications link failure

    ... 84 more
Caused by: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'userMapper' defined in file [E:\XUEXI\workspace\S5\target\classes\com\example\s5\Mapper\UserMapper.class]: Unsatisfied dependency expressed through bean property 'sqlSessionFactory'; nested exception is org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'sqlSessionFactory' defined in class path resource [com/baomidou/mybatisplus/autoconfigure/MybatisPlusAutoConfiguration.class]: Unsatisfied dependency expressed through method 'sqlSessionFactory' parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'shardingSphereDataSource' defined in class path resource [org/apache/shardingsphere/spring/boot/ShardingSphereAutoConfiguration.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [javax.sql.DataSource]: Factory method 'shardingSphereDataSource' threw exception; nested exception is java.lang.IllegalArgumentException: Communications link failure

    ... 105 more
Caused by: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'sqlSessionFactory' defined in class path resource [com/baomidou/mybatisplus/autoconfigure/MybatisPlusAutoConfiguration.class]: Unsatisfied dependency expressed through method 'sqlSessionFactory' parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'shardingSphereDataSource' defined in class path resource [org/apache/shardingsphere/spring/boot/ShardingSphereAutoConfiguration.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [javax.sql.DataSource]: Factory method 'shardingSphereDataSource' threw exception; nested exception is java.lang.IllegalArgumentException: Communications link failure

    ... 117 more
Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'shardingSphereDataSource' defined in class path resource [org/apache/shardingsphere/spring/boot/ShardingSphereAutoConfiguration.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [javax.sql.DataSource]: Factory method 'shardingSphereDataSource' threw exception; nested exception is java.lang.IllegalArgumentException: Communications link failure

Caused by: org.springframework.beans.BeanInstantiationException: Failed to instantiate [javax.sql.DataSource]: Factory method 'shardingSphereDataSource' threw exception; nested exception is java.lang.IllegalArgumentException: Communications link failure

Caused by: com.mysql.cj.jdbc.exceptions.CommunicationsException: Communications link failure

    ... 164 more
Caused by: com.mysql.cj.exceptions.CJCommunicationsException: Communications link failure

    ... 175 more
Caused by: java.net.ConnectException: Connection timed out: connect

    ... 178 more

给你找了一篇非常好的博客，你可以看看是否有帮助，链接：数据库分库分表（五）shardingjdbc水平分库+水平分表demo
除此之外, 这篇博客: springBoot基于yml配置整合ShardingJDBC实现分库分表中的 三、水平分库水平分表 部分也许能够解决你的问题, 你可以仔细阅读以下内容或跳转源博客中阅读:

application-shardingDataBase.yml

#水平分库水平分表配置,两个数据库，每个数据库中两张表
spring:
  shardingsphere:
    # 数据源名称 db1 、db2
    datasource:
      names: db1,db2
      db1:
        type: com.alibaba.druid.pool.DruidDataSource
        driver-class-name: com.mysql.cj.jdbc.Driver
        url: jdbc:mysql://192.168.119.51:3306/test1?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
        username: root
        password: root
      db2:
        type: com.alibaba.druid.pool.DruidDataSource
        driver-class-name: com.mysql.cj.jdbc.Driver
        url: jdbc:mysql://192.168.119.52:3306/test1?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
        username: root
        password: root

    # 配置数据库的分布，表的分布
    sharding:
      tables:
        user_info:
          # db1:user_info1 user_info2; db2:user_info1,user_info2;
          actual-data-nodes: db$->{1..2}.user_info$->{1..2}
          # 指定user_info表 主键id 生成策略为 SNOWFLAKE
          key-generator:
            column: id
            type: SNOWFLAKE
          # 指定数据库分片策略 约定user_info值是偶数添加到user_info1中，奇数添加到user_info2中
          database-strategy:
            inline:
              sharding-column: id
              algorithm-expression: db$->{id%2+1}
            # 指定表分片策略
          table-strategy:
            inline:
              #根据年龄插入不同的表，如果年龄大于15岁插入user_info1表，如果年龄小于或等于15插入user_info2表
#              sharding-column: age
#              algorithm-expression: user_info$->{age>15?1:2}
              #约定id值是偶数添加到user_info1表，如果id是奇数添加到user_info2表
              sharding-column: id
              algorithm-expression: user_info$->{id%2+1}
    props:
      sql:
        show: true

开始测试，application.yml中的active值改成shardingDataBase启动项目

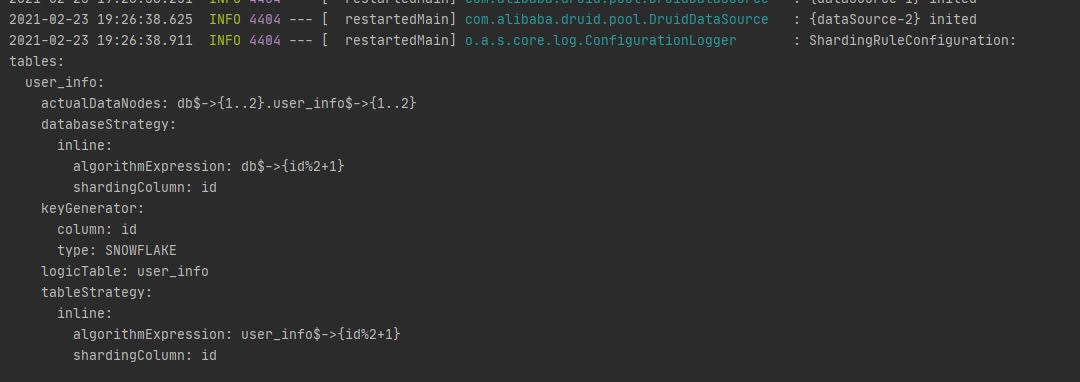

出现下面信息标识启动成功
在这里插入图片描述

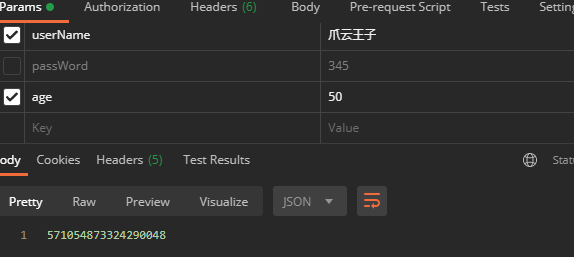

开始测试

返回值为偶数
控制台日志

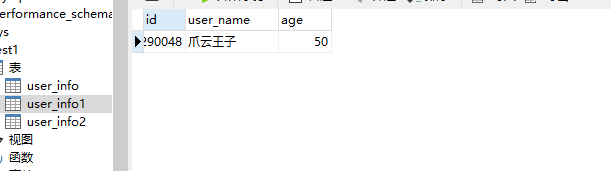

根据策略，在第一个数据库的user_info1表中
在这里插入图片描述

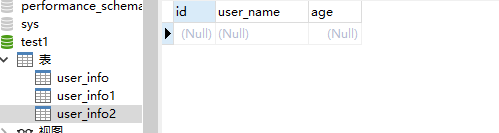

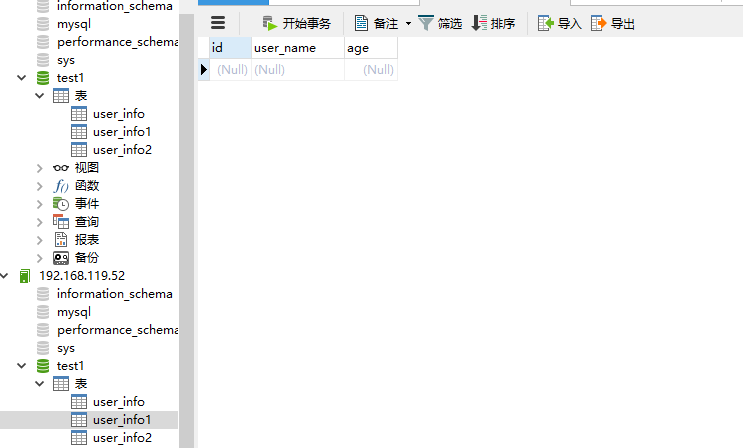

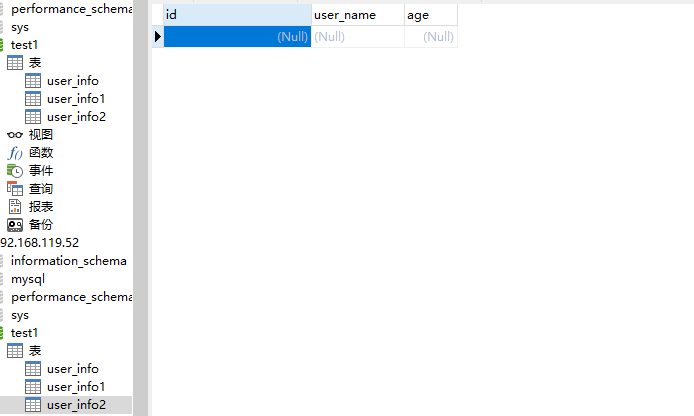

查询测试结果

以下回答由chatgpt基于相关博客总结生成:
很抱歉，参考资料中并没有提到具体的错误和提示信息，请提供更详细的信息以便定位问题。另外，需要提供使用的数据库类型和版本，以及相关的配置信息和网络设置，例如是否存在防火墙等。

这是一个 Spring Boot 应用程序的错误堆栈跟踪，错误的发生在加载应用程序上下文时。异常报告显示 beans 之间有一些依赖项未能被满足，导致了应用程序上下文无法加载成功。

其中最根本的异常是 java.lang.IllegalArgumentException: Communications link failure 异常。这个异常通常发生在应用程序尝试连接数据库时发生连接错误。在本例中，这可能是由于使用的数据库连接池实现无法成功与数据库建立连接，或者数据库无法响应请求导致的。

具体针对这个异常的解决方法可以包括以下步骤：

检查数据库的连接字符串、用户名和密码是否正确，并确认数据库是否正在运行。

确认所使用的数据库连接池配置是否正确。您可能需要检查连接池的最大连接数、空闲连接超时时间等参数，并尝试调整它们以获得更稳定的连接。

检查网络连接并确认网络问题是否会导致数据库连接失败。例如，您可以尝试从应用程序所在的主机 ping 数据库服务器，或者尝试使用其他工具（如 telnet）测试数据库端口的可用性。

确认是否存在防火墙或其他安全软件阻止了应用程序与数据库之间的通信。在这种情况下，您可能需要调整防火墙或安全软件的配置或规则，以允许应用程序与数据库之间的通信。

除了上述解决方法，还可以尝试使用其他的数据库连接池实现，或者尝试直接使用原生的 JDBC API 来连接数据库。如果这些方法仍然无法解决问题，请更详细地查看异常报告，并根据报告中提供的信息进一步调查和诊断问题。
