echarts自适应问题

echarts 自适应问题

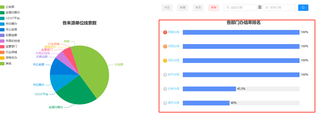

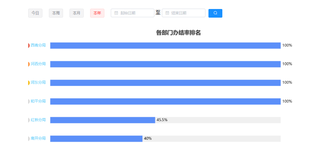

怎么可以缩放的时候 左边不动右边动呢 左是y轴数据 右是x轴数据

      var chartDom = document.getElementById('deptFinish');
      var myChart = echarts.init(chartDom);
      var options;
      let ydata = JSON.parse(JSON.stringify(this.deptName));
      let xdata = this.completedRate;
      options = {
        title: {
          text: '各部门办结率排名',
          left: 'center',
          top:36
        },
        grid:{
          left:'-7%',
          right:'16%',
          containLabel:true
        },
        tooltip: {
          trigger: "axis",
          formatter:'{c}%',
          axisPointer: {
            type: 'none'
          }
        },
        xAxis: {
          type: "value",
          show: false,
        },
        yAxis: {
          type: "category",
          offset: 3,
          data: ydata,
          axisLine: {
            show: false,
          },
          axisTick: {
            show: false,
          },
          axisLabel: {
            margin: 80,
            align: "left",
            overflow: "truncate",
            formatter: function (value, index) {
              let ind = index + 1;
              if (ind == ydata.length) {
                return "{one|" + (ydata.length - index) + "} {a|" + value + "}";
              } else if (ind + 1 == ydata.length) {
                return "{two|" + (ydata.length - index) + "} {b|" + value + "}";
              } else if (ind + 2 == ydata.length) {
                return (
                  "{three|" + (ydata.length - index) + "} {c|" + value + "}"
                );
              }
              if (ydata.length - index > 9) {
                return (
                  "{five|" + (ydata.length - index) + "} {d|" + value + "}"
                );
              }
              return "{four|" + (ydata.length - index) + "} {d|" + value + "}";
            },
            rich: {
              a: {
                color: "#59c9f9",
              },
              b: {
                color: "#59c9f9",
              },
              c: {
                color: "#59c9f9",
              },
              d: {
                color: "#59c9f9",
              },
              // 第一名
              one: {
                backgroundColor: "#E86452",
                color: "white",
                width: 12,
                height: 16,
                padding: [1, 0, 0, 5],
                borderRadius: 10,
                fontSize: 11,
              },
              // 第二名
              two: {
                backgroundColor: "#FF9845",
                color: "white",
                width: 12,
                height: 16,
                padding: [1, 0, 0, 5],
                borderRadius: 10,
                fontSize: 11,
              },
              // 第三名
              three: {
                backgroundColor: "#F6BD16",
                color: "white",
                width: 12,
                height: 16,
                padding: [1, 0, 0, 5],
                borderRadius: 10,
                fontSize: 11,
              },
              // 一位数
              four: {
                backgroundColor: "rgba(0,0,0,0.15)",
                color: "white",
                width: 12,
                height: 16,
                padding: [1, 0, 0, 5],
                borderRadius: 10,
                fontSize: 11,
              },
              // 两位数
              five: {
                backgroundColor: "rgba(0,0,0,0.15)",
                color: "white",
                width: 16,
                height: 16,
                padding: [1, 0, 0, 1],
                borderRadius: 10,
                fontSize: 11,
              },
            },
          },
        },
        series: [{
          type: "bar",
          showBackground: true,
          label: {
            show: true,
            formatter:function(params){
              return params.value+'%'
            },
            position: "right",
            color:'black',
          },
          barWidth: 20,
          itemStyle: {
            color: "#5B8FF9",
          },
          data: xdata,
        }, ],
      };

可以通过设置grid中的left来实现。问题中y轴label数据出现遮罩的问题是因为用的百分比赋值，可以改成数字赋值，根据需求设置具体的px宽度
