abaqus复合材料单胞模型残余应力仿真

问题遇到的现象和发生背景

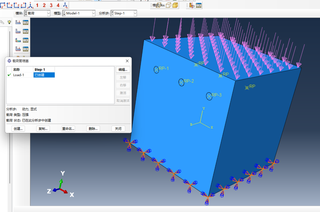

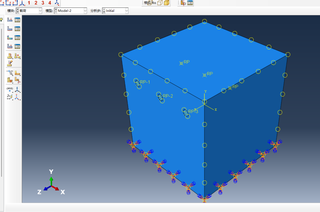

abaqus显性分析激光冲击单胞模型残余应力之后,再采用standard隐性分析残余应力释放,但始终提示错误:
“The surface ASSEMBLY_PART-1-1_AL has not been defined.

*CONTACT INCLUSIONS suboption is required for defining the general contact domain.

Analysis Input File Processor exited with an error - Please see the Job-2.dat file for possible error messages if the file exists.”

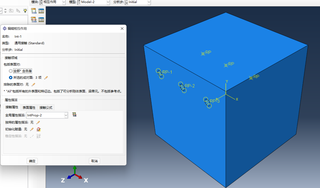

我基体和颗粒之间采用的是通用接触,总是提示基体的接触面没有定义。
不明白为什么?还是说这个单胞模型仿真不需要standard分析,只用Explicit分析就够了?

用代码块功能插入代码,请勿粘贴截图
运行结果及报错内容
我的解答思路和尝试过的方法
我想要达到的结果

成功用abaqus单胞模型的方法仿真出复合材料的激光冲击残余应力分布
