我在尝试连接我在很久以前买的一块Arduino UNO R3可是系统说已经搜索到Arduino可是在上传的时候怎么也找不到接口了
我换成了最基本的程序,让自带指示灯闪烁,可是还是不行

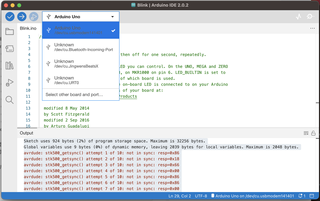

系统已搜索到Arduino截图:

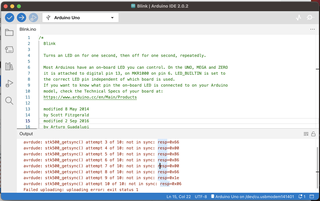

系统报错截图:
我用的电脑是:MacBook Pro 13-inch, 2020, Two Thunderbolt 3 ports, 1.4GHz Quad-Core Intel Core i5, Intel Iris Plus Graphics 645 1536 MB, 8 GB 2133 MHz LPDDR3, Ventura 13.1
我用的Arduino是:Arduino UNO R3 + 蓝宙电子附加导线板
/*
Blink
Turns an LED on for one second, then off for one second, repeatedly.
Most Arduinos have an on-board LED you can control. On the UNO, MEGA and ZERO
it is attached to digital pin 13, on MKR1000 on pin 6. LED_BUILTIN is set to
the correct LED pin independent of which board is used.
If you want to know what pin the on-board LED is connected to on your Arduino
model, check the Technical Specs of your board at:
https://www.arduino.cc/en/Main/Products
modified 8 May 2014
by Scott Fitzgerald
modified 2 Sep 2016
by Arturo Guadalupi
modified 8 Sep 2016
by Colby Newman
This example code is in the public domain.
https://www.arduino.cc/en/Tutorial/BuiltInExamples/Blink
*/
// the setup function runs once when you press reset or power the board
void setup() {
// initialize digital pin LED_BUILTIN as an output.
pinMode(LED_BUILTIN, OUTPUT);
}
// the loop function runs over and over again forever
void loop() {
digitalWrite(LED_BUILTIN, HIGH); // turn the LED on (HIGH is the voltage level)
delay(1000); // wait for a second
digitalWrite(LED_BUILTIN, LOW); // turn the LED off by making the voltage LOW
delay(1000); // wait for a second
}
Sketch uses 924 bytes (2%) of program storage space. Maximum is 32256 bytes.
Global variables use 9 bytes (0%) of dynamic memory, leaving 2039 bytes for local variables. Maximum is 2048 bytes.
avrdude: stk500_getsync() attempt 1 of 10: not in sync: resp=0x86
avrdude: stk500_getsync() attempt 2 of 10: not in sync: resp=0x18
avrdude: stk500_getsync() attempt 3 of 10: not in sync: resp=0x66
avrdude: stk500_getsync() attempt 4 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 5 of 10: not in sync: resp=0x86
avrdude: stk500_getsync() attempt 6 of 10: not in sync: resp=0x86
avrdude: stk500_getsync() attempt 7 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 8 of 10: not in sync: resp=0x66
avrdude: stk500_getsync() attempt 9 of 10: not in sync: resp=0x1e
avrdude: stk500_getsync() attempt 10 of 10: not in sync: resp=0x06
Failed uploading: uploading error: exit status 1
我尝试搜索Arduino的问答库可是他们提出的解决方式没有用 比如说重启Arduino和电脑,换接口,人工设置,换数据线,等等
我使用了我很老的Windows8然后成功了,可是我不能用一个很老的CPU运算要不反应会很慢的
系统可以上传指令至Arduino
Arduino可以运行程序
