arduino ESP8266 https 16进制CA证书指纹获取方法

问题遇到的现象和发生背景

如下图代码所示,请问一下,示例中:**const uint8_t fingerprint[20]**的16位CA证书是如何获取的?
参考过这篇文章的方法,请教一下详细获取方法。

用代码块功能插入代码,请勿粘贴截图
/**
   BasicHTTPSClient.ino

    Created on: 20.08.2018

*/

#include <Arduino.h>

#include <ESP8266WiFi.h>
#include <ESP8266WiFiMulti.h>

#include <ESP8266HTTPClient.h>

#include <WiFiClientSecureBearSSL.h>
// Fingerprint for demo URL, expires on June 2, 2021, needs to be updated well before this date
const uint8_t fingerprint[20] = {0x40, 0xaf, 0x00, 0x6b, 0xec, 0x90, 0x22, 0x41, 0x8e, 0xa3, 0xad, 0xfa, 0x1a, 0xe8, 0x25, 0x41, 0x1d, 0x1a, 0x54, 0xb3};

ESP8266WiFiMulti WiFiMulti;

void setup() {

  Serial.begin(115200);
  // Serial.setDebugOutput(true);

  Serial.println();
  Serial.println();
  Serial.println();

  for (uint8_t t = 4; t > 0; t--) {
    Serial.printf("[SETUP] WAIT %d...\n", t);
    Serial.flush();
    delay(1000);
  }

  WiFi.mode(WIFI_STA);
  WiFiMulti.addAP("SSID", "PASSWORD");
}

void loop() {
  // wait for WiFi connection
  if ((WiFiMulti.run() == WL_CONNECTED)) {

    std::unique_ptr<BearSSL::WiFiClientSecure>client(new BearSSL::WiFiClientSecure);

    client->setFingerprint(fingerprint);
    // Or, if you happy to ignore the SSL certificate, then use the following line instead:
    // client->setInsecure();

    HTTPClient https;

    Serial.print("[HTTPS] begin...\n");
    if (https.begin(*client, "https://jigsaw.w3.org/HTTP/connection.html")) {  // HTTPS

      Serial.print("[HTTPS] GET...\n");
      // start connection and send HTTP header
      int httpCode = https.GET();

      // httpCode will be negative on error
      if (httpCode > 0) {
        // HTTP header has been send and Server response header has been handled
        Serial.printf("[HTTPS] GET... code: %d\n", httpCode);

        // file found at server
        if (httpCode == HTTP_CODE_OK || httpCode == HTTP_CODE_MOVED_PERMANENTLY) {
          String payload = https.getString();
          Serial.println(payload);
        }
      } else {
        Serial.printf("[HTTPS] GET... failed, error: %s\n", https.errorToString(httpCode).c_str());
      }

      https.end();
    } else {
      Serial.printf("[HTTPS] Unable to connect\n");
    }
  }

  Serial.println("Wait 10s before next round...");
  delay(10000);
}

我的解答思路和尝试过的方法

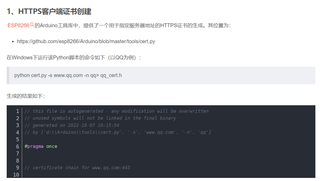

提供参考实例分享,期望对你有所帮助,【ESP8266 RTOS 下 openssl 证书及使用和 fragment 介绍】。链接:https://blog.csdn.net/u013177084/article/details/80349897
