Android，自定义view,进度条

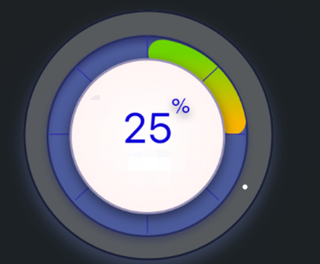

Android，这种样式的进度条如何画呢？网上找到的都是普普通通的进度条。
有一个差不多的 可以修改一下
public class MyRoundView extends View {
private Paint circleBgPaint;
private int mProgress=0,tempProgress = 0;
Handler handler=new Handler(Looper.getMainLooper());
private Paint circlePaint;
private Paint textPaint;
/*总的进度*/
private int totalProgress=500;
/*进度文字距离顶部的距离*/
private int textTopMargin=30;
/*圆环的宽度*/
private float circleBorderWidth;
/*圆环的背景色*/
private int circleBgColor;
/*圆环的颜色*/
private int circleColor;
/*设置圆心文字*/
private String centerTextTop="";
private String centerTextBottom="";
private String textBottom="";
private Rect rect;
private Paint centerTextTopPaint;
private Paint centerTextBottomPaint;
private Typeface tfBottom;
private Context context;
/*默认的圆弧的线宽，单位为dp*/
private final int DEFULT_CIRCLE_BORDER_WIDTH=10;
public MyRoundView(Context context, @Nullable AttributeSet attrs) {
super(context, attrs);
this.context=context;
initAttrs(context,attrs);
init();
}
public MyRoundView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
this.context=context;
initAttrs(context,attrs);
init();
}
public MyRoundView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
super(context, attrs, defStyleAttr, defStyleRes);
this.context=context;
initAttrs(context,attrs);
init();
}
private void initAttrs(Context context, @Nullable AttributeSet attrs){
TypedArray mTypeArray=context.obtainStyledAttributes(attrs, R.styleable.MyRoundView);
circleBorderWidth=mTypeArray.getDimension(R.styleable.MyRoundView_circleBorderWidth, dp2px(DEFULT_CIRCLE_BORDER_WIDTH));
circleBgColor=mTypeArray.getColor(R.styleable.MyRoundView_circleBgColor, getResources().getColor(R.color.main_color_light));
circleColor=mTypeArray.getColor(R.styleable.MyRoundView_circleColor, getResources().getColor(R.color.white));
mTypeArray.recycle();
}
private void init(){
/*初始化圆弧底部背景画笔*/
circleBgPaint = new Paint();
circleBgPaint.setStyle(Paint.Style.STROKE);
circleBgPaint.setStrokeWidth(circleBorderWidth);
circleBgPaint.setAntiAlias(true);
circleBgPaint.setColor(circleBgColor);
circleBgPaint.setStrokeCap(Paint.Cap.ROUND);
/*初始化圆弧画笔*/
circlePaint = new Paint(Paint.ANTI_ALIAS_FLAG);
circlePaint.setStyle(Paint.Style.STROKE);
circlePaint.setStrokeWidth(circleBorderWidth);
circlePaint.setColor(circleColor);
circlePaint.setStrokeCap(Paint.Cap.ROUND);
/*初始化文字画笔*/
textPaint = new Paint();
textPaint.setStyle(Paint.Style.FILL);
textPaint.setAntiAlias(true);
textPaint.setTextSize(40);
textPaint.setColor(Color.WHITE);
/*初始化圆心文字画笔*/
centerTextTopPaint = new Paint();
centerTextTopPaint.setStyle(Paint.Style.FILL);
centerTextTopPaint.setAntiAlias(true);
centerTextTopPaint.setTextSize(35);
centerTextTopPaint.setColor(Color.WHITE);
centerTextBottomPaint = new Paint( Paint.ANTI_ALIAS_FLAG);//Paint.FAKE_BOLD_TEXT_FLAG |
centerTextBottomPaint.setStyle(Paint.Style.FILL);
centerTextBottomPaint.setAntiAlias(true);
centerTextBottomPaint.setTextSize(120);
centerTextBottomPaint.setColor(Color.WHITE);
tfBottom = Typeface.createFromAsset(context.getAssets(), "fonts/home_weather.ttf");
centerTextBottomPaint.setTypeface(tfBottom);
rect = new Rect();
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int finalWidth=getFinalWidth(widthMeasureSpec);
int finalHeight=getFinalHeigh(heightMeasureSpec);
setMeasuredDimension(finalWidth,finalHeight);
}
/**
* 测量View的宽度
* @param widthMeasureSpec
* @return
*/
private int getFinalWidth(int widthMeasureSpec){
int mode=MeasureSpec.getMode(widthMeasureSpec);
int size=MeasureSpec.getSize(widthMeasureSpec);
if (mode==MeasureSpec.AT_MOST){
size=0;
}
return size;
}
/**
* 测量View的高度
* @param heightMeasureSpec
* @return
*/
private int getFinalHeigh(int heightMeasureSpec){
int mode=MeasureSpec.getMode(heightMeasureSpec);
int size=MeasureSpec.getSize(heightMeasureSpec);
if (mode==MeasureSpec.AT_MOST){
size=0;
}
return size;
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
int minValue=getMeasuredWidth()<getMeasuredHeight()?getMeasuredWidth():getMeasuredHeight();
float radius=minValue/2-circleBorderWidth/2;
/*画圆弧背景*/
canvas.drawArc(circleBorderWidth/2,circleBorderWidth/2,circleBorderWidth/2+2*radius,circleBorderWidth/2+2*radius,135,270,false,circleBgPaint);
/*画圆弧*/
canvas.drawArc(circleBorderWidth/2,circleBorderWidth/2,circleBorderWidth/2+2*radius,circleBorderWidth/2+2*radius,135,270*tempProgress/totalProgress,false,circlePaint);
/*画当前进度文字*/
canvas.save();
canvas.translate(circleBorderWidth/2+radius,circleBorderWidth/2+radius);
String currentProgressStr=textBottom;
rect.setEmpty();
textPaint.getTextBounds(currentProgressStr,0,currentProgressStr.length(),rect);
textPaint.setTypeface(tfBottom);
// float x1= (float) (-radius*Math.cos(Math.PI*45/180f));
float y1= (float) (radius*Math.sin(Math.PI*45/180f));
float X1=-(rect.width()>>1);
float Y1=y1+(rect.height()>>1)+textTopMargin;
canvas.drawText(currentProgressStr, X1, Y1, textPaint);
/**
* 中央文字
*/
String centerTextStrTop=centerTextTop;
rect.setEmpty();
centerTextTopPaint.getTextBounds(centerTextStrTop,0,centerTextStrTop.length(),rect);
float X2=-(rect.width()>>1)-5;
float Y2=(rect.height()>>1)-50;
canvas.drawText(centerTextStrTop, X2, Y2, centerTextTopPaint);
String centerTextStrBottom="";
if (TextUtils.isEmpty(centerTextBottom)){
centerTextStrBottom=mProgress*100/totalProgress+"%";
}else{
centerTextStrBottom=centerTextBottom;
}
rect.setEmpty();
centerTextBottomPaint.getTextBounds(centerTextStrBottom,0,centerTextStrBottom.length(),rect);
float X3=-(rect.width()>>1)-6;
float Y3=(rect.height()>>1) + 35;
canvas.drawText(centerTextStrBottom, X3, Y3, centerTextBottomPaint);
canvas.restore();
//动画控制
if (tempProgress<mProgress){
if (mProgress<=totalProgress * 1/3){
tempProgress+=1;
}else if(mProgress<=totalProgress * 2/3){
tempProgress+=2;
}else {
tempProgress+=3;
}
invalidate();
}else {
tempProgress = 0;
}
}
public int dp2px(float dpValue) {
final float scale = getContext().getResources().getDisplayMetrics().density;
return (int) (dpValue * scale + 0.5f);
}
public void setProgress(int progress){
this.mProgress=progress;
invalidate();
}
public void setTotalProgress(int totalProgress){
this.totalProgress = totalProgress;
invalidate();
}
public void setData(int totalProgress,int progress,String cenTextTop,String cenTextBottom,String textBottom){
this.totalProgress = totalProgress;
if (progress>totalProgress){
this.mProgress = totalProgress;
}else {
this.mProgress = progress;
}
this.centerTextTop = cenTextTop;
this.centerTextBottom = cenTextBottom;
this.textBottom = textBottom;
invalidate();
}
styles文件
<!--MyRoundView用到的属性-->
<declare-styleable name="MyRoundView">
<attr name="circleBorderWidth" format="dimension"></attr>
<attr name="circleBgColor" format="color"></attr>
<attr name="circleColor" format="color"></attr>

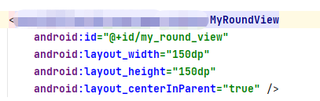

布局中正常调用
然后 调用代码更新布局
myRoundView.setData(300, Integer.parseInt(weatherBean.getAqi()),
"AQI", weatherBean.getAqi(), "空气质量"+weatherBean.getCategory());
