stm32F103高级定时器TIM8不能同时输出4路PWM
stm32F103高级定时器TIM8不能同时输出4路PWM波，配置了四路，但是用逻辑分析仪测只有通道4有输出。然后有时候四路都有输出。
void PWM_Out_Init(void)
{
GPIO_InitTypeDef GPIO_InitStructure;
TIM_TimeBaseInitTypeDef TIM_TimeBaseStructure;
TIM_OCInitTypeDef TIM_OCInitStructure;
RCC_APB2PeriphClockCmd(RCC_APB2Periph_TIM8, ENABLE); //使能定时器8时钟
RCC_APB2PeriphClockCmd(RCC_APB2Periph_AFIO,ENABLE);
RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOC, ENABLE); //使能GPIO外设功能模块时钟
//设置PC6、PC7、PC8、PC9引脚为复用输出功能
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_6|GPIO_Pin_7|GPIO_Pin_8|GPIO_Pin_9;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP; //复用推挽输出
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_Init(GPIOC, &GPIO_InitStructure);//初始化GPIO
//初始化TIM8
TIM_TimeBaseStructure.TIM_Period = 40959; //
TIM_TimeBaseStructure.TIM_Prescaler = 0; //
TIM_TimeBaseStructure.TIM_ClockDivision = TIM_CKD_DIV1; //设置时钟分割:TDTS = Tck_tim
TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up; //TIM向上计数模式
TIM_TimeBaseStructure.TIM_RepetitionCounter=0;
TIM_TimeBaseInit(TIM8, &TIM_TimeBaseStructure); //
//初始化TIM8 Channel1 PWM模式
TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM2; //选择定时器模式:TIM脉冲宽度调制模式2
TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable; //比较输出使能
TIM_OCInitStructure.TIM_OutputNState = TIM_OutputNState_Disable;
TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_High; //输出极性:TIM输出比较极性高
TIM_OCInitStructure.TIM_Pulse=0;
TIM_OC1Init(TIM8, &TIM_OCInitStructure); //根据T指定的参数初始化外设TIM8_OC1-OC4
TIM_OC2Init(TIM8, &TIM_OCInitStructure);
TIM_OC3Init(TIM8, &TIM_OCInitStructure);
TIM_OC4Init(TIM8, &TIM_OCInitStructure);
TIM_CtrlPWMOutputs(TIM8,ENABLE);
TIM_OC1PreloadConfig(TIM8, TIM_OCPreload_Enable); //使能TIM8在CCR2上的预装载寄存器
TIM_OC2PreloadConfig(TIM8, TIM_OCPreload_Enable);
TIM_OC3PreloadConfig(TIM8, TIM_OCPreload_Enable);
TIM_OC4PreloadConfig(TIM8, TIM_OCPreload_Enable);
TIM_ARRPreloadConfig(TIM8, ENABLE);
TIM_Cmd(TIM8, ENABLE); //使能TIM8
}
用代码块功能插入代码，请勿粘贴截图
- 这篇文章讲的很详细，请看：stm32f103 TIM2定时器4路PWM输出实验

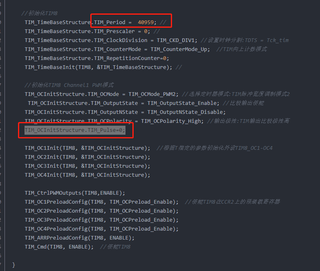

占空比设置个0是啥意思嘛，把占空比设置成0-Period的之间的值，建议设置中间值
