谁有空帮答一下下面的问题

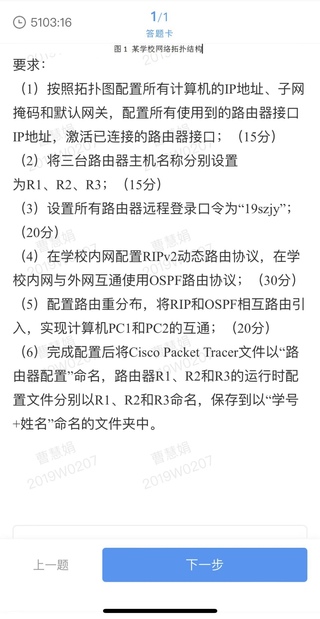

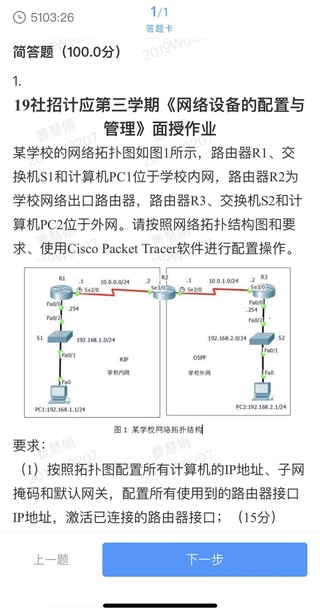

如图，现在答题不会了。… 谁有时间的看一下。时间不多 。看一下 。有没有谁会的



配置路由

Pc1配置ip地址 192.168.1.1 255.255.255.0 网关 192.168.1.254 pc2配置 ip 192.168.2.1 255.255.255.0 网关 192.168.2.254
R1配置
It f0/0
Ip address 192.168.1.254 255.255.255.0
No shut
Int s2/0
No shut
Ip address 10.0.0.1 255.255.255.0

R2配置
It s3/0
Ip address 10.0.0.2 255.255.255.0
No shut
Int s2/0
No shut
Ip address 10.1.0.1 255.255.255.0

R3配置
It f0/0
Ip address 192.168.2.254 255.255.255.0
No shut
Int s2/0
No shut
Ip address 10.1.0.2 255.255.255.0
