ssm整合运行tomcat报错

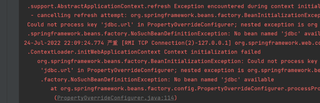

今天第一次做ssm整合，运行tomcat服务器报错了，可以帮看一下怎么解决嘛，报错信息如下

web.xml配置信息如下

<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">


    <context-param>
        <param-name>contextConfigLocationparam-name>
        <param-value>classpath:/spring.xmlparam-value>
    context-param>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListenerlistener-class>
    listener>

    <servlet>
        <servlet-name>DispatcherServletservlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServletservlet-class>
        <init-param>
            <param-name>contextConfigLocationparam-name>
            <param-value>classpath:/springmvc.xmlparam-value>
        init-param>
        <load-on-startup>1load-on-startup>
    servlet>

    <servlet-mapping>
        <servlet-name>DispatcherServletservlet-name>
        <url-pattern>/url-pattern>
    servlet-mapping>


    <filter>
        <filter-name>characterEncodingFilterfilter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilterfilter-class>
        <init-param>
            <param-name>encodingparam-name>
            <param-value>utf-8param-value>
        init-param>
        <init-param>
            <param-name>forceRequestEncodingparam-name>
            <param-value>trueparam-value>
        init-param>
        <init-param>
            <param-name>forceResponseEncodingparam-name>
            <param-value>trueparam-value>
        init-param>

    filter>
    <filter-mapping>
        <filter-name>characterEncodingFilterfilter-name>
        <url-pattern>/*url-pattern>
    filter-mapping>
web-app>

pom.xml信息如下

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0modelVersion>

  <groupId>com.duinggroupId>
  <artifactId>ssm-duing-ticketartifactId>
  <version>1.0-SNAPSHOTversion>
  <packaging>warpackaging>

  <name>ssm-duing-ticket Maven Webappname>

  <url>http://www.example.comurl>

  <properties>
    <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
    <maven.compiler.source>1.7maven.compiler.source>
    <maven.compiler.target>1.7maven.compiler.target>
  properties>

  <dependencies>
    <dependency>
      <groupId>junitgroupId>
      <artifactId>junitartifactId>
      <version>4.11version>
      <scope>testscope>
    dependency>


    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-contextartifactId>
      <version>5.2.12.RELEASEversion>
    dependency>



    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-txartifactId>
      <version>5.2.12.RELEASEversion>
    dependency>

    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-webmvcartifactId>
      <version>5.2.12.RELEASEversion>
    dependency>

    <dependency>
      <groupId>org.mybatisgroupId>
      <artifactId>mybatisartifactId>
      <version>3.5.6version>
    dependency>

    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-jdbcartifactId>
      <version>5.2.12.RELEASEversion>
    dependency>

    <dependency>
      <groupId>org.mybatisgroupId>
      <artifactId>mybatis-springartifactId>
      <version>2.0.6version>
    dependency>

    <dependency>
      <groupId>mysqlgroupId>
      <artifactId>mysql-connector-javaartifactId>
      <version>8.0.22version>
    dependency>

    <dependency>
      <groupId>com.alibabagroupId>
      <artifactId>druidartifactId>
      <version>1.2.4version>
    dependency>

    <dependency>
      <groupId>javax.servletgroupId>
      <artifactId>javax.servlet-apiartifactId>
      <version>4.0.1version>
      <scope>providedscope>
    dependency>

    <dependency>
      <groupId>javax.servlet.jspgroupId>
      <artifactId>jsp-apiartifactId>
      <version>2.2version>
      <scope>providedscope>
    dependency>

    <dependency>
      <groupId>com.fasterxml.jackson.coregroupId>
      <artifactId>jackson-coreartifactId>
      <version>2.12.1version>
    dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.coregroupId>
      <artifactId>jackson-databindartifactId>
      <version>2.12.1version>
    dependency>

  dependencies>



  <build>
    <finalName>ssm-duing-ticketfinalName>
    <pluginManagement>
      <plugins>
        <plugin>
          <artifactId>maven-clean-pluginartifactId>
          <version>3.1.0version>
        plugin>

        <plugin>
          <artifactId>maven-resources-pluginartifactId>
          <version>3.0.2version>
        plugin>
        <plugin>
          <artifactId>maven-compiler-pluginartifactId>
          <version>3.8.0version>
        plugin>
        <plugin>
          <artifactId>maven-surefire-pluginartifactId>
          <version>2.22.1version>
        plugin>
        <plugin>
          <artifactId>maven-war-pluginartifactId>
          <version>3.2.2version>
        plugin>
        <plugin>
          <artifactId>maven-install-pluginartifactId>
          <version>2.5.2version>
        plugin>
        <plugin>
          <artifactId>maven-deploy-pluginartifactId>
          <version>2.8.2version>
        plugin>
      plugins>
    pluginManagement>
  build>
project>

mybatis.xml文件配置如下

configuration
       PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <mappers>
        <package name="com.duing.dao"/>
    mappers>

configuration>

springmvc.xml配置如下

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        https://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd">

    <context:component-scan base-package="com.duing.controller"/>

    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    bean>

    <mvc:annotation-driven/>
    <context:annotation-config/>
beans>

spring.xml配置如下

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd
        http://www.springframework.org/schema/tx
        https://www.springframework.org/schema/tx/spring-tx.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        https://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd">

    <context:component-scan base-package="com.duing.service"/>


    <context:property-override location="classpath:druid.properties"/>


    <bean id="datasource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    bean>

    <bean id="factory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="datasource"/>
        <property name="configLocation" value="classpath:/mybatis.xml"/>
    bean>

    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="factory"/>
        <property name="basePackage" value="com.duing.dao"/>
    bean>
beans>

包的结构

你的这个jdbc.url对应的路径存在吗

数据层的Bean没有加载上或者名称错误，如果正确。应该是配置信息错误了，检查下

spring配置文件中context:property-override 替换为 context:property-placeholder
