Android自定义view实现动态指针

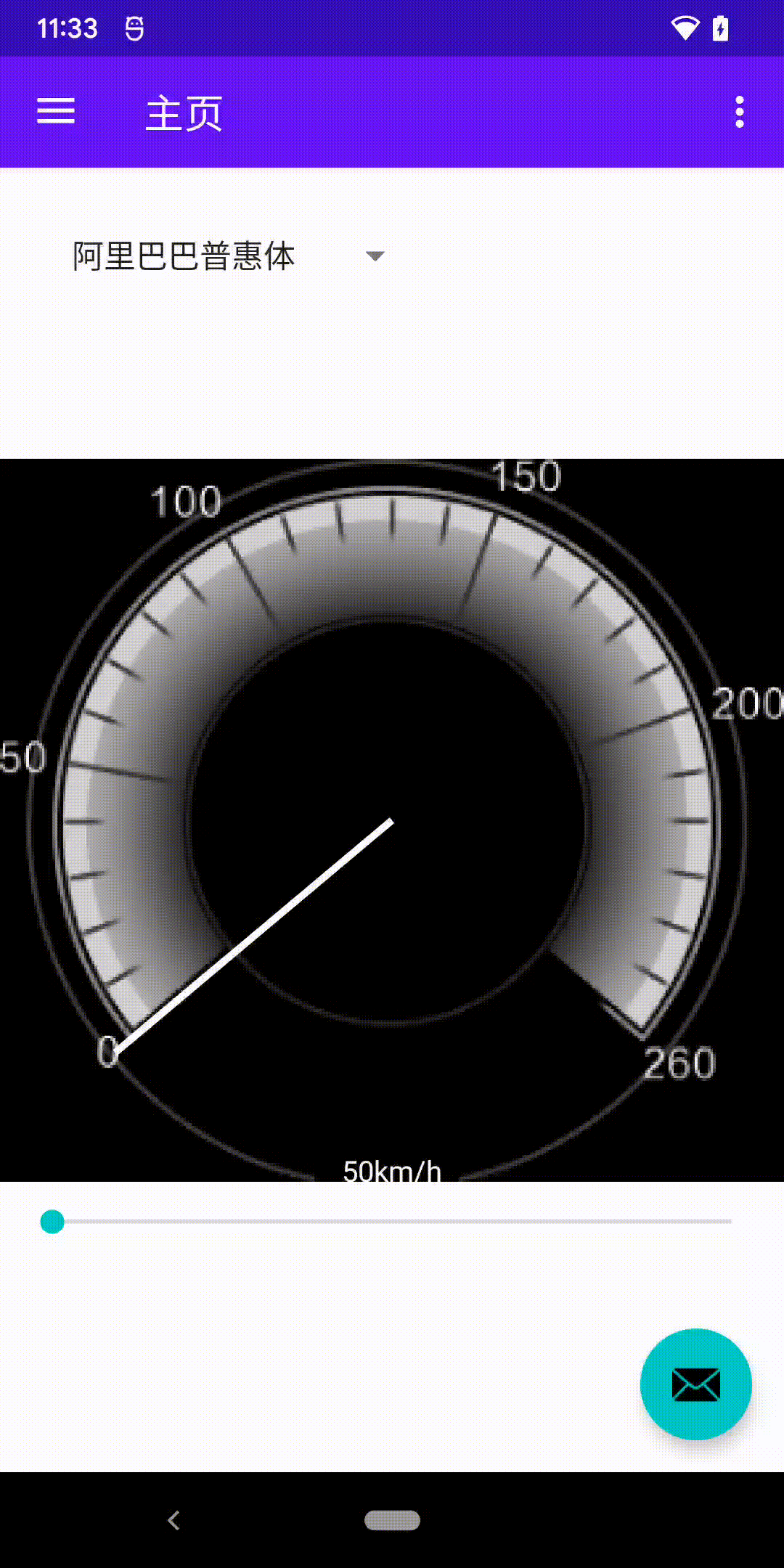

如图所示，背景的白色仪表板是一个图片，紫色框则是一个动态指针，根据车速变化会动态调整，这部分如何自定义view实现？
写个类继承View，在onDraw函数里覆写父类方法，先绘制背景，然后根据数据，计算旋转角度和位置，将指针旋转后画上去。这样就可以。
细节参考
https://blog.csdn.net/qq_31429205/article/details/107743104
public class DashboardView extends View {
private int mRadius; // 圆弧半径
private int mStartAngle; // 起始角度
private int mSweepAngle; // 绘制角度
private int mBigSliceCount; // 大份数
private int mSliceCountInOneBigSlice; // 划分一大份长的小份数
private int mArcColor; // 弧度颜色
private int mMeasureTextSize; // 刻度字体大小
private int mTextColor; // 字体颜色
private String mHeaderTitle = ""; // 表头
private int mHeaderTextSize; // 表头字体大小
private int mHeaderRadius; // 表头半径
private int mPointerRadius; // 指针半径
private int mCircleRadius; // 中心圆半径
private int mMinValue; // 最小值
private int mMaxValue; // 最大值
private float mRealTimeValue; // 实时值
private int mStripeWidth; // 色条宽度
private StripeMode mStripeMode = StripeMode.NORMAL;
private int mBigSliceRadius; // 较长刻度半径
private int mSmallSliceRadius; // 较短刻度半径
private int mNumMeaRadius; // 数字刻度半径
private int mModeType;
private List<HighlightCR> mStripeHighlight; // 高亮范围颜色对象的集合
private int mBgColor; // 背景色
private int mViewWidth; // 控件宽度
private int mViewHeight; // 控件高度
private float mCenterX;
private float mCenterY;
private Paint mPaintArc;
private Paint mPaintText;
private Paint mPaintPointer;
private Paint mPaintValue;
private Paint mPaintStripe;
private RectF mRectArc;
private RectF mRectStripe;
private Rect mRectMeasures;
private Rect mRectHeader;
private Rect mRectRealText;
private Path path;
private int mSmallSliceCount; // 短刻度个数
private float mBigSliceAngle; // 大刻度等分角度
private float mSmallSliceAngle; // 小刻度等分角度
private String[] mGraduations; // 等分的刻度值
private float initAngle;
private boolean textColorFlag = true; // 若不单独设置文字颜色，则文字和圆弧同色
private boolean mAnimEnable; // 是否播放动画
private MyHandler mHandler;
private long duration = 500; // 动画默认时长
public DashboardView(Context context) {
this(context, null);
}
public DashboardView(Context context, AttributeSet attrs) {
this(context, attrs, 0);
}
public DashboardView(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.DashboardView, defStyleAttr, 0);
mRadius = a.getDimensionPixelSize(R.styleable.DashboardView_radius, dpToPx(80));
mStartAngle = a.getInteger(R.styleable.DashboardView_startAngle, 180);
mSweepAngle = a.getInteger(R.styleable.DashboardView_sweepAngle, 180);
mBigSliceCount = a.getInteger(R.styleable.DashboardView_bigSliceCount, 10);
mSliceCountInOneBigSlice = a.getInteger(R.styleable.DashboardView_sliceCountInOneBigSlice, 5);
mArcColor = a.getColor(R.styleable.DashboardView_arcColor, Color.WHITE);
mMeasureTextSize = a.getDimensionPixelSize(R.styleable.DashboardView_measureTextSize, spToPx(12));
mTextColor = a.getColor(R.styleable.DashboardView_textColor, mArcColor);
mHeaderTitle = a.getString(R.styleable.DashboardView_headerTitle);
if (mHeaderTitle == null) mHeaderTitle = "";
mHeaderTextSize = a.getDimensionPixelSize(R.styleable.DashboardView_headerTextSize, spToPx(15));
mHeaderRadius = a.getDimensionPixelSize(R.styleable.DashboardView_headerRadius, mRadius / 3);
mPointerRadius = a.getDimensionPixelSize(R.styleable.DashboardView_pointerRadius, mRadius / 3 * 2);
mCircleRadius = a.getDimensionPixelSize(R.styleable.DashboardView_circleRadius, mRadius / 17);
mMinValue = a.getInteger(R.styleable.DashboardView_minValue, 0);
mMaxValue = a.getInteger(R.styleable.DashboardView_maxValue, 100);
mRealTimeValue = a.getFloat(R.styleable.DashboardView_realTimeValue, 0.0f);
mStripeWidth = a.getDimensionPixelSize(R.styleable.DashboardView_stripeWidth, 0);
mModeType = a.getInt(R.styleable.DashboardView_stripeMode, 0);
mBgColor = a.getColor(R.styleable.DashboardView_bgColor, 0);
a.recycle();
initObjects();
initSizes();
}
private String[] getMeasureNumbers() {
String[] strings = new String[mBigSliceCount + 1];
for (int i = 0; i <= mBigSliceCount; i++) {
if (i == 0) {
strings[i] = String.valueOf(mMinValue);
} else if (i == mBigSliceCount) {
strings[i] = String.valueOf(mMaxValue);
} else {
strings[i] = String.valueOf(((mMaxValue - mMinValue) / mBigSliceCount) * i);
}
}
return strings;
}
private void initObjects() {
mPaintArc = new Paint();
mPaintArc.setAntiAlias(true);
mPaintArc.setColor(mArcColor);
mPaintArc.setStyle(Paint.Style.STROKE);
mPaintArc.setStrokeCap(Paint.Cap.ROUND);
mPaintText = new Paint();
mPaintText.setAntiAlias(true);
mPaintText.setColor(Color.BLACK);
mPaintText.setStyle(Paint.Style.FILL);
mPaintPointer = new Paint();
mPaintPointer.setAntiAlias(true);
mPaintStripe = new Paint();
mPaintStripe.setAntiAlias(true);
mPaintStripe.setStyle(Paint.Style.STROKE);
mPaintStripe.setStrokeWidth(mStripeWidth);
mRectMeasures = new Rect();
mRectHeader = new Rect();
mRectRealText = new Rect();
path = new Path();
mPaintValue = new Paint();
mPaintValue.setAntiAlias(true);
mPaintValue.setColor(Color.BLACK);
mPaintValue.setStyle(Paint.Style.FILL);
mPaintValue.setTextAlign(Paint.Align.CENTER);
mPaintValue.setTextSize(Math.max(mHeaderTextSize, mMeasureTextSize));
mPaintValue.getTextBounds(trimFloat(mRealTimeValue), 0, trimFloat(mRealTimeValue).length(), mRectRealText);
mHandler = new MyHandler();
}
private void initSizes() {
if (mSweepAngle > 360)
throw new IllegalArgumentException("sweepAngle must less than 360 degree");
mSmallSliceRadius = mRadius - dpToPx(8);
mBigSliceRadius = mSmallSliceRadius - dpToPx(4);
mNumMeaRadius = mBigSliceRadius - dpToPx(3);
mSmallSliceCount = mBigSliceCount * mSliceCountInOneBigSlice;
mBigSliceAngle = mSweepAngle / (float) mBigSliceCount;
mSmallSliceAngle = mBigSliceAngle / (float) mSliceCountInOneBigSlice;
mGraduations = getMeasureNumbers();
switch (mModeType) {
case 0:
mStripeMode = StripeMode.NORMAL;
break;
case 1:
mStripeMode = StripeMode.INNER;
break;
case 2:
mStripeMode = StripeMode.OUTER;
break;
}
int totalRadius;
if (mStripeMode == StripeMode.OUTER) {
totalRadius = mRadius + mStripeWidth;
} else {
totalRadius = mRadius;
}
mCenterX = mCenterY = 0.0f;
if (mStartAngle <= 180 && mStartAngle + mSweepAngle >= 180) {
mViewWidth = totalRadius * 2 + getPaddingLeft() + getPaddingRight() + dpToPx(2) * 2;
} else {
float[] point1 = getCoordinatePoint(totalRadius, mStartAngle);
float[] point2 = getCoordinatePoint(totalRadius, mStartAngle + mSweepAngle);
float max = Math.max(Math.abs(point1[0]), Math.abs(point2[0]));
mViewWidth = (int) (max * 2 + getPaddingLeft() + getPaddingRight() + dpToPx(2) * 2);
}
if ((mStartAngle <= 90 && mStartAngle + mSweepAngle >= 90) ||
(mStartAngle <= 270 && mStartAngle + mSweepAngle >= 270)) {
mViewHeight = totalRadius * 2 + getPaddingTop() + getPaddingBottom() + dpToPx(2) * 2;
} else {
float[] point1 = getCoordinatePoint(totalRadius, mStartAngle);
float[] point2 = getCoordinatePoint(totalRadius, mStartAngle + mSweepAngle);
float max = Math.max(Math.abs(point1[1]), Math.abs(point2[1]));
mViewHeight = (int) (max * 2 + getPaddingTop() + getPaddingBottom() + dpToPx(2) * 2);
}
mCenterX = mViewWidth / 2.0f;
mCenterY = mViewHeight / 2.0f;
mRectArc = new RectF(mCenterX - mRadius, mCenterY - mRadius, mCenterX + mRadius, mCenterY + mRadius);
int r = 0;
if (mStripeWidth > 0) {
if (mStripeMode == StripeMode.OUTER) {
r = mRadius + dpToPx(1) + mStripeWidth / 2;
} else if (mStripeMode == StripeMode.INNER) {
r = mRadius + dpToPx(1) - mStripeWidth / 2;
}
mRectStripe = new RectF(mCenterX - r, mCenterY - r, mCenterX + r, mCenterY + r);
}
initAngle = getAngleFromResult(mRealTimeValue);
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
int widthMode = MeasureSpec.getMode(widthMeasureSpec);
int widthSize = MeasureSpec.getSize(widthMeasureSpec);
int heightMode = MeasureSpec.getMode(heightMeasureSpec);
int heightSize = MeasureSpec.getSize(heightMeasureSpec);
if (widthMode == MeasureSpec.EXACTLY) {
mViewWidth = widthSize;
} else {
if (widthMode == MeasureSpec.AT_MOST)
mViewWidth = Math.min(mViewWidth, widthSize);
}
if (heightMode == MeasureSpec.EXACTLY) {
mViewHeight = heightSize;
} else {
int totalRadius;
if (mStripeMode == StripeMode.OUTER) {
totalRadius = mRadius + mStripeWidth;
} else {
totalRadius = mRadius;
}
if (mStartAngle >= 180 && mStartAngle + mSweepAngle <= 360) {
mViewHeight = totalRadius + mCircleRadius + dpToPx(2) + dpToPx(25) +
getPaddingTop() + getPaddingBottom() + mRectRealText.height();
} else {
float[] point1 = getCoordinatePoint(totalRadius, mStartAngle);
float[] point2 = getCoordinatePoint(totalRadius, mStartAngle + mSweepAngle);
float maxY = Math.max(Math.abs(point1[1]) - mCenterY, Math.abs(point2[1]) - mCenterY);
float f = mCircleRadius + dpToPx(2) + dpToPx(25) + mRectRealText.height();
float max = Math.max(maxY, f);
mViewHeight = (int) (max + totalRadius + getPaddingTop() + getPaddingBottom() + dpToPx(2) * 2);
}
if (widthMode == MeasureSpec.AT_MOST)
mViewHeight = Math.min(mViewHeight, widthSize);
}
setMeasuredDimension(mViewWidth, mViewHeight);
}
@Override
protected void onDraw(Canvas canvas) {
if (mBgColor != 0) canvas.drawColor(mBgColor);
drawStripe(canvas);
drawMeasures(canvas);
drawArc(canvas);
drawCircleAndReadingText(canvas);
drawPointer(canvas);
}
/**
* 绘制色带
*/
private void drawStripe(Canvas canvas) {
if (mStripeMode != StripeMode.NORMAL && mStripeHighlight != null) {
for (int i = 0; i < mStripeHighlight.size(); i++) {
HighlightCR highlightCR = mStripeHighlight.get(i);
if (highlightCR.getColor() == 0 || highlightCR.getSweepAngle() == 0)
continue;
mPaintStripe.setColor(highlightCR.getColor());
if (highlightCR.getStartAngle() + highlightCR.getSweepAngle() <= mStartAngle + mSweepAngle) {
canvas.drawArc(mRectStripe, highlightCR.getStartAngle(),
highlightCR.getSweepAngle(), false, mPaintStripe);
} else {
canvas.drawArc(mRectStripe, highlightCR.getStartAngle(),
mStartAngle + mSweepAngle - highlightCR.getStartAngle(), false, mPaintStripe);
break;
}
}
}
}
/**
* 绘制刻度盘
*/
private void drawMeasures(Canvas canvas) {
mPaintArc.setStrokeWidth(dpToPx(2));
for (int i = 0; i <= mBigSliceCount; i++) {
//绘制大刻度
float angle = i * mBigSliceAngle + mStartAngle;
float[] point1 = getCoordinatePoint(mRadius, angle);
float[] point2 = getCoordinatePoint(mBigSliceRadius, angle);
if (mStripeMode == StripeMode.NORMAL && mStripeHighlight != null) {
for (int j = 0; j < mStripeHighlight.size(); j++) {
HighlightCR highlightCR = mStripeHighlight.get(j);
if (highlightCR.getColor() == 0 || highlightCR.getSweepAngle() == 0)
continue;
if (angle <= highlightCR.getStartAngle() + highlightCR.getSweepAngle()) {
mPaintArc.setColor(highlightCR.getColor());
break;
} else {
mPaintArc.setColor(mArcColor);
}
}
} else {
mPaintArc.setColor(mArcColor);
}
canvas.drawLine(point1[0], point1[1], point2[0], point2[1], mPaintArc);
//绘制圆盘上的数字
mPaintText.setTextSize(mMeasureTextSize);
String number = mGraduations[i];
mPaintText.getTextBounds(number, 0, number.length(), mRectMeasures);
if (angle % 360 > 135 && angle % 360 < 225) {
mPaintText.setTextAlign(Paint.Align.LEFT);
} else if ((angle % 360 >= 0 && angle % 360 < 45) || (angle % 360 > 315 && angle % 360 <= 360)) {
mPaintText.setTextAlign(Paint.Align.RIGHT);
} else {
mPaintText.setTextAlign(Paint.Align.CENTER);
}
float[] numberPoint = getCoordinatePoint(mNumMeaRadius, angle);
if (i == 0 || i == mBigSliceCount) {
canvas.drawText(number, numberPoint[0], numberPoint[1] + (mRectMeasures.height() / 2), mPaintText);
} else {
canvas.drawText(number, numberPoint[0], numberPoint[1] + mRectMeasures.height(), mPaintText);
}
}
//绘制小的子刻度
mPaintArc.setStrokeWidth(dpToPx(1));
for (int i = 0; i < mSmallSliceCount; i++) {
if (i % mSliceCountInOneBigSlice != 0) {
float angle = i * mSmallSliceAngle + mStartAngle;
float[] point1 = getCoordinatePoint(mRadius, angle);
float[] point2 = getCoordinatePoint(mSmallSliceRadius, angle);
if (mStripeMode == StripeMode.NORMAL && mStripeHighlight != null) {
for (int j = 0; j < mStripeHighlight.size(); j++) {
HighlightCR highlightCR = mStripeHighlight.get(j);
if (highlightCR.getColor() == 0 || highlightCR.getSweepAngle() == 0)
continue;
if (angle <= highlightCR.getStartAngle() + highlightCR.getSweepAngle()) {
mPaintArc.setColor(highlightCR.getColor());
break;
} else {
mPaintArc.setColor(mArcColor);
}
}
} else {
mPaintArc.setColor(mArcColor);
}
mPaintArc.setStrokeWidth(dpToPx(1));
canvas.drawLine(point1[0], point1[1], point2[0], point2[1], mPaintArc);
}
}
}
/**
* 绘制刻度盘的弧形
*/
private void drawArc(Canvas canvas) {
mPaintArc.setStrokeWidth(dpToPx(2));
if (mStripeMode == StripeMode.NORMAL) {
if (mStripeHighlight != null) {
for (int i = 0; i < mStripeHighlight.size(); i++) {
HighlightCR highlightCR = mStripeHighlight.get(i);
if (highlightCR.getColor() == 0 || highlightCR.getSweepAngle() == 0)
continue;
mPaintArc.setColor(highlightCR.getColor());
if (highlightCR.getStartAngle() + highlightCR.getSweepAngle() <= mStartAngle + mSweepAngle) {
canvas.drawArc(mRectArc, highlightCR.getStartAngle(),
highlightCR.getSweepAngle(), false, mPaintArc);
} else {
canvas.drawArc(mRectArc, highlightCR.getStartAngle(),
mStartAngle + mSweepAngle - highlightCR.getStartAngle(), false, mPaintArc);
break;
}
}
} else {
mPaintArc.setColor(mArcColor);
canvas.drawArc(mRectArc, mStartAngle, mSweepAngle, false, mPaintArc);
}
} else if (mStripeMode == StripeMode.OUTER) {
mPaintArc.setColor(mArcColor);
canvas.drawArc(mRectArc, mStartAngle, mSweepAngle, false, mPaintArc);
}
}
/**
* 绘制圆和文字读数
*/
private void drawCircleAndReadingText(Canvas canvas) {
//表头
mPaintText.setTextSize(mHeaderTextSize);
mPaintText.setTextAlign(Paint.Align.CENTER);
mPaintText.getTextBounds(mHeaderTitle, 0, mHeaderTitle.length(), mRectHeader);
canvas.drawText(mHeaderTitle, mCenterX, mCenterY - mHeaderRadius + mRectHeader.height(), mPaintText);
//绘制中心点的圆
mPaintPointer.setStyle(Paint.Style.FILL);
mPaintPointer.setColor(Color.parseColor("#e4e9e9"));
canvas.drawCircle(mCenterX, mCenterY, mCircleRadius, mPaintPointer);
mPaintPointer.setStyle(Paint.Style.STROKE);
mPaintPointer.setStrokeWidth(dpToPx(4));
mPaintPointer.setColor(mArcColor);
canvas.drawCircle(mCenterX, mCenterY, mCircleRadius + dpToPx(2), mPaintPointer);
// 绘制读数
canvas.drawText(trimFloat(mRealTimeValue), mCenterX,
mCenterY + mCircleRadius + dpToPx(2) + dpToPx(18), mPaintValue);
}
/**
* 绘制指针
*/
private void drawPointer(Canvas canvas) {
mPaintPointer.setStyle(Paint.Style.FILL);
mPaintPointer.setColor(Color.BLACK);
path.reset();
float[] point1 = getCoordinatePoint(mCircleRadius / 2, initAngle + 90);
path.moveTo(point1[0], point1[1]);
float[] point2 = getCoordinatePoint(mCircleRadius / 2, initAngle - 90);
path.lineTo(point2[0], point2[1]);
float[] point3 = getCoordinatePoint(mPointerRadius, initAngle);
path.lineTo(point3[0], point3[1]);
path.close();
canvas.drawPath(path, mPaintPointer);
// 绘制三角形指针底部的圆弧效果
canvas.drawCircle((point1[0] + point2[0]) / 2, (point1[1] + point2[1]) / 2,
mCircleRadius / 2, mPaintPointer);
}
/**
* 依圆心坐标，半径，扇形角度，计算出扇形终射线与圆弧交叉点的xy坐标
*/
public float[] getCoordinatePoint(int radius, float cirAngle) {
float[] point = new float[2];
double arcAngle = Math.toRadians(cirAngle); //将角度转换为弧度
if (cirAngle < 90) {
point[0] = (float) (mCenterX + Math.cos(arcAngle) * radius);
point[1] = (float) (mCenterY + Math.sin(arcAngle) * radius);
} else if (cirAngle == 90) {
point[0] = mCenterX;
point[1] = mCenterY + radius;
} else if (cirAngle > 90 && cirAngle < 180) {
arcAngle = Math.PI * (180 - cirAngle) / 180.0;
point[0] = (float) (mCenterX - Math.cos(arcAngle) * radius);
point[1] = (float) (mCenterY + Math.sin(arcAngle) * radius);
} else if (cirAngle == 180) {
point[0] = mCenterX - radius;
point[1] = mCenterY;
} else if (cirAngle > 180 && cirAngle < 270) {
arcAngle = Math.PI * (cirAngle - 180) / 180.0;
point[0] = (float) (mCenterX - Math.cos(arcAngle) * radius);
point[1] = (float) (mCenterY - Math.sin(arcAngle) * radius);
} else if (cirAngle == 270) {
point[0] = mCenterX;
point[1] = mCenterY - radius;
} else {
arcAngle = Math.PI * (360 - cirAngle) / 180.0;
point[0] = (float) (mCenterX + Math.cos(arcAngle) * radius);
point[1] = (float) (mCenterY - Math.sin(arcAngle) * radius);
}
return point;
}
/**
* 通过数值得到角度位置
*/
private float getAngleFromResult(float result) {
if (result > mMaxValue)
return mMaxValue;
return mSweepAngle * (result - mMinValue) / (mMaxValue - mMinValue) + mStartAngle;
}
/**
* float类型如果小数点后为零则显示整数否则保留
*/
public static String trimFloat(float value) {
if (Math.round(value) - value == 0) {
return String.valueOf((long) value);
}
return String.valueOf(value);
}
public int getRadius() {
return mRadius;
}
public void setRadius(int radius) {
mRadius = dpToPx(radius);
initSizes();
invalidate();
}
public int getStartAngle() {
return mStartAngle;
}
public void setStartAngle(int startAngle) {
mStartAngle = startAngle;
initSizes();
invalidate();
}
public int getSweepAngle() {
return mSweepAngle;
}
public void setSweepAngle(int sweepAngle) {
mSweepAngle = sweepAngle;
initSizes();
invalidate();
}
public int getBigSliceCount() {
return mBigSliceCount;
}
public void setBigSliceCount(int bigSliceCount) {
mBigSliceCount = bigSliceCount;
initSizes();
invalidate();
}
public int getSliceCountInOneBigSlice() {
return mSliceCountInOneBigSlice;
}
public void setSliceCountInOneBigSlice(int sliceCountInOneBigSlice) {
mSliceCountInOneBigSlice = sliceCountInOneBigSlice;
initSizes();
invalidate();
}
public int getArcColor() {
return mArcColor;
}
public void setArcColor(int arcColor) {
mArcColor = arcColor;
mPaintArc.setColor(arcColor);
if (textColorFlag) {
mTextColor = mArcColor;
mPaintText.setColor(arcColor);
}
invalidate();
}
public int getMeasureTextSize() {
return mMeasureTextSize;
}
public void setMeasureTextSize(int measureTextSize) {
mMeasureTextSize = spToPx(measureTextSize);
initSizes();
invalidate();
}
public int getTextColor() {
return mTextColor;
}
public void setTextColor(int textColor) {
mTextColor = textColor;
textColorFlag = false;
mPaintText.setColor(textColor);
invalidate();
}
public String getHeaderTitle() {
return mHeaderTitle;
}
public void setHeaderTitle(String headerTitle) {
mHeaderTitle = headerTitle;
invalidate();
}
public int getHeaderTextSize() {
return mHeaderTextSize;
}
public void setHeaderTextSize(int headerTextSize) {
mHeaderTextSize = spToPx(headerTextSize);
initSizes();
invalidate();
}
public int getHeaderRadius() {
return mHeaderRadius;
}
public void setHeaderRadius(int headerRadius) {
mHeaderRadius = dpToPx(headerRadius);
initSizes();
invalidate();
}
public int getPointerRadius() {
return mPointerRadius;
}
public void setPointerRadius(int pointerRadius) {
mPointerRadius = dpToPx(pointerRadius);
initSizes();
invalidate();
}
public int getCircleRadius() {
return mCircleRadius;
}
public void setCircleRadius(int circleRadius) {
mCircleRadius = dpToPx(circleRadius);
initSizes();
invalidate();
}
public int getMinValue() {
return mMinValue;
}
public void setMinValue(int minValue) {
mMinValue = minValue;
initSizes();
invalidate();
}
public int getMaxValue() {
return mMaxValue;
}
public void setMaxValue(int maxValue) {
mMaxValue = maxValue;
initSizes();
invalidate();
}
public float getRealTimeValue() {
return mRealTimeValue;
}
public void setRealTimeValue(float realTimeValue) {
mRealTimeValue = realTimeValue;
initSizes();
if (!mAnimEnable)
invalidate();
}
public void setRealTimeValue(float realTimeValue, boolean animEnable) {
mHandler.preValue = mRealTimeValue;
mAnimEnable = animEnable;
initSizes();
if (!mAnimEnable) {
invalidate();
} else {
mRealTimeValue = realTimeValue;
mHandler.endValue = realTimeValue;
mHandler.deltaValue = Math.abs(mHandler.endValue - mHandler.preValue);
mHandler.sendEmptyMessage(0);
}
}
public void setRealTimeValue(float realTimeValue, boolean animEnable, long duration) {
mHandler.preValue = mRealTimeValue;
mAnimEnable = animEnable;
initSizes();
if (!mAnimEnable) {
invalidate();
} else {
this.duration = duration;
mRealTimeValue = realTimeValue;
mHandler.endValue = realTimeValue;
mHandler.deltaValue = Math.abs(mHandler.endValue - mHandler.preValue);
mHandler.sendEmptyMessage(0);
}
}
public int getStripeWidth() {
return mStripeWidth;
}
public void setStripeWidth(int stripeWidth) {
mStripeWidth = dpToPx(stripeWidth);
initSizes();
invalidate();
}
public StripeMode getStripeMode() {
return mStripeMode;
}
public void setStripeMode(StripeMode mStripeMode) {
this.mStripeMode = mStripeMode;
switch (mStripeMode) {
case NORMAL:
mModeType = 0;
break;
case INNER:
mModeType = 1;
break;
case OUTER:
mModeType = 2;
break;
}
initSizes();
invalidate();
}
public int getBigSliceRadius() {
return mBigSliceRadius;
}
public void setBigSliceRadius(int bigSliceRadius) {
mBigSliceRadius = dpToPx(bigSliceRadius);
initSizes();
invalidate();
}
public int getSmallSliceRadius() {
return mSmallSliceRadius;
}
public void setSmallSliceRadius(int smallSliceRadius) {
mSmallSliceRadius = dpToPx(smallSliceRadius);
initSizes();
invalidate();
}
public int getNumMeaRadius() {
return mNumMeaRadius;
}
public void setNumMeaRadius(int numMeaRadius) {
mNumMeaRadius = dpToPx(numMeaRadius);
initSizes();
invalidate();
}
public void setStripeHighlightColorAndRange(List<HighlightCR> stripeHighlight) {
mStripeHighlight = stripeHighlight;
mPaintStripe.setStrokeWidth(mStripeWidth);
invalidate();
}
public enum StripeMode {
NORMAL,
INNER,
OUTER
}
public int getBgColor() {
return mBgColor;
}
public void setBgColor(int mBgColor) {
this.mBgColor = mBgColor;
invalidate();
}
public boolean isAnimEnable() {
return mAnimEnable;
}
public void setAnimEnable(boolean animEnable) {
mAnimEnable = animEnable;
if (mAnimEnable) {
mHandler.endValue = mRealTimeValue;
mHandler.sendEmptyMessage(0);
}
}
private int dpToPx(int dp) {
return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, dp, getResources().getDisplayMetrics());
}
private int spToPx(int sp) {
return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP, sp, getResources().getDisplayMetrics());
}
private class MyHandler extends Handler {
float preValue;
float endValue;
float deltaValue;
@Override
public void handleMessage(Message msg) {
super.handleMessage(msg);
if (msg.what == 0) {
if (preValue > endValue) {
preValue -= 1;
} else if (preValue < endValue) {
preValue += 1;
}
if (Math.abs(preValue - endValue) > 1) {
mRealTimeValue = preValue;
long t = (long) (duration / deltaValue);
sendEmptyMessageDelayed(0, t);
} else {
mRealTimeValue = endValue;
}
initAngle = getAngleFromResult(mRealTimeValue);
invalidate();
}
}
}
}
简单的一种实现方式，采用层布局，表盘在下层，指针在上层；
然后根据刻度的占比计算角度，使用RotateAnimation动画去旋转指针即可
