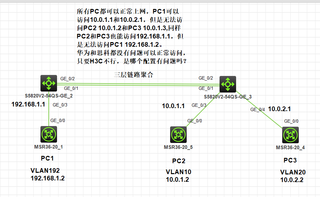

h3c三层链路聚合后，不同设备PC无法正常访问的问题



SW1：
[SW1]DIS CU
#
version 7.1.059, Alpha 7159
#
sysname SW1
#
irf mac-address persistent timer
irf auto-update enable
undo irf link-delay
irf member 1 priority 1
#
ospf 100
area 0.0.0.0
network 1.1.1.0 0.0.0.255
network 10.0.1.0 0.0.0.255
network 10.0.2.0 0.0.0.255
#
lldp global enable
#
system-working-mode standard
xbar load-single
password-recovery enable
lpu-type f-series
#
vlan 1
#
vlan 10
#
vlan 20
#
stp global enable
#
interface Route-Aggregation1
ip address 1.1.1.2 255.255.255.0
ospf 100 area 0.0.0.0
link-aggregation mode dynamic
#
interface NULL0
#
interface Vlan-interface10
ip address 10.0.1.1 255.255.255.0
#
interface Vlan-interface20
ip address 10.0.2.1 255.255.255.0
#
interface FortyGigE1/0/53
port link-mode bridge
#
interface FortyGigE1/0/54
port link-mode bridge
#
interface GigabitEthernet1/0/1
port link-mode route
combo enable fiber
port link-aggregation group 1
#
interface GigabitEthernet1/0/2
port link-mode route
combo enable fiber
port link-aggregation group 1
#
interface GigabitEthernet1/0/3
port link-mode bridge
port access vlan 10
combo enable fiber
#
interface GigabitEthernet1/0/4
port link-mode bridge
port access vlan 20
combo enable fiber
#
interface GigabitEthernet1/0/5
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/6
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/7
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/8
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/9
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/10
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/11
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/12
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/13
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/14
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/15
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/16
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/17
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/18
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/19
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/20
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/21
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/22
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/23
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/24
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/25
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/26
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/27
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/28
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/29
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/30
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/31
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/32
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/33
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/34
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/35
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/36
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/37
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/38
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/39
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/40
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/41
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/42
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/43
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/44
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/45
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/46
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/47
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/48
port link-mode bridge
combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
port link-mode bridge
combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
port link-mode bridge
combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
port link-mode bridge
combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
port link-mode bridge
combo enable fiber
#
scheduler logfile size 16
#
line class aux
user-role network-admin
#
line class tty
user-role network-operator
#
line class vty
user-role network-operator
#
line aux 0
user-role network-admin
#
line vty 0 63
user-role network-operator
#
ip route-static 0.0.0.0 0 1.1.1.1
#
radius scheme system
user-name-format without-domain
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
return

SW2:
version 7.1.059, Alpha 7159
#
sysname SW2
#
irf mac-address persistent timer
irf auto-update enable
undo irf link-delay
irf member 1 priority 1
#
ospf 100
area 0.0.0.0
network 1.1.1.0 0.0.0.255
network 192.168.1.0 0.0.0.255
#
lldp global enable
#
system-working-mode standard
xbar load-single
password-recovery enable
lpu-type f-series
#
vlan 1
#
vlan 192
#
stp global enable
#
interface Route-Aggregation1
ip address 1.1.1.1 255.255.255.0
ospf 100 area 0.0.0.0
link-aggregation mode dynamic
#
interface NULL0
#
interface Vlan-interface192
ip address 192.168.1.1 255.255.255.0
#
interface FortyGigE1/0/53
port link-mode bridge
#
interface FortyGigE1/0/54
port link-mode bridge
#
interface GigabitEthernet1/0/1
port link-mode route
combo enable fiber
port link-aggregation group 1
#
interface GigabitEthernet1/0/2
port link-mode route
combo enable fiber
port link-aggregation group 1
#
interface GigabitEthernet1/0/3
port link-mode bridge
port access vlan 192
combo enable fiber
#
interface GigabitEthernet1/0/4
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/5
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/6
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/7
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/8
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/9
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/10
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/11
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/12
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/13
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/14
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/15
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/16
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/17
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/18
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/19
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/20
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/21
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/22
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/23
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/24
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/25
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/26
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/27
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/28
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/29
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/30
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/31
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/32
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/33
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/34
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/35
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/36
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/37
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/38
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/39
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/40
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/41
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/42
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/43
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/44
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/45
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/46
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/47
port link-mode bridge
combo enable fiber
#
interface GigabitEthernet1/0/48
port link-mode bridge
combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
port link-mode bridge
combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
port link-mode bridge
combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
port link-mode bridge
combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
port link-mode bridge
combo enable fiber
#
scheduler logfile size 16
#
line class aux
user-role network-admin
#
line class tty
user-role network-operator
#
line class vty
user-role network-operator
#
line aux 0
user-role network-admin
#
line vty 0 63
user-role network-operator
#
radius scheme system
user-name-format without-domain
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
return
