Java中Servlet部署出错是什么问题

下面是错误的提示信息，可以回答一下吗？我是看黑马程序员视频学的



NOTE: Picked up JDK_JAVA_OPTIONS:  --add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.base/java.io=ALL-UNNAMED --add-opens=java.rmi/sun.rmi.transport=ALL-UNNAMED
24-Mar-2022 18:06:00.319 警告 [main] org.apache.catalina.startup.ClassLoaderFactory.validateFile Problem with directory [E:\java\apache-tomcat-8.5.31-windows-64??\apache-tomcat-8.5.31\lib], exists: [false], isDirectory: [false], canRead: [false]
24-Mar-2022 18:06:00.320 警告 [main] org.apache.catalina.startup.ClassLoaderFactory.validateFile Problem with directory [E:\java\apache-tomcat-8.5.31-windows-64??\apache-tomcat-8.5.31\lib], exists: [false], isDirectory: [false], canRead: [false]
24-Mar-2022 18:06:00.532 信息 [main] org.apache.catalina.startup.VersionLoggerListener.log Server version:        Apache Tomcat/8.5.31

已连接到服务器
[2022-03-24 06:06:01,548] 工件 web_servlet:war exploded: 正在部署工件，请稍候…
24-Mar-2022 18:06:01.686 警告 [RMI TCP Connection(3)-127.0.0.1] org.apache.tomcat.util.descriptor.web.WebXml.setVersion Unknown version string [4.0]. Default version will be used.
24-Mar-2022 18:06:01.713 严重 [RMI TCP Connection(3)-127.0.0.1] org.apache.catalina.core.ContainerBase.addChildInternal ContainerBase.addChild: start:
 org.apache.catalina.LifecycleException: Failed to start component [StandardEngine[Catalina].StandardHost[localhost].StandardContext[/web_servlet_war_exploded]]
    at org.apache.catalina.util.LifecycleBase.start(LifecycleBase.java:167)
    at org.apache.catalina.core.ContainerBase.addChildInternal(ContainerBase.java:754)
    at org.apache.catalina.core.ContainerBase.addChild(ContainerBase.java:730)
    at org.apache.catalina.core.StandardHost.addChild(StandardHost.java:734)
    at org.apache.catalina.startup.HostConfig.manageApp(HostConfig.java:1736)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:568)
    at org.apache.tomcat.util.modeler.BaseModelMBean.invoke(BaseModelMBean.java:300)
    at java.management/com.sun.jmx.interceptor.DefaultMBeanServerInterceptor.invoke(DefaultMBeanServerInterceptor.java:814)
    at java.management/com.sun.jmx.mbeanserver.JmxMBeanServer.invoke(JmxMBeanServer.java:802)
    at org.apache.catalina.mbeans.MBeanFactory.createStandardContext(MBeanFactory.java:482)
    at org.apache.catalina.mbeans.MBeanFactory.createStandardContext(MBeanFactory.java:431)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:568)
    at org.apache.tomcat.util.modeler.BaseModelMBean.invoke(BaseModelMBean.java:300)
    at java.management/com.sun.jmx.interceptor.DefaultMBeanServerInterceptor.invoke(DefaultMBeanServerInterceptor.java:814)
    at java.management/com.sun.jmx.mbeanserver.JmxMBeanServer.invoke(JmxMBeanServer.java:802)
    at java.management/com.sun.jmx.remote.security.MBeanServerAccessController.invoke(MBeanServerAccessController.java:472)
    at java.management.rmi/javax.management.remote.rmi.RMIConnectionImpl.doOperation(RMIConnectionImpl.java:1472)
    at java.management.rmi/javax.management.remote.rmi.RMIConnectionImpl$PrivilegedOperation.run(RMIConnectionImpl.java:1310)
    at java.base/java.security.AccessController.doPrivileged(AccessController.java:712)
    at java.management.rmi/javax.management.remote.rmi.RMIConnectionImpl.doPrivilegedOperation(RMIConnectionImpl.java:1412)
    at java.management.rmi/javax.management.remote.rmi.RMIConnectionImpl.invoke(RMIConnectionImpl.java:829)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:568)
    at java.rmi/sun.rmi.server.UnicastServerRef.dispatch(UnicastServerRef.java:360)
    at java.rmi/sun.rmi.transport.Transport$1.run(Transport.java:200)
    at java.rmi/sun.rmi.transport.Transport$1.run(Transport.java:197)
    at java.base/java.security.AccessController.doPrivileged(AccessController.java:712)
    at java.rmi/sun.rmi.transport.Transport.serviceCall(Transport.java:196)
    at java.rmi/sun.rmi.transport.tcp.TCPTransport.handleMessages(TCPTransport.java:587)
    at java.rmi/sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(TCPTransport.java:828)
    at java.rmi/sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(TCPTransport.java:705)
    at java.base/java.security.AccessController.doPrivileged(AccessController.java:399)
    at java.rmi/sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(TCPTransport.java:704)
    at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
    at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
    at java.base/java.lang.Thread.run(Thread.java:833)
Caused by: java.lang.IllegalArgumentException: Invalid <url-pattern> [demo1] in servlet mapping
    at org.apache.catalina.core.StandardContext.addServletMappingDecoded(StandardContext.java:3197)
    at org.apache.catalina.core.StandardContext.addServletMappingDecoded(StandardContext.java:3184)
    at org.apache.catalina.startup.ContextConfig.configureContext(ContextConfig.java:1366)
    at org.apache.catalina.startup.ContextConfig.webConfig(ContextConfig.java:1180)
    at org.apache.catalina.startup.ContextConfig.configureStart(ContextConfig.java:765)
    at org.apache.catalina.startup.ContextConfig.lifecycleEvent(ContextConfig.java:299)
    at org.apache.catalina.util.LifecycleBase.fireLifecycleEvent(LifecycleBase.java:94)
    at org.apache.catalina.core.StandardContext.startInternal(StandardContext.java:5154)
    at org.apache.catalina.util.LifecycleBase.start(LifecycleBase.java:150)
    ... 43 more

24-Mar-2022 18:06:01.715 严重 [RMI TCP Connection(3)-127.0.0.1] org.apache.tomcat.util.modeler.BaseModelMBean.invoke Exception invoking method manageApp
 java.lang.IllegalStateException: ContainerBase.addChild: start: org.apache.catalina.LifecycleException: Failed to start component [StandardEngine[Catalina].StandardHost[localhost].StandardContext[/web_servlet_war_exploded]]
    at org.apache.catalina.core.ContainerBase.addChildInternal(ContainerBase.java:758)
    at org.apache.catalina.core.ContainerBase.addChild(ContainerBase.java:730)
    at org.apache.catalina.core.StandardHost.addChild(StandardHost.java:734)
    at org.apache.catalina.startup.HostConfig.manageApp(HostConfig.java:1736)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:568)
    at org.apache.tomcat.util.modeler.BaseModelMBean.invoke(BaseModelMBean.java:300)
    at java.management/com.sun.jmx.interceptor.DefaultMBeanServerInterceptor.invoke(DefaultMBeanServerInterceptor.java:814)
    at java.management/com.sun.jmx.mbeanserver.JmxMBeanServer.invoke(JmxMBeanServer.java:802)
    at org.apache.catalina.mbeans.MBeanFactory.createStandardContext(MBeanFactory.java:482)
    at org.apache.catalina.mbeans.MBeanFactory.createStandardContext(MBeanFactory.java:431)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:568)
    at org.apache.tomcat.util.modeler.BaseModelMBean.invoke(BaseModelMBean.java:300)
    at java.management/com.sun.jmx.interceptor.DefaultMBeanServerInterceptor.invoke(DefaultMBeanServerInterceptor.java:814)
    at java.management/com.sun.jmx.mbeanserver.JmxMBeanServer.invoke(JmxMBeanServer.java:802)
    at java.management/com.sun.jmx.remote.security.MBeanServerAccessController.invoke(MBeanServerAccessController.java:472)
    at java.management.rmi/javax.management.remote.rmi.RMIConnectionImpl.doOperation(RMIConnectionImpl.java:1472)
    at java.management.rmi/javax.management.remote.rmi.RMIConnectionImpl$PrivilegedOperation.run(RMIConnectionImpl.java:1310)
    at java.base/java.security.AccessController.doPrivileged(AccessController.java:712)
    at java.management.rmi/javax.management.remote.rmi.RMIConnectionImpl.doPrivilegedOperation(RMIConnectionImpl.java:1412)
    at java.management.rmi/javax.management.remote.rmi.RMIConnectionImpl.invoke(RMIConnectionImpl.java:829)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
    at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.base/java.lang.reflect.Method.invoke(Method.java:568)
    at java.rmi/sun.rmi.server.UnicastServerRef.dispatch(UnicastServerRef.java:360)
    at java.rmi/sun.rmi.transport.Transport$1.run(Transport.java:200)
    at java.rmi/sun.rmi.transport.Transport$1.run(Transport.java:197)
    at java.base/java.security.AccessController.doPrivileged(AccessController.java:712)
    at java.rmi/sun.rmi.transport.Transport.serviceCall(Transport.java:196)
    at java.rmi/sun.rmi.transport.tcp.TCPTransport.handleMessages(TCPTransport.java:587)
    at java.rmi/sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(TCPTransport.java:828)
    at java.rmi/sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(TCPTransport.java:705)
    at java.base/java.security.AccessController.doPrivileged(AccessController.java:399)
    at java.rmi/sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(TCPTransport.java:704)
    at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
    at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
    at java.base/java.lang.Thread.run(Thread.java:833)

24-Mar-2022 18:06:01.717 严重 [RMI TCP Connection(3)-127.0.0.1] org.apache.tomcat.util.modeler.BaseModelMBean.invoke Exception invoking method createStandardContext
 javax.management.RuntimeOperationsException: Exception invoking method manageApp
    at org.apache.tomcat.util.modeler.BaseModelMBean.invoke(BaseModelMBean.java:308)
    at java.management/com.sun.jmx.interceptor.DefaultMBeanServerInterceptor.invoke(DefaultMBeanServerInterceptor.java:814)

[2022-03-24 06:06:01,724] 工件 web_servlet:war exploded: 部署工件时出错。请参阅服务器日志了解详细信息。
24-Mar-2022 18:06:11.280 信息 [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deploying web application directory [E:\java\apache-tomcat-8.5.31-windows-64位\apache-tomcat-8.5.31\webapps\manager]
24-Mar-2022 18:06:11.366 信息 [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory [E:\java\apache-tomcat-8.5.31-windows-64位\apache-tomcat-8.5.31\webapps\manager] has finished in [85] ms

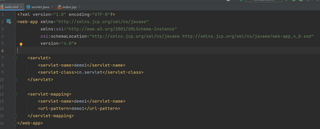

web.xml文件中的<url-pattern>demo1</url-pattern>有错误。

看一下web.xml


web.xml的url配置有问题
