vscode配置latex出现Recipe terminated with error.
问题遇到的现象和发生背景
配置latex的时候报错。环境变量已经设置了。网上的大部分回答都试过了没有用

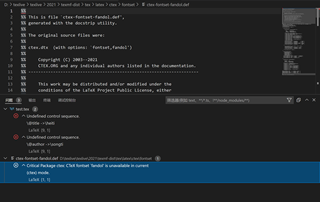

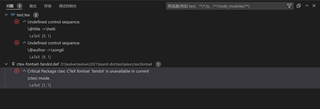

报错日志：
其中有一处错误来自texlive中的文件，代码放在最后。好像是字符集的问题？
下面是配置文件和texlive文件
问题相关代码，请勿粘贴截图
配置文件
{
"latex-workshop.latex.recipes": [{
"name": "xelatex",
"tools": [
"xelatex"
]
},
{
"name": "latexmk",
"tools": [
"latexmk"
]
},
{
"name": "pdflatex -> bibtex -> pdflatex*2",
"tools": [
"pdflatex",
"bibtex",
"pdflatex",
"pdflatex"
]
},
{
"name": "xelatex -> bibtex -> xelatex*2",
"tools": [
"xelatex",
"bibtex",
"xelatex",
"xelatex"
]
}
],
"latex-workshop.latex.tools": [{
"name": "latexmk",
"command": "latexmk",
"args": [
"-synctex=1",
"-interaction=nonstopmode",
"-file-line-error",
"-pdf",
"%DOCFILE%"
]
}, {
"name": "xelatex",
"command": "xelatex",
"args": [
"-synctex=1",
"-interaction=nonstopmode",
"-file-line-error",
"%DOCFILE%"
]
}, {
"name": "pdflatex",
"command": "pdflatex",
"args": [
"-synctex=1",
"-interaction=nonstopmode",
"-file-line-error",
"%DOCFILE%"
]
}, {
"name": "bibtex",
"command": "bibtex",
"args": [
"%DOCFILE%"
]
}],
"latex-workshop.view.pdf.viewer": "tab",
"latex-workshop.latex.clean.fileTypes": [
"*.aux",
"*.bbl",
"*.blg",
"*.idx",
"*.ind",
"*.lof",
"*.lot",
"*.out",
"*.toc",
"*.acn",
"*.acr",
"*.alg",
"*.glg",
"*.glo",
"*.gls",
"*.ist",
"*.fls",
"*.log",
"*.fdb_latexmk"
]
}
texlive文件
%%
%% This is file `ctex-fontset-fandol.def',
%% generated with the docstrip utility.
%%
%% The original source files were:
%%
%% ctex.dtx (with options: `fontset,fandol')
%%
%% Copyright (C) 2003--2021
%% CTEX.ORG and any individual authors listed in the documentation.
%% ---------------------------------------------------------------------
%%
%% This work may be distributed and/or modified under the
%% conditions of the LaTeX Project Public License, either
%% version 1.3c of this license or (at your option) any later
%% version. This version of this license is in
%% http://www.latex-project.org/lppl/lppl-1-3c.txt
%% and the latest version of this license is in
%% http://www.latex-project.org/lppl.txt
%% and version 1.3 or later is part of all distributions of
%% LaTeX version 2005/12/01 or later.
%%
%% This work has the LPPL maintenance status "maintained".
%%
%% ---------------------------------------------------------------------
%%
\GetIdInfo$Id: ctex.dtx 07425fe 2021-03-14 16:43:36 +0800 Xiangdong Zeng <xdzeng96@gmail.com> $
{Fandol fonts definition (CTEX)}
\ProvidesExplFile{ctex-fontset-fandol.def}
{\ExplFileDate}{2.5.6}{\ExplFileDescription}
\ctex_fontset_case:nnnn
{ \ctex_fontset_error:n { fandol } }
{
\ctex_zhmap_case:nnn
{
\setCJKmainfont { FandolSong-Regular.otf }
[
cmap = UniGB-UTF16-H,
BoldFont = FandolSong-Bold.otf,
ItalicFont = FandolKai-Regular.otf
]
\setCJKsansfont { FandolHei-Regular.otf }
[ cmap = UniGB-UTF16-H, BoldFont = FandolHei-Bold.otf ]
\setCJKmonofont { FandolFang-Regular.otf }
[ cmap = UniGB-UTF16-H ]
\setCJKfamilyfont { zhsong } { FandolSong-Regular.otf }
[ cmap = UniGB-UTF16-H, BoldFont = FandolSong-Bold.otf ]
\setCJKfamilyfont { zhhei } { FandolHei-Regular.otf }
[ cmap = UniGB-UTF16-H, BoldFont = FandolHei-Bold.otf ]
\setCJKfamilyfont { zhfs } { FandolFang-Regular.otf }
[ cmap = UniGB-UTF16-H ]
\setCJKfamilyfont { zhkai } { FandolKai-Regular.otf }
[ cmap = UniGB-UTF16-H ]
\ctex_punct_set:n { fandol }
\ctex_punct_map_family:nn { \CJKrmdefault } { zhsong }
\ctex_punct_map_family:nn { \CJKsfdefault } { zhhei }
\ctex_punct_map_family:nn { \CJKttdefault } { zhfs }
\ctex_punct_map_bfseries:nn { \CJKrmdefault, zhsong } { zhsongb }
\ctex_punct_map_bfseries:nn { \CJKsfdefault, zhhei } { zhheib }
\ctex_punct_map_itshape:nn { \CJKrmdefault } { zhkai }
}
{
\ctex_load_zhmap:nnnn { rm } { zhhei } { zhfs } { fandol }
\ctex_punct_set:n { fandol }
\ctex_punct_map_family:nn { \CJKrmdefault } { zhsong }
\ctex_punct_map_bfseries:nn { \CJKrmdefault } { zhhei }
\ctex_punct_map_itshape:nn { \CJKrmdefault } { zhkai }
}
{ \ctex_fontset_error:n { fandol } }
}
{
\ctex_set_upfonts:nnnnnn
{ FandolSong-Regular.otf }
{ FandolSong-Bold.otf }
{ FandolKai-Regular.otf }
{ FandolHei-Regular.otf }
{ FandolHei-Bold.otf }
{ FandolFang-Regular.otf }
\ctex_set_upfamily:nnn { zhsong } { upzhserif } { upzhserifb }
\ctex_set_upfamily:nnn { zhhei } { upzhsans } { upzhsansb }
\ctex_set_upfamily:nnn { zhfs } { upzhmono } {}
\ctex_set_upfamily:nnn { zhkai } { upzhserifit } {}
}
{
\setCJKmainfont { FandolSong-Regular }
[
Extension = .otf,
BoldFont = FandolSong-Bold,
ItalicFont = FandolKai-Regular
]
\setCJKsansfont { FandolHei-Regular }
[ Extension = .otf, BoldFont = FandolHei-Bold ]
\setCJKmonofont { FandolFang-Regular }
[ Extension = .otf ]
\setCJKfamilyfont { zhsong } { FandolSong-Regular }
[ Extension = .otf, BoldFont = FandolSong-Bold ]
\setCJKfamilyfont { zhhei } { FandolHei-Regular }
[ Extension = .otf, BoldFont = FandolHei-Bold ]
\setCJKfamilyfont { zhfs } { FandolFang-Regular }
[ Extension = .otf ]
\setCJKfamilyfont { zhkai } { FandolKai-Regular }
[ Extension = .otf ]
}
\NewDocumentCommand \songti { } { \CJKfamily { zhsong } }
\NewDocumentCommand \heiti { } { \CJKfamily { zhhei } }
\NewDocumentCommand \fangsong { } { \CJKfamily { zhfs } }
\NewDocumentCommand \kaishu { } { \CJKfamily { zhkai } }
%%
%%
%% End of file `ctex-fontset-fandol.def'.
在settings.json文件里面替换下面代码，已解决。希望能帮到你
{
// Latex workshop
"latex-workshop.latex.tools": [
{
"name": "latexmk",
"command": "latexmk",
"args": [
"-synctex=1",
"-interaction=nonstopmode",
"-file-line-error",
"-pdf",
"%DOC%"
]
},
{
"name": "xelatex",
"command": "xelatex",
"args": [
"-synctex=1",
"-interaction=nonstopmode",
"-file-line-error",
"%DOC%"
]
},
{
"name": "pdflatex",
"command": "pdflatex",
"args": [
"-synctex=1",
"-interaction=nonstopmode",
"-file-line-error",
"%DOC%"
]
},
{
"name": "bibtex",
"command": "bibtex",
"args": [
"%DOCFILE%"
]
}
],
"latex-workshop.latex.recipes": [
{
"name": "xelatex",
"tools": [
"xelatex"
]
},
{
"name": "latexmk",
"tools": [
"latexmk"
]
},
{
"name": "pdflatex -> bibtex -> pdflatex*2",
"tools": [
"pdflatex",
"bibtex",
"pdflatex",
"pdflatex"
]
}
],
"latex-workshop.view.pdf.viewer": "tab",
"latex-workshop.latex.clean.enabled": true,
"latex-workshop.latex.clean.fileTypes": [
"*.aux",
"*.bbl",
"*.blg",
"*.idx",
"*.ind",
"*.lof",
"*.lot",
"*.out",
"*.toc",
"*.acn",
"*.acr",
"*.alg",
"*.glg",
"*.glo",
"*.gls",
"*.ist",
"*.fls",
"*.log",
"*.fdb_latexmk"
],
}
请按照如下方式进行系统变量的添加
对windows，win+R 然后输入sysdm.cpl 在高级中选择环境变量
找到path环境变量，将txtlive中的bin/win32路径添加进去
根据你安装的路径找到你的bin文件
