echarts仪表盘颜色修改


那个蓝色的进度条颜色我知道怎么改,可是不知道怎么改蓝色进度条下面的那个颜色

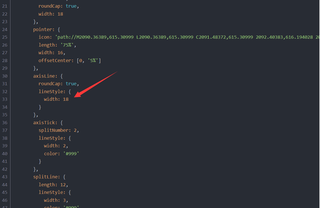

箭头指向的那个



option = {
  series: [
    {
      type: 'gauge',
      startAngle: 180,
      endAngle: 0,
      min: 0,
      max: 240,
      splitNumber: 12,
      color:[' #5470c6','rgb(100,100,223,123)'],
      itemStyle: {
        color: '#58D9F9',
        shadowColor: 'rgba(0,138,255,0.45)',
        shadowBlur: 10,
        shadowOffsetX: 2,
        shadowOffsetY: 2
      },
      progress: {
        show: true,
        roundCap: true,
        width: 18
      },
      pointer: {
        icon: 'path://M2090.36389,615.30999 L2090.36389,615.30999 C2091.48372,615.30999 2092.40383,616.194028 2092.44859,617.312956 L2096.90698,728.755929 C2097.05155,732.369577 2094.2393,735.416212 2090.62566,735.56078 C2090.53845,735.564269 2090.45117,735.566014 2090.36389,735.566014 L2090.36389,735.566014 C2086.74736,735.566014 2083.81557,732.63423 2083.81557,729.017692 C2083.81557,728.930412 2083.81732,728.84314 2083.82081,728.755929 L2088.2792,617.312956 C2088.32396,616.194028 2089.24407,615.30999 2090.36389,615.30999 Z',
        length: '75%',
        width: 16,
        offsetCenter: [0, '5%']
      },
      axisLine: {
        roundCap: true,
        lineStyle: {
          width: 18
        }
      },
      axisTick: {
        splitNumber: 2,
        lineStyle: {
          width: 2,
          color: '#999'
        }
      },
      splitLine: {
        length: 12,
        lineStyle: {
          width: 3,
          color: '#999'
        }
      },
      axisLabel: {
        distance: 30,
        color: '#999',
        fontSize: 20
      },
      title: {
        show: false
      },
      detail: {
        backgroundColor: '#fff',
        borderColor: '#999',
        borderWidth: 2,
        width: '60%',
        lineHeight: 40,
        height: 40,
        borderRadius: 8,
        offsetCenter: [0, '35%'],
        valueAnimation: true,
        formatter: function (value) {
          return '{value|' + value.toFixed(0) + '}{unit|km/h}';
        },
        rich: {
          value: {
            fontSize: 50,
            fontWeight: 'bolder',
            color: '#777'
          },
          unit: {
            fontSize: 20,
            color: '#999',
            padding: [0, 0, -20, 10]
          }
        }
      },
      data: [
        {
          value: 100
        }
      ]
    }
  ]
};
     axisLine: {
        roundCap: true,
        lineStyle: {
          width: 18,
          color: [[1, '#91c7ae']]
        }
      },


再你的代码中width下面添加一个color就行了


https://blog.csdn.net/GRAY_KEY/article/details/82534892

可以看看这个
