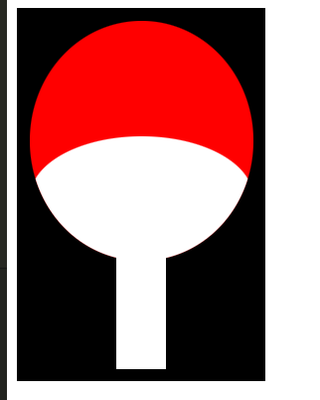

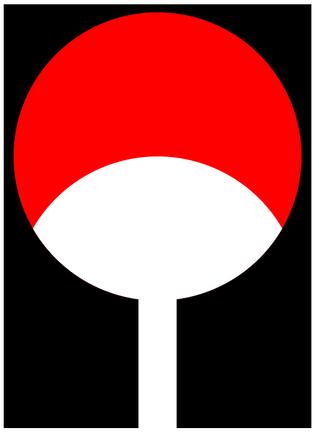

只用html和css怎么做出这个效果?



突然接到这个要求,只用HTML和css做这个样式,希望给下指点,真想不出这东西怎么弄



  <!--黑背景-->
  <div style="background:black;height:100vh;width:100%;">
    <!--红色圆-->
    <div style="background:red;width:300px;height:300px;border-radius:150px;overflow:hidden;">
        <!--白色圆-->
        <div style="background:white;width:300px;height:300px;border-radius:150px;margin-top:200px;">
        </div>
    </div>
    <!--白色柄-->
    <div style="width:30px;height:200px;background:white;margin-left:135px;margin-top:-10px;"></div>
  </div>

就是圆里边套个圆,这个红色的大圆 overflow:hidden就是溢出隐藏,然后里边的白圆用定位或者直接margin-top向下位移就行了,超出的时候会自动隐藏的,下面那根棒子就是个长方形盒子,拼上去就行了,如果感觉拼接不完美,把下面的长方形margin-top:给个负数向上移一下就行。


<html lang="en">
<head>
  <meta charset="utf-8">
  <meta content="email=no" name="format-detection">
  <meta content="telephone=no" name="format-detection">
  <meta name="msapplication-tap-highlight" content="no">
  <meta content="yes" name="apple-mobile-web-app-capable">
  <meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1">
  <meta content="black" name="apple-mobile-web-app-status-bar-style">
  <meta content="width=device-width,initial-scale=1.0,maximum-scale=1.0,user-scalable=no" name="viewport">
  <link rel="shortcut icon" href="https://www.tyfo.com/market/content/home_image/favicon.ico" type="image/x-icon"/>
  <title></title>
  <style>
    .rui-radius50{
      width: 100px;
      height: 100px;
      border-radius: 50%;
      background-color: red;
      position: relative;
      overflow: hidden;
    }
    .rui-radius25{
      width: 100px;
      height: 100px;
      border-radius: 50%;
      background-color: #fff;
      position: absolute;
      top: 50px;
      left: 0;
    }
    .rui-line25{
      width: 10px;
      height: 100px;
      background-color: #fff;
      position: absolute;
      top: 100px;
      left: 50%;
      transform: translateX(-50%);
    }
  </style>
</head>
<body style="background-color: #000;">
  <div style="position: relative;width: 100px;">
    <div class="rui-radius50">
      <div class="rui-radius25"></div>
    </div>
    <div class="rui-line25"></div>
  </div>
</body>
</html>




<!DOCTYPE html>
<html>
    <head>
        <meta charset="utf-8">
        <title></title>
        <script src="./js/jquery.js" type="text/javascript" charset="utf-8"></script>
        <style type="text/css">

            .box{
                width: 200px;
                height: 300px;
                background-color: #000;
                flex-flow: row;
                display: flex;
                align-items: center;
                flex-direction: column;
            }
            .yuan{
                width: 180px;
                height: 200px;
                background-color: red;
                border-radius: 50%;
                overflow: hidden;
                position: relative;
                margin-top: 10px;
            }
            .white{
                position: absolute;
                bottom: 0;
                background-color: #FFFFFF;
                width: 180px;
                height: 100px;
                border-radius: 80%;
            }
            .cuboid{
                width: 40px;
                height: 100px;
                background-color: #FFFFFF;
                position: relative;
                top: -10px;
            }
        </style>
    </head>
    <body>
        <div class="box">
            <div class="yuan">
                <div class="white"></div>
            </div>
            <div class="cuboid">

            </div>
        </div>
        <script>

        </script>
    </body>
</html>

小伙子,我看你骨骼精奇,要不要跟我学前端呀


<!DOCTYPE html>
<html lang="en">

<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Document</title>
</head>
<style>

</style>

<body>
  <div
    style="background-color: black;width: 400px;height: 550px;display: flex;flex-direction: column;align-items: center;">
    <div
      style="background-color: red;border-radius: 50%;width: 375px;height: 375px;margin-top: 10px;overflow: hidden;position: relative;margin-bottom: -10px;">
      <div style="background-color: white;border-radius: 50%; width: 375px;height: 375px;position: absolute;top:50%;">
      </div>
    </div>
    <div style="flex:1;width: 50px;background-color: white;z-index: 1;"></div>
  </div>
</body>
<script>

</script>

</html>


自己再调调


<!DOCTYPE html>
    <html lang="en">

    <head>
        <meta charset="UTF-8">
        <meta http-equiv="X-UA-Compatible" content="IE=edge">
        <meta name="viewport" content="width=device-width, initial-scale=1.0">
        <title>Document</title>
<style>
    .racket{
        background: black;
        padding: 10px;
        position: fixed;
    }
    .paddles{
        width: 200px;
        height: 200px;
        border-radius: 50%;
        background: red;
        position: relative;
        z-index: 1;
        overflow: hidden;
    }
    .pattern{
        width: 180px;
        height: 180px;
        border-radius: 50%;
        background: white;
        position: relative;
        margin: auto;
        top: 100px;
    }
    .club{
        width: 20px;
        height: 140px;
        background: white;
        margin: -10px auto 0 auto;
    }
</style>
</head>

<body>
<div class="racket">
    <div class="paddles">
        <div class="pattern"></div>
    </div>
    <div class="club">

    </div>
</div>
</body>
</html>

写起来还挺有意思的,宽高自己根据设计图慢慢调


<!DOCTYPE html>
<html>
    <head>
        <meta charset="utf-8">
        <title></title>
        <link href="//s02.mifile.cn/assets/css/home.edbd5755.css" rel="preload" as="style">
        <script src="https://code.jquery.com/jquery-3.6.0.js"
            integrity="sha256-H+K7U5CnXl1h5ywQfKtSj8PCmoN9aaq30gDh27Xc0jk=" crossorigin="anonymous"></script>
        <style type="text/css">
            * {
                margin: 0;
                padding: 0;
            }

            li {
                list-style: none;
            }

            a {
                text-decoration: none;
            }

            .box {
                width: 400px;
                height: 600px;
                background: black;
                position: relative;
                z-index: 5;

            }

            .redCircle {
                width: 360px;
                height: 360px;
                border-radius: 360px;
                background: red;
                position: relative;
                z-index: 6;
                margin: 0 auto;
                overflow: hidden;
                margin-top: 50px;
            }

            .whiteCircle {
                width: 300px;
                height: 300px;
                border-radius: 360px;
                background:white;
                position: relative;
                z-index: 7;
                margin: 0 auto;
                margin-top: 170px;
            }
            .whiteSquare{
                width: 40px;
                height: 262px;
                position: absolute;
                bottom: 0;
                left: 50%;
                margin-left: -20px;
                z-index: 6;
                background: white;
            }
        </style>
    </head>
    <body>
        <div class="box">
            <div class="redCircle">
                <div class="whiteCircle"></div>
            </div>
            <div class="whiteSquare"></div>
        </div>
    </body>
    <script type="text/javascript">

    </script>
</html>
