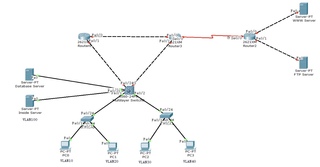

思科三层交换机与两个路由器实现OSPF自由

在三层交换机和R0,R3上实现OSPF路由，采用单区域模式，实现企业网络内部互联在三层交换机上设置访问控制列表，实现VLAN10主机可以访问所有网络，所有主机都能访问Inside Server，但只有VLAN10和30的主机可以访问Database ServerIP地址及子网划分
表一、IP地址规划表
设备
接口
IP地址/掩码
网关
WWW server
Fa 0
209.165.42.1/24
209.165.42.254
FTP server
Fa 0
209.165.43.1/24
209.165.43.254
R2
Fa0/0
209.165.42.254/24
N/A

Fa0/1
209.165.43.254/24
N/A

S0/0
61.159.62.11/24
/
R3
S0/0
61.159.62.12/24
/

FA0/0
172.16.2.1/24
/

FA0/1
172.16.1.1/24
/
R0
FA0/0
172.16.2.2/24
/

FA0/1
172.16.0.1/24
/
MS0
FA0/24
172.16.0.2/24
/

FA0/23
172.16.1.2/24
/

VLAN10
172.16.10.254/24
/

VLAN20
172.16.20.254/24
/

VLAN30
172.16.30.254/24
/

VLAN40
172.16.40.254/24
/

VLAN99
172.16.99.254/24
/

VLAN100
172.16.100.254/24
/
PC0
FA0
172.16.10.1/24
172.16.10.254
PC1
FA0
172.16.20.1/24
172.16.20.254
PC2
FA0
172.16.30.1/24
172.16.30.254
PC3
FA0
172.16.40.1/24
172.16.40.254
DATABASE
FA0
172.16.100.1/24
172.16.100.254
INSIDE
FA0
172.16.100.2/24
172.16.100.254
SW0
Vlan99
172.16.99.1/24
172.16.99.254
SW1
Vlan99
172.16.99.2/24
172.16.99.254

主要两个路由配置吧
