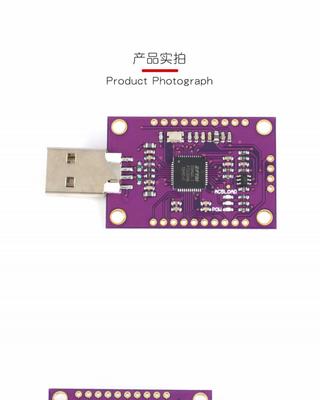

网购的usb转gpio模块

import sys
from sys import argv,exit
from pygpio import BaseGPIO as GPIO

IN1 = 1
def setup_gpio():
GPIO.setup(IN1, OUT)

if name == 'main':
app = QApplication(sys.argv)
setup_gpio()
sys.exit(app.exec_())
出现如下报错
File "D:\lpcj\Qt-Camera\lpcj3.py", line 166, in setup_gpio
GPIO.setup(IN1, OUT)

NameError: name 'OUT' is not defined

打开gpio.py文件，有内容如下

Copyright (c) 2014 Adafruit Industries

Author: Tony DiCola

Permission is hereby granted, free of charge, to any person obtaining a copy

of this software and associated documentation files (the "Software"), to deal

in the Software without restriction, including without limitation the rights

to use, copy, modify, merge, publish, distribute, sublicense, and/or sell

copies of the Software, and to permit persons to whom the Software is

furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in

all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE

AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER

LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,

OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN

THE SOFTWARE.

import Adafruit_GPIO.Platform as Platform

OUT = 0
IN = 1
HIGH = True
LOW = False

RISING = 1
FALLING = 2
BOTH = 3

PUD_OFF = 0
PUD_DOWN = 1
PUD_UP = 2
class BaseGPIO(object):
"""Base class for implementing simple digital IO for a platform.
Implementors are expected to subclass from this and provide an implementation
of the setup, output, and input functions."""

def setup(self, pin, mode, pull_up_down=PUD_OFF):
    """Set the input or output mode for a specified pin.  Mode should be
    either OUT or IN."""
    raise NotImplementedError

GPIO.setup(IN1, GPIO.OUT)

在源码中OUT有定义和赋值，即OUT=0，在你的代码中缺少这行。添加上去运行试试。

加一行from pygpio import * 试试
