##编程环境是vscode python版本是3.10.0
故障如下:

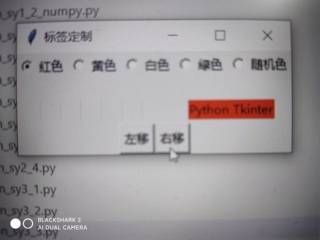

当我试图利用右移按钮实现文本的平移时,每按4下会留下一条竖线残影,如图:
有意思的是,当文本移动到中央偏右的时候,残影不再生成。这个残影当鼠标移出框外时自动消失,左移同样,已经使用过tk.canvas.update()对画布进行更新,位置在处理函数的最后一行也尝试过,都消除不了,求解!
附上代码:
import tkinter as tk
import random
from tkinter.constants import LEFT, RIGHT
from turtle import bgcolor, fillcolor
def RGB():
return ["#"+''.join([random.choice('0123456789ABCDEF') for j in range(6)])]
class ControlText:
def __init__(self):
window=tk.Tk()
window.title("标签定制")
colorframe = tk.Frame(window)
colorframe.pack()
self.str = tk.StringVar()
self.str.set('R')
rbRed = tk.Radiobutton(colorframe, text = "红色", variable = self.str, value = 'R', command = self.setColor)
rbRed.pack(side = LEFT)
rbYellow = tk.Radiobutton(colorframe, text = "黄色", variable = self.str, value = 'Y', command = self.setColor)
rbYellow.pack(side = LEFT)
rbWhite = tk.Radiobutton(colorframe, text = "白色", variable = self.str, value = 'W', command = self.setColor)
rbWhite.pack(side = LEFT)
rbBlue = tk.Radiobutton(colorframe, text = "绿色", variable = self.str, value = 'G', command = self.setColor)
rbBlue.pack(side = LEFT)
rbRand = tk.Radiobutton(colorframe, text = "随机色", variable = self.str, value = 'D', command = self.setColor)
rbRand.pack(side = LEFT)
self.width = 250
self.canvas = tk.Canvas(window, width = self.width, height = 40)
self.canvas.pack()
self.x = 42
self.label = tk.Label(self.canvas, bg = "red", bd = 0, text = "Python Tkinter")
self.canvas.create_window(self.x, 30, window = self.label, tags = "PT")
frame = tk.Frame(window)
frame.pack()
LButton = tk.Button(frame, text = "左移", command = self.leftMove)
LButton.pack(side = LEFT)
RButton = tk.Button(frame, text = "右移", command = self.rightMove)
RButton.pack(side = RIGHT)
window.mainloop()
def setColor(self):
if self.str.get() =='R':
self.label["bg"] = "red"
elif self.str.get() =='Y':
self.label["bg"] = "yellow"
elif self.str.get() =='W':
self.label["bg"] = "white"
elif self.str.get() =='G':
self.label["bg"] = "green"
else:
self.label["bg"] = RGB()
def leftMove(self):
self.canvas.move("PT", -5, 0)
self.canvas.update()
if self.x > 42:
self.x -= 5
else:
self.x = self.width - 42
self.canvas.delete("PT")
color = self.label["bg"]
self.canvas.create_window(self.x, 30, window = self.label, tags = "PT")
def rightMove(self):
self.canvas.move("PT", 5, 0)
self.canvas.update()
if self.x < self.width - 42:
self.x += 5
else:
self.x = 42
self.canvas.delete("PT")
color = self.label["bg"]
self.canvas.create_window(self.x, 30, window = self.label, tags = "PT")
ControlText()
你好,我是有问必答小助手,非常抱歉,本次您提出的有问必答问题,技术专家团超时未为您做出解答
本次提问扣除的有问必答次数,将会以问答VIP体验卡(1次有问必答机会、商城购买实体图书享受95折优惠)的形式为您补发到账户。
因为有问必答VIP体验卡有效期仅有1天,您在需要使用的时候【私信】联系我,我会为您补发。
所以你是用这种方法的吧:创建tkinter label组件,不断删除重绘位置已达到移动效果。
出现你这种情况有两种原因:
因此,我建议你使用画布自己的绘制功能,通过绘制文本和矩形框,绑定同样的tag,通过这个tag使用画布的move函数。
具体你可以看我的专栏“tkinter绘制虚拟组件”,其中按钮和进度条的绘制可能对你有帮助。
关于画布的具体使用见https://blog.csdn.net/qq_41556318/article/details/85272026
