eNSP模拟器下，vlan不通

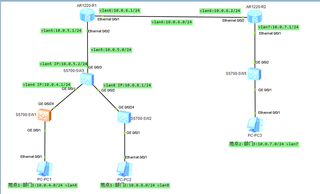

PC1：10.0.4.2
PC2：10.0.8.2
PC3：10.0.7.2
问题：PC1 ping10.0.5.1通，PC1 ping10.0.6.1不通
PC2ping10.0.5.1不通，
PC3ping10.0.6.2通，PC3ping 10.0.6.1不通
R1的配置和路由表：
配置
[R1]display current-configuration all
[V200R003C00]
#
sysname R1
#
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
#
autosave interval on
autosave interval 10
autosave time 08:10:01
#
clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
drop illegal-mac alarm
#
vlan batch 5 to 6
#
wlan ac-global carrier id other ac id 0
#
set cpu-usage threshold 80 restore 75
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
local-user admin service-type http
#
firewall zone Local
priority 15
#
interface Vlanif5
description Didian1De
ip address 10.0.5.1 255.255.255.0
#
interface Vlanif6
ip address 10.0.6.1 255.255.255.0
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
port link-type trunk
port trunk allow-pass vlan 6
#
interface Ethernet0/0/2
port link-type trunk
port trunk allow-pass vlan 5
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface GigabitEthernet0/0/0
#
interface GigabitEthernet0/0/1
#
interface NULL0
#
ip route-static 0.0.0.0 0.0.0.0 10.0.6.2
ip route-static 10.0.4.0 255.255.255.0 10.0.5.2
ip route-static 10.0.8.0 255.255.255.0 10.0.6.2
#
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
路由表
[R1]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
Destinations : 13 Routes : 13
Destination/Mask Proto Pre Cost Flags NextHop Interface
0.0.0.0/0 Static 60 0 RD 10.0.6.2 Vlanif6
10.0.4.0/24 Static 60 0 RD 10.0.5.2 Vlanif5
10.0.5.0/24 Direct 0 0 D 10.0.5.1 Vlanif5
10.0.5.1/32 Direct 0 0 D 127.0.0.1 Vlanif5
10.0.5.255/32 Direct 0 0 D 127.0.0.1 Vlanif5
10.0.6.0/24 Direct 0 0 D 10.0.6.1 Vlanif6
10.0.6.1/32 Direct 0 0 D 127.0.0.1 Vlanif6
10.0.6.255/32 Direct 0 0 D 127.0.0.1 Vlanif6
10.0.8.0/24 Static 60 0 RD 10.0.6.2 Vlanif6
127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0
127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0
127.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
255.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
SW3的配置和路由表：
配置
[SW3]display current-configuration
#
sysname SW3
#
info-center source default channel 0 trap state off level warning
#
vlan batch 4 to 5 8
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif4
ip address 10.0.4.1 255.255.255.0
#
interface Vlanif5
ip address 10.0.5.2 255.255.255.0
#
interface Vlanif8
ip address 10.0.8.1 255.255.255.0
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 4 to 5 8
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 4 to 5 8
#
interface GigabitEthernet0/0/3
port link-type trunk
port trunk allow-pass vlan 4 to 5 8
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
ip route-static 0.0.0.0 0.0.0.0 10.0.5.1
#
user-interface con 0
user-interface vty 0 4
#
return
路由表
[SW3]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
Destinations : 9 Routes : 9
Destination/Mask Proto Pre Cost Flags NextHop Interface
0.0.0.0/0 Static 60 0 RD 10.0.5.1 Vlanif5
10.0.4.0/24 Direct 0 0 D 10.0.4.1 Vlanif4
10.0.4.1/32 Direct 0 0 D 127.0.0.1 Vlanif4
10.0.5.0/24 Direct 0 0 D 10.0.5.2 Vlanif5
10.0.5.2/32 Direct 0 0 D 127.0.0.1 Vlanif5
10.0.8.0/24 Direct 0 0 D 10.0.8.1 Vlanif8
10.0.8.1/32 Direct 0 0 D 127.0.0.1 Vlanif8
127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0
127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0
R2的配置和路由表
配置
R2]display current-configuration
[V200R003C00]
#
sysname R2
#
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
#
autosave interval on
autosave interval 10
#
clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load flash:/portalpage.zip
#
drop illegal-mac alarm
#
vlan batch 6 to 7
#
wlan ac-global carrier id other ac id 0
#
set cpu-usage threshold 80 restore 75
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
local-user admin service-type http
#
firewall zone Local
priority 15
#
interface Vlanif6
ip address 10.0.6.2 255.255.255.0
#
interface Vlanif7
ip address 10.0.7.1 255.255.255.0
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
port link-type trunk
port trunk allow-pass vlan 7
#
interface Ethernet0/0/2
port link-type trunk
port trunk allow-pass vlan 6
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface GigabitEthernet0/0/0
#
interface GigabitEthernet0/0/1
#
interface NULL0
#
rip 1
network 10.0.0.0
#
ip route-static 0.0.0.0 0.0.0.0 10.0.6.1
#
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
路由表
[R2]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
Destinations : 11 Routes : 11
Destination/Mask Proto Pre Cost Flags NextHop Interface
0.0.0.0/0 Static 60 0 RD 10.0.6.1 Vlanif6
10.0.6.0/24 Direct 0 0 D 10.0.6.2 Vlanif6
10.0.6.2/32 Direct 0 0 D 127.0.0.1 Vlanif6
10.0.6.255/32 Direct 0 0 D 127.0.0.1 Vlanif6
10.0.7.0/24 Direct 0 0 D 10.0.7.1 Vlanif7
10.0.7.1/32 Direct 0 0 D 127.0.0.1 Vlanif7
10.0.7.255/32 Direct 0 0 D 127.0.0.1 Vlanif7
127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0
127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0
127.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
255.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
