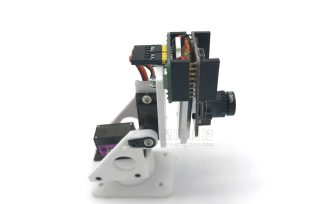

openmv追小球的云台舵机信号线连接哪个引脚

import sensor, image, time

from pid import PID
from pyb import Servo

pan_servo=Servo(1)
tilt_servo=Servo(2)

pan_servo.calibration(500,2500,500)
tilt_servo.calibration(500,2500,500)

red_threshold  = (13, 49, 18, 61, 6, 47)

pan_pid = PID(p=0.07, i=0, imax=90) #脱机运行或者禁用图像传输，使用这个PID
tilt_pid = PID(p=0.05, i=0, imax=90) #脱机运行或者禁用图像传输，使用这个PID
#pan_pid = PID(p=0.1, i=0, imax=90)#在线调试使用这个PID
#tilt_pid = PID(p=0.1, i=0, imax=90)#在线调试使用这个PID

sensor.reset() # Initialize the camera sensor.
sensor.set_pixformat(sensor.RGB565) # use RGB565.
sensor.set_framesize(sensor.QQVGA) # use QQVGA for speed.
sensor.skip_frames(10) # Let new settings take affect.
sensor.set_auto_whitebal(False) # turn this off.
clock = time.clock() # Tracks FPS.

def find_max(blobs):
    max_size=0
    for blob in blobs:
        if blob[2]*blob[3] > max_size:
            max_blob=blob
            max_size = blob[2]*blob[3]
    return max_blob

while(True):
    clock.tick() # Track elapsed milliseconds between snapshots().
    img = sensor.snapshot() # Take a picture and return the image.

    blobs = img.find_blobs([red_threshold])
    if blobs:
        max_blob = find_max(blobs)
        pan_error = max_blob.cx()-img.width()/2
        tilt_error = max_blob.cy()-img.height()/2

        print("pan_error: ", pan_error)

        img.draw_rectangle(max_blob.rect()) # rect
        img.draw_cross(max_blob.cx(), max_blob.cy()) # cx, cy

        pan_output=pan_pid.get_pid(pan_error,1)/2
        tilt_output=tilt_pid.get_pid(tilt_error,1)
        print("pan_output",pan_output)
        pan_servo.angle(pan_servo.angle()+pan_output)
        tilt_servo.angle(tilt_servo.angle()-tilt_output)

您好，我是有问必答小助手，您的问题已经有小伙伴解答了，您看下是否解决，可以追评进行沟通哦~

如果有您比较满意的答案 / 帮您提供解决思路的答案，可以点击【采纳】按钮，给回答的小伙伴一些鼓励哦～～

ps:问答VIP仅需29元，即可享受5次/月 有问必答服务，了解详情>>>https://vip.csdn.net/askvip?utm_source=1146287632

参考一下：https://blog.csdn.net/qq_44891298/article/details/113338179，希望对你有帮助
