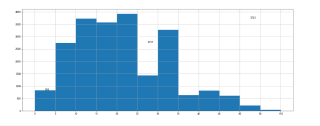

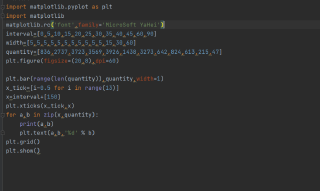

python用matplotlib绘图添加标签怎么添加,我这么添加标签乱飞

import matplotlib.pyplot as plt
import matplotlib
matplotlib.rc('font',family='MicroSoft YaHei')
interval=[0,5,10,15,20,25,30,35,40,45,60,90]
width=[5,5,5,5,5,5,5,5,5,5,5,15,30,60]
quantity=[836,2737,3723,3569,3926,1438,3273,642,824,613,215,47]
plt.figure(figsize=(20,8),dpi=60)

plt.bar(range(len(quantity)),quantity,width=1)
x_tick=[i-0.5 for i in range(13)]
x=interval+[150]
plt.xticks(x_tick,x)
for a,b in zip(x,quantity):
    print(a,b)
    plt.text(a,b,'%d' % b)
plt.grid()
plt.show()

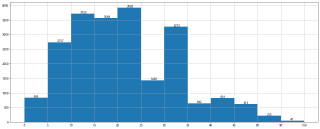

zip里面改了一下, x只是显示的内容, x_tick才是真正的位置:

import matplotlib.pyplot as plt
import matplotlib
matplotlib.rc('font',family='MicroSoft YaHei')
interval=[0,5,10,15,20,25,30,35,40,45,60,90]
width=[5,5,5,5,5,5,5,5,5,5,5,15,30,60]
quantity=[836,2737,3723,3569,3926,1438,3273,642,824,613,215,47]
plt.figure(figsize=(20,8),dpi=60)

plt.bar(range(len(quantity)),quantity,width=1)
x_tick=[i-0.5 for i in range(13)]
x=interval+[150]
plt.xticks(x_tick,x)
for a,b in zip(x_tick,quantity):
    print(a,b)
    plt.text(a+0.4,b+10,'%d' % b)
plt.grid()
plt.show()

x轴数数值, 就根据数值大小来确定位置的.

 plt.text(a,b,'%d' % b)

这里面的a是x, x为什么加上150呢

import matplotlib.pyplot as plt
import matplotlib

matplotlib.rc('font', family='MicroSoft YaHei')
interval = [0, 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55]
width = [5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5]
quantity = [836, 2737, 3723, 3569, 3926, 1438, 3273, 642, 824, 613, 215, 47]
plt.figure(figsize=(20, 8), dpi=60)

plt.bar(interval, quantity, width=3)
x_tick = [i - 0.5 for i in range(13)]
x = interval + [150]
plt.xticks(x_tick, x)
for a, b in zip(x, quantity):
    print(a, b)
    plt.text(a, b, '%d' % b)
plt.grid()
plt.show()
