ADC采集电压串口输出一直为0

（单片机小白）

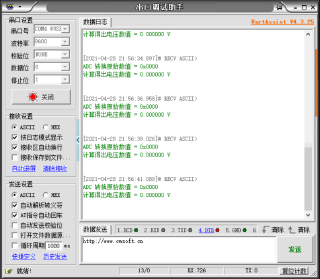

STMCUBEMX设置了两个ADC引脚，但是代码是根据论坛大佬们编写的，现在的问题就是串口最后输出的ADC电压一直为0。

int fputc(int ch, FILE *f)
{
    HAL_UART_Transmit(&huart1, (uint8_t *)&ch, 1, 0xffff);
    return ch;
}

int fgetc(FILE *f)
{
    uint8_t ch = 0;
    HAL_UART_Receive(&huart1, &ch, 1, 0xffff);
    return ch;
}

__IO uint32_t ADC_ConvertedValue;
// ?????????????
float ADC_Vol;

#define user_main_printf(format, ...) printf( format "\r\n", ##__VA_ARGS__)
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
/* USER CODE BEGIN PFP */
void SystemClock_Config(void);
/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_ADC_Init();
  MX_USART1_UART_Init();
  /* USER CODE BEGIN 2 */

HAL_ADCEx_Calibration_Start(&hadc);    //AD??

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {

    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
	  HAL_GPIO_WritePin(GPIOA,GPIO_PIN_5,GPIO_PIN_SET);
		HAL_Delay(1000);
		HAL_GPIO_TogglePin(GPIOA,GPIO_PIN_5);


		//add V transfer
		uint16_t ADC_temp1=0;
   float ADC_temp2=0;
   HAL_ADC_Start(&hadc);//????
   HAL_ADC_PollForConversion(&hadc,10);//??????
   if(HAL_IS_BIT_SET(HAL_ADC_GetState(&hadc),HAL_ADC_STATE_REG_EOC))//????????
   {
   ADC_temp1=HAL_ADC_GetValue(&hadc);//????0-256
   ADC_temp2=(float)ADC_temp1/4096*3.3;//3.3?????,??????????????

   printf("ADC ת»»Ô­Ê¼ÊýÖµ = 0x%04X\r\n",ADC_temp1);//????
   printf("¼ÆËãµÃ³öµçѹÊýÖµ = %f V\r\n",ADC_temp2);
   HAL_Delay(1000);
  }
}
	}
  /* USER CODE END 3 */

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
  RCC_PeriphCLKInitTypeDef PeriphClkInit = {0};

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI|RCC_OSCILLATORTYPE_HSI14;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.HSI14State = RCC_HSI14_ON;
  RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
  RCC_OscInitStruct.HSI14CalibrationValue = 16;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSI;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL4;
  RCC_OscInitStruct.PLL.PREDIV = RCC_PREDIV_DIV1;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0) != HAL_OK)
  {
    Error_Handler();
  }
  PeriphClkInit.PeriphClockSelection = RCC_PERIPHCLK_USART1;
  PeriphClkInit.Usart1ClockSelection = RCC_USART1CLKSOURCE_PCLK1;
  if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInit) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

分析程序是否真的没有问题，如果不是程序问题，尝试分析一下硬件方面是否有问题，毕竟涉及硬件和软件方面，这个和版本有很大关系

您好，我是有问必答小助手，您的问题已经有小伙伴解答了，您看下是否解决，可以追评进行沟通哦~

如果有您比较满意的答案 / 帮您提供解决思路的答案，可以点击【采纳】按钮，给回答的小伙伴一些鼓励哦～～

ps:问答VIP仅需29元，即可享受5次/月 有问必答服务，了解详情>>>https://vip.csdn.net/askvip?utm_source=1146287632

非常感谢您使用有问必答服务，为了后续更快速的帮您解决问题，现诚邀您参与有问必答体验反馈。您的建议将会运用到我们的产品优化中，希望能得到您的支持与协助！

速戳参与调研>>>https://t.csdnimg.cn/Kf0y

我也出现了这个问题，楼主解决了吗？希望分享交流一下

建议楼主再检查一下硬件方面的问题，STM32单片机内置ADC的参考电压是否选择错误，一般都是内部的VDDA，或者关闭一下use microlib试试，也有可能串口打印出现错误
