IAR编译出错，求大佬们指点

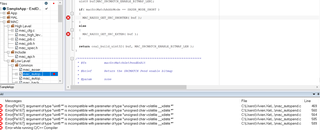

Error[Pe167]: argument of type "uint8 *" is incompatible with parameter of type "unsigned char volatile __xdata *" 代码：/* low-level */#include "mac_api.h"#include "mac_radio_defs.h"/* osal */#include "OSAL.h"#include "saddr.h"#include "ZComDef.h"#include "mac_autopend.h"/* ------------------------------------------------------------------------------------------------ * Defines * ------------------------------------------------------------------------------------------------ */#define MAC_SRCMATCH_INVALID_INDEX 0xFF#define MAC_SRCMATCH_SHORT_ENTRY_SIZE 4#define MAC_SRCMATCH_EXT_ENTRY_SIZE Z_EXTADDR_LEN#define MAC_SRCMATCH_SHORT_MAX_NUM_ENTRIES 24#define MAC_SRCMATCH_EXT_MAX_NUM_ENTRIES 12#define MAC_SRCMATCH_ENABLE_BITMAP_LEN 3 /* ------------------------------------------------------------------------------------------------ * Global Variables * ------------------------------------------------------------------------------------------------ */bool macSrcMatchIsEnabled = FALSE; /* ------------------------------------------------------------------------------------------------ * Local Variables * ------------------------------------------------------------------------------------------------ *//* The following local Varables are only set in MAC_SrcMatchEnable() They are read only to the rest of the module. */uint8 macSrcMatchMaxNumEntries = 0; uint8 macSrcMatchAddrMode = SADDR_MODE_SHORT; bool macSrcMatchIsAckAllPending = FALSE;/* ------------------------------------------------------------------------------------------------ * Local Functions * ------------------------------------------------------------------------------------------------ */static uint8 macSrcMatchFindEmptyEntry( void );static uint8 macSrcMatchCheckSrcAddr ( sAddr_t *addr, uint16 panID );static void macSrcMatchSetPendEnBit( uint8 index );static void macSrcMatchSetEnableBit( uint8 index, bool option );static bool macSrcMatchCheckEnableBit( uint8 index );static uint24 macSrcMatchGetEnableBit( void );static uint24 macSrcMatchGetPendEnBit( void );/********************************************************************* * @fn MAC_SrcMatchEnable * * @brief Enabled AUTOPEND and source address matching. If number of source * address table entries asked for is more than the hardware * supports. It will allocate maximum number of entries and return * MAC_INVALID_PARAMETER. This function shall be not be called from * ISR. It is not thread safe. * * @param addressType - address type that the application uses * SADDR_MODE_SHORT or SADDR_MODE_EXT * @param num - number of source address table entries to be used * * @return MAC_SUCCESS or MAC_INVALID_PARAMETER */uint8 MAC_SrcMatchEnable ( uint8 addrType, uint8 num ){ uint8 rtn; uint8 maxNum; /* Verify the address type */ if( addrType != SADDR_MODE_SHORT && addrType != SADDR_MODE_EXT ) { return MAC_INVALID_PARAMETER; } maxNum = ( addrType == SADDR_MODE_SHORT ) ? MAC_SRCMATCH_SHORT_MAX_NUM_ENTRIES : MAC_SRCMATCH_EXT_MAX_NUM_ENTRIES; if( num > maxNum ) { rtn = MAC_INVALID_PARAMETER; num = maxNum; } else { rtn = MAC_SUCCESS; } /* Turn on Frame Filter (TIMAC enables frame filter by default), TBD */ MAC_RADIO_TURN_ON_RX_FRAME_FILTERING(); /* Turn on Auto ACK (TIMAC turn on Auto ACK by default), TBD */ MAC_RADIO_TURN_ON_AUTO_ACK(); /* Turn on Autopend: set SRCMATCH.AUTOPEND and SRCMATCH.SRC_MATCH_EN */ MAC_RADIO_TURN_ON_SRC_MATCH(); /* Set SRCMATCH.AUTOPEND */ MAC_RADIO_TURN_ON_AUTOPEND(); /* Configure all the globals */ macSrcMatchIsEnabled = TRUE; macSrcMatchMaxNumEntries = num; macSrcMatchAddrMode = addrType; return rtn;}/********************************************************************* * @fn MAC_SrcMatchAddEntry * * @brief Add a short or extended address to source address table. This * function shall be not be called from ISR. It is not thread safe. * * @param addr - a pointer to sAddr_t which contains addrMode * and a union of a short 16-bit MAC address or an extended * 64-bit MAC address to be added to the source address table. * @param panID - the device PAN ID. It is only used when the addr is * using short address * @return MAC_SUCCESS or MAC_NO_RESOURCES (source address table full) * or MAC_DUPLICATED_ENTRY (the entry added is duplicated), * or MAC_INVALID_PARAMETER if the input parameters are invalid. */uint8 MAC_SrcMatchAddEntry ( sAddr_t *addr, uint16 panID ){ uint8 index; uint8 entry[MAC_SRCMATCH_SHORT_ENTRY_SIZE]; /* Check if the input parameters are valid */ if ( addr == NULL || addr->addrMode != macSrcMatchAddrMode ) { return MAC_INVALID_PARAMETER; } /* Check if the entry already exists. Do not add duplicated entry */ if ( macSrcMatchCheckSrcAddr( addr, panID ) != MAC_SRCMATCH_INVALID_INDEX ) { return MAC_DUPLICATED_ENTRY; } /* If not duplicated, write to the radio RAM and enable the control bit */ /* Find the first empty entry */ index = macSrcMatchFindEmptyEntry(); if ( index == macSrcMatchMaxNumEntries ) { return MAC_NO_RESOURCES; /* Table is full */ } if ( macSrcMatchAddrMode == SADDR_MODE_SHORT ) { /* Write the PanID and short address */ entry[0] = LO_UINT16( panID ); /* Little Endian for the radio RAM */ entry[1] = HI_UINT16( panID ); entry[2] = LO_UINT16( addr->addr.shortAddr ); entry[3] = HI_UINT16( addr->addr.shortAddr ); MAC_RADIO_SRC_MATCH_TABLE_WRITE( ( index * MAC_SRCMATCH_SHORT_ENTRY_SIZE ), entry, MAC_SRCMATCH_SHORT_ENTRY_SIZE ); } else { /* Write the extended address */ MAC_RADIO_SRC_MATCH_TABLE_WRITE( ( index * MAC_SRCMATCH_EXT_ENTRY_SIZE ), addr->addr.extAddr, MAC_SRCMATCH_EXT_ENTRY_SIZE ); } /* Set the Autopend enable bits */ macSrcMatchSetPendEnBit( index ); /* Set the Src Match enable bits */ macSrcMatchSetEnableBit( index, TRUE ); return MAC_SUCCESS;}/********************************************************************* * @fn MAC_SrcMatchDeleteEntry * * @brief Delete a short or extended address from source address table. * This function shall be not be called from ISR. It is not thread safe. * * @param addr - a pointer to sAddr_t which contains addrMode * and a union of a short 16-bit MAC address or an extended * 64-bit MAC address to be deleted from the source address table. * @param panID - the device PAN ID. It is only used when the addr is * using short address * * @return MAC_SUCCESS or MAC_INVALID_PARAMETER (address to be deleted * cannot be found in the source address table). */uint8 MAC_SrcMatchDeleteEntry ( sAddr_t *addr, uint16 panID ){ uint8 index; if ( addr == NULL || addr->addrMode != macSrcMatchAddrMode ) { return MAC_INVALID_PARAMETER; } /* Look up the source address table and find the entry. */ index = macSrcMatchCheckSrcAddr( addr, panID ); if( index == MAC_SRCMATCH_INVALID_INDEX ) { return MAC_INVALID_PARAMETER; } /* Clear Src Match enable bits */ macSrcMatchSetEnableBit( index, FALSE ); return MAC_SUCCESS;} /********************************************************************* * @fn MAC_SrcMatchAckAllPending * * @brief Enabled/disable acknowledging all packets with pending bit set * The application normally enables it when adding new entries to * the source address table fails due to the table is full, or * disables it when more entries are deleted and the table has * empty slots. * * @param option - TRUE (acknowledging all packets with pending field set) * FALSE (acknowledging all packets with pending field cleared) * * @return none */void MAC_SrcMatchAckAllPending ( uint8 option ) { if( option == TRUE ) { macSrcMatchIsAckAllPending = TRUE; /* Set the PENDING_OR register */ MAC_RADIO_TURN_ON_PENDING_OR(); } else { macSrcMatchIsAckAllPending = FALSE; /* Clear the PENDING_OR register */ MAC_RADIO_TURN_OFF_PENDING_OR(); }}/********************************************************************* * @fn MAC_SrcMatchCheckAllPending * * @brief Check if acknowledging all packets with pending bit set * is enabled. * * @param none * * @return MAC_AUTOACK_PENDING_ALL_ON or MAC_AUTOACK_PENDING_ALL_OFF */uint8 MAC_SrcMatchCheckAllPending ( void ){ if( macSrcMatchIsAckAllPending == TRUE ) { return MAC_AUTOACK_PENDING_ALL_ON; } return MAC_AUTOACK_PENDING_ALL_OFF;}/********************************************************************* * @fn MAC_SrcMatchCheckResult * * @brief Check the result of source matching * * @param index - index of the entry in the source address table * * @return TRUE or FALSE */MAC_INTERNAL_API bool MAC_SrcMatchCheckResult( void ){ uint8 resIndex; if ( macSrcMatchIsAckAllPending ) { return (TRUE); } MAC_RADIO_SRC_MATCH_RESINDEX( resIndex ); return ( resIndex & AUTOPEND_RES );}/********************************************************************* * @fn macSrcMatchFindEmptyEntry * * @brief return index of the first empty entry found * * @param none * * @return uint8 - return index of the first empty entry found */static uint8 macSrcMatchFindEmptyEntry( void ){ uint8 index; uint24 enable; enable = MAC_RADIO_SRC_MATCH_GET_EN(); if( macSrcMatchAddrMode == SADDR_MODE_SHORT ) { for( index = 0; index < macSrcMatchMaxNumEntries; index++ ) { if( ( enable & ( (uint24)0x01 << index ) ) == 0 ) { return index; } } } else { for( index = 0; index < macSrcMatchMaxNumEntries; index++ ) { if( ( enable & ( (uint24)0x01 << ( index * 2 ) ) ) == 0 ) { return index; } } } /* The value of index shall be macSrcMatchMaxNumEntries when it executes here. The table is full. */ return index;}/********************************************************************* * @fn macSrcMatchCheckSrcAddr * * @brief Check if a short or extended address is in the source address table. * This function shall not be called from ISR. It is not thread safe. * * @param addr - a pointer to sAddr_t which contains addrMode * and a union of a short 16-bit MAC address or an extended * 64-bit MAC address to be checked in the source address table. * @param panID - the device PAN ID. It is only used when the addr is * using short address * @return uint8 - index of the entry in the table. Return * MAC_SRCMATCH_INVALID_INDEX (0xFF) if address not found. */static uint8 macSrcMatchCheckSrcAddr ( sAddr_t *addr, uint16 panID ){ uint8 index; uint8 *pAddr; uint8 entrySize; uint8 entry[MAC_SRCMATCH_SHORT_ENTRY_SIZE]; uint8 ramEntry[MAC_SRCMATCH_EXT_ENTRY_SIZE]; /* Currently, shadow memory is not supported to optimize SPI traffic. */ if( macSrcMatchAddrMode == SADDR_MODE_SHORT ) { entry[0] = LO_UINT16( panID ); /* Little Endian for the radio RAM */ entry[1] = HI_UINT16( panID ); entry[2] = LO_UINT16( addr->addr.shortAddr ); entry[3] = HI_UINT16( addr->addr.shortAddr ); pAddr = entry; entrySize = MAC_SRCMATCH_SHORT_ENTRY_SIZE; } else { pAddr = addr->addr.extAddr; entrySize = MAC_SRCMATCH_EXT_ENTRY_SIZE; } for( index = 0; index < macSrcMatchMaxNumEntries; index++ ) { /* Check if the entry is enabled */ if( macSrcMatchCheckEnableBit( index ) == FALSE ) { continue; } /* Compare the short address and pan ID */ MAC_RADIO_SRC_MATCH_TABLE_READ( ( index * entrySize ), ramEntry, entrySize ); if( osal_memcmp( pAddr, ramEntry, entrySize ) == TRUE ) { /* Match found */ return index; } } return MAC_SRCMATCH_INVALID_INDEX;}/********************************************************************* * @fn macSrcMatchSetPendEnBit * * @brief Set the enable bit in the source address table * * @param index - index of the entry in the source address table * * @return none */static void macSrcMatchSetPendEnBit( uint8 index ){ uint24 enable; uint8 buf[MAC_SRCMATCH_ENABLE_BITMAP_LEN]; enable = MAC_RADIO_SRC_MATCH_GET_PENDEN(); if( macSrcMatchAddrMode == SADDR_MODE_SHORT ) { enable |= ( (uint24)0x01 << index ); osal_buffer_uint24( buf, enable ); MAC_RADIO_SRC_MATCH_SET_SHORTPENDEN( (unsigned char *)buf ); } else { enable |= ( (uint24)0x01 << ( index * 2 ) ); osal_buffer_uint24( buf, enable ); MAC_RADIO_SRC_MATCH_SET_EXTPENDEN( (unsigned char *)buf ); }}/********************************************************************* * @fn macSrcMatchSetEnableBit * * @brief Set or clear the enable bit in the SRCMATCH EN register * * @param index - index of the entry in the source address table * @param option - true (set the enable bit), or false (clear the enable bit) * * @return none */static void macSrcMatchSetEnableBit( uint8 index, bool option ){ uint24 enable; enable = MAC_RADIO_SRC_MATCH_GET_EN(); if( option == TRUE ) { if( macSrcMatchAddrMode == SADDR_MODE_SHORT ) { enable |= ( (uint24)0x01 << index ); MAC_RADIO_SRC_MATCH_SET_SHORTEN( enable ); } else { enable |= ( (uint24)0x01 << ( index * 2 ) ); MAC_RADIO_SRC_MATCH_SET_EXTEN( enable ); } } else { if( macSrcMatchAddrMode == SADDR_MODE_SHORT ) { enable &= ~( (uint24)0x01 << index ); MAC_RADIO_SRC_MATCH_SET_SHORTEN( enable ); } else { enable &= ~( (uint24)0x01 << ( index * 2 ) ); MAC_RADIO_SRC_MATCH_SET_EXTEN( enable ); } }}/********************************************************************* * @fn macSrcMatchCheckEnableBit * * @brief Check the enable bit in the source address table * * @param index - index of the entry in the source address table * * @return TRUE or FALSE */static bool macSrcMatchCheckEnableBit( uint8 index ){ uint24 enable; if( macSrcMatchAddrMode == SADDR_MODE_EXT ) { index *= 2; } enable = MAC_RADIO_SRC_MATCH_GET_EN(); if( enable & ( (uint24)0x01 << index ) ) { return TRUE; } return FALSE; } /********************************************************************* * @fn macSrcMatchGetEnableBit * * @brief Return the SRCMATCH enable bitmap * * @param none * * @return uint24 - 24 bits bitmap */static uint24 macSrcMatchGetEnableBit( void ){ uint8 buf[MAC_SRCMATCH_ENABLE_BITMAP_LEN]; if( macSrcMatchAddrMode == SADDR_MODE_SHORT ) { MAC_RADIO_GET_SRC_SHORTEN( (unsigned char *)buf ); } else { MAC_RADIO_GET_SRC_EXTEN( (unsigned char *)buf ); } return osal_build_uint32( buf, MAC_SRCMATCH_ENABLE_BITMAP_LEN );}/********************************************************************* * @fn macSrcMatchGetPendEnBit * * @brief Return the SRCMATCH Pend enable bitmap * * @param none * * @return uint24 - 24 bits bitmap */static uint24 macSrcMatchGetPendEnBit( void ){ uint8 buf[MAC_SRCMATCH_ENABLE_BITMAP_LEN]; if( macSrcMatchAddrMode == SADDR_MODE_SHORT ) { MAC_RADIO_GET_SRC_SHORTPENDEN( (unsigned char *)buf ); } else { MAC_RADIO_GET_SRC_EXTENPEND( (unsigned char *)buf ); } return osal_build_uint32( buf, MAC_SRCMATCH_ENABLE_BITMAP_LEN );}

你这个看着头疼，格式化一下再贴出来看看。

/* low-level */
#include "mac_api.h"
#include "mac_radio_defs.h"

/* osal */
#include "OSAL.h"
#include "saddr.h"
#include "ZComDef.h"

#include "mac_autopend.h"

/* ------------------------------------------------------------------------------------------------
 *                                           Defines
 * ------------------------------------------------------------------------------------------------
 */
#define MAC_SRCMATCH_INVALID_INDEX           0xFF

#define MAC_SRCMATCH_SHORT_ENTRY_SIZE        4
#define MAC_SRCMATCH_EXT_ENTRY_SIZE          Z_EXTADDR_LEN

#define MAC_SRCMATCH_SHORT_MAX_NUM_ENTRIES   24
#define MAC_SRCMATCH_EXT_MAX_NUM_ENTRIES     12

#define MAC_SRCMATCH_ENABLE_BITMAP_LEN       3

/* ------------------------------------------------------------------------------------------------
 *                                      Global Variables
 * ------------------------------------------------------------------------------------------------
 */
bool macSrcMatchIsEnabled = FALSE;

/* ------------------------------------------------------------------------------------------------
 *                                         Local Variables
 * ------------------------------------------------------------------------------------------------
 */

/*
 The following local Varables are only set in MAC_SrcMatchEnable()
 They are read only to the rest of the module.
 */
uint8 macSrcMatchMaxNumEntries = 0;
uint8 macSrcMatchAddrMode = SADDR_MODE_SHORT;
bool macSrcMatchIsAckAllPending = FALSE;

/* ------------------------------------------------------------------------------------------------
 *                                         Local Functions
 * ------------------------------------------------------------------------------------------------
 */
static uint8 macSrcMatchFindEmptyEntry( void );
static uint8 macSrcMatchCheckSrcAddr ( sAddr_t *addr, uint16 panID  );
static void macSrcMatchSetPendEnBit( uint8 index );
static void macSrcMatchSetEnableBit( uint8 index, bool option );
static bool macSrcMatchCheckEnableBit( uint8 index );
static uint24 macSrcMatchGetEnableBit( void );
static uint24 macSrcMatchGetPendEnBit( void );

/*********************************************************************
 * @fn          MAC_SrcMatchEnable
 *
 * @brief      Enabled AUTOPEND and source address matching. If number of source
 *             address table entries asked for is more than the hardware
 *             supports. It will allocate maximum number of entries and return
 *             MAC_INVALID_PARAMETER. This function shall be not be called from
 *             ISR. It is not thread safe.
 *
 * @param      addressType - address type that the application uses
 *                           SADDR_MODE_SHORT or SADDR_MODE_EXT
 * @param      num - number of source address table entries to be used
 *
 * @return     MAC_SUCCESS or MAC_INVALID_PARAMETER
 */
uint8 MAC_SrcMatchEnable ( uint8 addrType, uint8 num  )
{
  uint8 rtn;
  uint8 maxNum;

  /* Verify the address type */
  if( addrType != SADDR_MODE_SHORT && addrType != SADDR_MODE_EXT )
  {
    return MAC_INVALID_PARAMETER;
  }

  maxNum = ( addrType == SADDR_MODE_SHORT ) ?
           MAC_SRCMATCH_SHORT_MAX_NUM_ENTRIES : MAC_SRCMATCH_EXT_MAX_NUM_ENTRIES;

  if( num > maxNum )
  {
    rtn = MAC_INVALID_PARAMETER;
    num = maxNum;
  }
  else
  {
    rtn = MAC_SUCCESS;
  }

  /* Turn on Frame Filter (TIMAC enables frame filter by default), TBD */
  MAC_RADIO_TURN_ON_RX_FRAME_FILTERING();

  /* Turn on Auto ACK (TIMAC turn on Auto ACK by default), TBD */
  MAC_RADIO_TURN_ON_AUTO_ACK();

  /* Turn on Autopend: set SRCMATCH.AUTOPEND and SRCMATCH.SRC_MATCH_EN */
  MAC_RADIO_TURN_ON_SRC_MATCH();

  /* Set SRCMATCH.AUTOPEND */
  MAC_RADIO_TURN_ON_AUTOPEND();

  /* Configure all the globals */
  macSrcMatchIsEnabled = TRUE;
  macSrcMatchMaxNumEntries = num;
  macSrcMatchAddrMode = addrType;

  return rtn;
}

/*********************************************************************
 * @fn          MAC_SrcMatchAddEntry
 *
 * @brief       Add a short or extended address to source address table. This
 *              function shall be not be called from ISR. It is not thread safe.
 *
 * @param       addr - a pointer to sAddr_t which contains addrMode
 *                     and a union of a short 16-bit MAC address or an extended
 *                     64-bit MAC address to be added to the source address table.
 * @param       panID - the device PAN ID. It is only used when the addr is
 *                      using short address

 * @return      MAC_SUCCESS or MAC_NO_RESOURCES (source address table full)
 *              or MAC_DUPLICATED_ENTRY (the entry added is duplicated),
 *              or MAC_INVALID_PARAMETER if the input parameters are invalid.
 */
uint8 MAC_SrcMatchAddEntry ( sAddr_t *addr, uint16 panID )
{
  uint8 index;
  uint8 entry[MAC_SRCMATCH_SHORT_ENTRY_SIZE];

  /* Check if the input parameters are valid */
  if ( addr == NULL || addr->addrMode != macSrcMatchAddrMode )
  {
    return MAC_INVALID_PARAMETER;
  }

  /* Check if the entry already exists. Do not add duplicated entry */
  if ( macSrcMatchCheckSrcAddr( addr, panID ) != MAC_SRCMATCH_INVALID_INDEX )
  {
    return MAC_DUPLICATED_ENTRY;
  }

  /* If not duplicated, write to the radio RAM and enable the control bit */

  /* Find the first empty entry */
  index = macSrcMatchFindEmptyEntry();
  if ( index == macSrcMatchMaxNumEntries )
  {
    return MAC_NO_RESOURCES;   /* Table is full */
  }

  if ( macSrcMatchAddrMode == SADDR_MODE_SHORT )
  {
    /* Write the PanID and short address */
    entry[0] = LO_UINT16( panID );  /* Little Endian for the radio RAM */
    entry[1] = HI_UINT16( panID );
    entry[2] = LO_UINT16( addr->addr.shortAddr );
    entry[3] = HI_UINT16( addr->addr.shortAddr );
    MAC_RADIO_SRC_MATCH_TABLE_WRITE( ( index * MAC_SRCMATCH_SHORT_ENTRY_SIZE ),
                   entry, MAC_SRCMATCH_SHORT_ENTRY_SIZE );
  }
  else
  {
    /* Write the extended address */
    MAC_RADIO_SRC_MATCH_TABLE_WRITE( ( index * MAC_SRCMATCH_EXT_ENTRY_SIZE ),
                   addr->addr.extAddr, MAC_SRCMATCH_EXT_ENTRY_SIZE );
  }

  /* Set the Autopend enable bits */
  macSrcMatchSetPendEnBit( index );

  /* Set the Src Match enable bits */
  macSrcMatchSetEnableBit( index, TRUE );

  return MAC_SUCCESS;
}

/*********************************************************************
 * @fn         MAC_SrcMatchDeleteEntry
 *
 * @brief      Delete a short or extended address from source address table.
 *             This function shall be not be called from ISR. It is not thread safe.
 *
 * @param      addr - a pointer to sAddr_t which contains addrMode
 *                    and a union of a short 16-bit MAC address or an extended
 *                    64-bit MAC address to be deleted from the source address table.
 * @param      panID - the device PAN ID. It is only used when the addr is
 *                     using short address
 *
 * @return     MAC_SUCCESS or MAC_INVALID_PARAMETER (address to be deleted
 *                  cannot be found in the source address table).
 */
uint8 MAC_SrcMatchDeleteEntry ( sAddr_t *addr, uint16 panID  )
{
  uint8 index;

  if ( addr == NULL || addr->addrMode != macSrcMatchAddrMode )
  {
    return MAC_INVALID_PARAMETER;
  }

  /* Look up the source address table and find the entry. */
  index = macSrcMatchCheckSrcAddr( addr, panID );

  if( index == MAC_SRCMATCH_INVALID_INDEX )
  {
    return MAC_INVALID_PARAMETER;
  }

  /* Clear Src Match enable bits */
  macSrcMatchSetEnableBit( index, FALSE );

  return MAC_SUCCESS;
}

/*********************************************************************
 * @fn          MAC_SrcMatchAckAllPending
 *
 * @brief       Enabled/disable acknowledging all packets with pending bit set
 *              The application normally enables it when adding new entries to
 *              the source address table fails due to the table is full, or
 *              disables it when more entries are deleted and the table has
 *              empty slots.
 *
 * @param       option - TRUE (acknowledging all packets with pending field set)
 *                       FALSE (acknowledging all packets with pending field cleared)
 *
 * @return      none
 */
void MAC_SrcMatchAckAllPending ( uint8 option  )
{
  if( option == TRUE )
  {
    macSrcMatchIsAckAllPending = TRUE;

    /* Set the PENDING_OR register */
    MAC_RADIO_TURN_ON_PENDING_OR();
  }
  else
  {
    macSrcMatchIsAckAllPending = FALSE;

    /* Clear the PENDING_OR register */
    MAC_RADIO_TURN_OFF_PENDING_OR();
  }
}

/*********************************************************************
 * @fn          MAC_SrcMatchCheckAllPending
 *
 * @brief       Check if acknowledging all packets with pending bit set
 *              is enabled.
 *
 * @param       none
 *
 * @return      MAC_AUTOACK_PENDING_ALL_ON or MAC_AUTOACK_PENDING_ALL_OFF
 */
uint8 MAC_SrcMatchCheckAllPending ( void )
{
  if( macSrcMatchIsAckAllPending == TRUE )
  {
    return MAC_AUTOACK_PENDING_ALL_ON;
  }

  return MAC_AUTOACK_PENDING_ALL_OFF;
}

/*********************************************************************
 * @fn          MAC_SrcMatchCheckResult
 *
 * @brief       Check the result of source matching
 *
 * @param       index - index of the entry in the source address table
 *
 * @return      TRUE or FALSE
 */
MAC_INTERNAL_API bool MAC_SrcMatchCheckResult( void )
{
  uint8 resIndex;

  if ( macSrcMatchIsAckAllPending )
  {
    return (TRUE);
  }

  MAC_RADIO_SRC_MATCH_RESINDEX( resIndex );

  return ( resIndex & AUTOPEND_RES );
}

/*********************************************************************
 * @fn          macSrcMatchFindEmptyEntry
 *
 * @brief       return index of the first empty entry found
 *
 * @param       none
 *
 * @return      uint8 - return index of the first empty entry found
 */
static uint8 macSrcMatchFindEmptyEntry( void )
{
  uint8  index;
  uint24 enable;

  enable = MAC_RADIO_SRC_MATCH_GET_EN();

  if( macSrcMatchAddrMode == SADDR_MODE_SHORT )
  {
    for( index = 0; index < macSrcMatchMaxNumEntries; index++ )
    {
      if( ( enable & ( (uint24)0x01 << index ) ) == 0 )
      {
        return index;
      }
    }
  }
  else
  {
    for( index = 0; index < macSrcMatchMaxNumEntries; index++ )
    {
      if( ( enable & ( (uint24)0x01 << ( index * 2 ) ) ) == 0 )
      {
        return index;
      }
    }
  }

  /*
   The value of index shall be macSrcMatchMaxNumEntries when it executes
   here. The table is full.
  */
  return index;
}

/*********************************************************************
 * @fn         macSrcMatchCheckSrcAddr
 *
 * @brief      Check if a short or extended address is in the source address table.
 *             This function shall not be called from ISR. It is not thread safe.
 *
 * @param      addr - a pointer to sAddr_t which contains addrMode
 *                    and a union of a short 16-bit MAC address or an extended
 *                    64-bit MAC address to be checked in the source address table.
 * @param      panID - the device PAN ID. It is only used when the addr is
 *                     using short address

 * @return     uint8 - index of the entry in the table. Return
 *                     MAC_SRCMATCH_INVALID_INDEX (0xFF) if address not found.
 */
static uint8 macSrcMatchCheckSrcAddr ( sAddr_t *addr, uint16 panID  )
{
  uint8 index;
  uint8 *pAddr;
  uint8 entrySize;
  uint8 entry[MAC_SRCMATCH_SHORT_ENTRY_SIZE];
  uint8 ramEntry[MAC_SRCMATCH_EXT_ENTRY_SIZE];

  /*
   Currently, shadow memory is not supported to optimize SPI traffic.
  */

  if( macSrcMatchAddrMode == SADDR_MODE_SHORT )
  {
    entry[0] = LO_UINT16( panID );  /* Little Endian for the radio RAM */
    entry[1] = HI_UINT16( panID );
    entry[2] = LO_UINT16( addr->addr.shortAddr );
    entry[3] = HI_UINT16( addr->addr.shortAddr );
    pAddr = entry;
    entrySize = MAC_SRCMATCH_SHORT_ENTRY_SIZE;
  }
  else
  {
    pAddr = addr->addr.extAddr;
    entrySize = MAC_SRCMATCH_EXT_ENTRY_SIZE;
  }

  for( index = 0; index < macSrcMatchMaxNumEntries; index++ )
  {
    /* Check if the entry is enabled */
    if( macSrcMatchCheckEnableBit( index ) == FALSE )
    {
      continue;
    }

    /* Compare the short address and pan ID */
    MAC_RADIO_SRC_MATCH_TABLE_READ( ( index * entrySize ), ramEntry, entrySize );

    if( osal_memcmp( pAddr, ramEntry, entrySize ) == TRUE )
    {
      /* Match found */
      return index;
    }
  }

  return MAC_SRCMATCH_INVALID_INDEX;
}

/*********************************************************************
 * @fn          macSrcMatchSetPendEnBit
 *
 * @brief       Set the enable bit in the source address table
 *
 * @param       index - index of the entry in the source address table
 *
 * @return      none
 */
static void macSrcMatchSetPendEnBit( uint8 index )
{
  uint24 enable;
  uint8 buf[MAC_SRCMATCH_ENABLE_BITMAP_LEN];

  enable = MAC_RADIO_SRC_MATCH_GET_PENDEN();

  if( macSrcMatchAddrMode == SADDR_MODE_SHORT )
  {
    enable |= ( (uint24)0x01 << index );
    osal_buffer_uint24( buf, enable );
    MAC_RADIO_SRC_MATCH_SET_SHORTPENDEN( (unsigned char *)buf );
  }
  else
  {
    enable |= ( (uint24)0x01 << ( index * 2 ) );
    osal_buffer_uint24( buf, enable );
    MAC_RADIO_SRC_MATCH_SET_EXTPENDEN( (unsigned char *)buf );
  }
}

/*********************************************************************
 * @fn          macSrcMatchSetEnableBit
 *
 * @brief       Set or clear the enable bit in the SRCMATCH EN register
 *
 * @param       index - index of the entry in the source address table
 * @param       option - true (set the enable bit), or false (clear the enable bit)
 *
 * @return      none
 */
static void macSrcMatchSetEnableBit( uint8 index, bool option )
{
  uint24 enable;

  enable = MAC_RADIO_SRC_MATCH_GET_EN();

  if( option == TRUE )
  {
    if( macSrcMatchAddrMode == SADDR_MODE_SHORT )
    {
      enable |= ( (uint24)0x01 << index );
      MAC_RADIO_SRC_MATCH_SET_SHORTEN( enable );
    }
    else
    {
      enable |= ( (uint24)0x01 << ( index * 2 ) );
      MAC_RADIO_SRC_MATCH_SET_EXTEN( enable );
    }
  }
  else
  {
    if( macSrcMatchAddrMode == SADDR_MODE_SHORT )
    {
      enable &= ~( (uint24)0x01 << index );
      MAC_RADIO_SRC_MATCH_SET_SHORTEN( enable );
    }
    else
    {
      enable &= ~( (uint24)0x01 << ( index * 2 ) );
      MAC_RADIO_SRC_MATCH_SET_EXTEN( enable );
    }
  }
}

/*********************************************************************
 * @fn          macSrcMatchCheckEnableBit
 *
 * @brief       Check the enable bit in the source address table
 *
 * @param       index - index of the entry in the source address table
 *
 * @return      TRUE or FALSE
 */
static bool macSrcMatchCheckEnableBit( uint8 index )
{
  uint24 enable;

  if( macSrcMatchAddrMode == SADDR_MODE_EXT )
  {
    index *= 2;
  }

  enable = MAC_RADIO_SRC_MATCH_GET_EN();

  if( enable & ( (uint24)0x01 << index ) )
  {
    return TRUE;
  }

  return FALSE;
}

/*********************************************************************
 * @fn          macSrcMatchGetEnableBit
 *
 * @brief       Return the SRCMATCH enable bitmap
 *
 * @param       none
 *
 * @return      uint24 - 24 bits bitmap
 */
static uint24 macSrcMatchGetEnableBit( void )
{
  uint8 buf[MAC_SRCMATCH_ENABLE_BITMAP_LEN];

  if( macSrcMatchAddrMode == SADDR_MODE_SHORT )
  {
    MAC_RADIO_GET_SRC_SHORTEN( buf );
  }
  else
  {
    MAC_RADIO_GET_SRC_EXTEN( buf );
  }

  return osal_build_uint32( buf, MAC_SRCMATCH_ENABLE_BITMAP_LEN );
}

/*********************************************************************
 * @fn          macSrcMatchGetPendEnBit
 *
 * @brief       Return the SRCMATCH Pend enable bitmap
 *
 * @param       none
 *
 * @return      uint24 - 24 bits bitmap
 */
static uint24 macSrcMatchGetPendEnBit( void )
{
  uint8 buf[MAC_SRCMATCH_ENABLE_BITMAP_LEN];

  if( macSrcMatchAddrMode == SADDR_MODE_SHORT )
  {
    MAC_RADIO_GET_SRC_SHORTPENDEN( buf );
  }
  else
  {
    MAC_RADIO_GET_SRC_EXTENPEND( buf );
  }

  return osal_build_uint32( buf, MAC_SRCMATCH_ENABLE_BITMAP_LEN );
}


类型不匹配，强转一下类型就可以啦

您好，我是有问必答小助手，你的问题已经有小伙伴为您解答了问题，您看下是否解决了您的问题，可以追评进行沟通哦~

如果有您比较满意的答案 / 帮您提供解决思路的答案，可以点击【采纳】按钮，给回答的小伙伴一些鼓励哦～～

ps:问答VIP仅需29元，即可享受5次/月 有问必答服务，了解详情>>>https://vip.csdn.net/askvip?utm_source=1146287632

非常感谢您使用有问必答服务，为了后续更快速的帮您解决问题，现诚邀您参与有问必答体验反馈。您的建议将会运用到我们的产品优化中，希望能得到您的支持与协助！

速戳参与调研>>>https://t.csdnimg.cn/Kf0y
