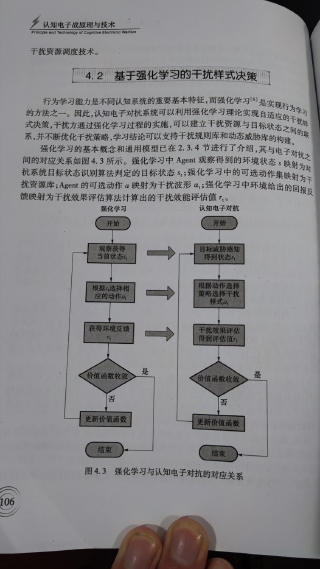

使用强化学习来构建干扰样式决策

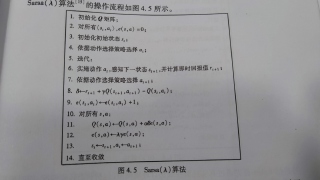

尽量使用sarsa或者Q-learning算法，基本就是实现实例中的东西，MATLAB

clc;
clear all;
% define state

R=ones(6,6)*-inf;

R(1,1)=0;R(1,2)=0;R(1,3)=0;R(1,5)=0;R(1,6)=0;
R(2,1)=0;R(2,2)=0;R(2,4)=0;R(2,5)=0;R(2,6)=0;
R(3,1)=0;R(3,3)=0;R(3,4)=0;R(3,5)=0;
R(4,2)=0;R(4,3)=0;R(4,4)=0;R(4,6)=0;
R(5,1)=0;R(5,2)=0;R(5,3)=0;R(5,5)=0;
R(6,1)=0;R(6,2)=0;R(6,4)=0;R(6,6)=0;
R(4,1)=-28;R(3,2)=25;R(2,3)=-25;
R(1,4)=28;R(6,3)=-26;R(5,4)=53;
R(4,5)=-53;R(3,6)=26;R(6,5)=-26;R(5,6)=26;


% reinforcement learning parameters  强化学习参数
gamma=0.9;
q=zeros(size(R));     % q matrix  Q矩阵
q1=ones(size(R))*inf; % previous q matrix　　以前的Q矩阵
count=0;

% visualize obstacle 可视化障碍
axis([0,10,0,6]);
hold on;
%plot([0,3],[3,3],'g','linewidth',2);
%plot([6,10],[3,3],'g','linewidth',2);
%plot([3,3],[2,3],'g','linewidth',2);
%plot([6,6],[2,3],'g','linewidth',2);
%plot([4,4],[0,2],'g','linewidth',2);
%plot([5,5],[0,2],'g','linewidth',2);
%plot([3,4],[2,2],'g','linewidth',2);
%plot([5,6],[2,2],'g','linewidth',2);

% intial state  初始状态
y=randperm(6);
state=y(1);

% q learning
tic
for episode=0:50000

    qma=max(q(state,:));
    if qma~=0
       x=find(q(state,:)==qma);
    else
       x=find(R(state,:)>=0);
    end
    % choose action
    if size(x,1)>0
        x1=RandomPermutation(x);
        x1=x1(1);
    end
    % update q matrix
    qMax=max(q,[],2);
    q(state,x1)=R(state,x1)+gamma*qMax(x1);
   %q价值函数矩阵
   %R是rt+1
    Y(1i)=5.5-floor((x1-1)/10);
    X(1i)=0.5+rem(x1-1,10);
    % visualization  可视化
    %A=plot([X(1i)-0.5,X(1i)+0.5],[Y(1i)-0.5,Y(1i)-0.5],'r-','linewidth',2);
    %B=plot([X(1i)-0.5,X(1i)+0.5],[Y(1i)+0.5,Y(1i)+0.5],'r-','linewidth',2);
    %C=plot([X(1i)-0.5,X(1i)-0.5],[Y(1i)-0.5,Y(1i)+0.5],'r-','linewidth',2);
    %D=plot([X(1i)+0.5,X(1i)+0.5],[Y(1i)-0.5,Y(1i)+0.5],'r-','linewidth',2);
    %pause(0.05);

     % break if converged: small deviation on q for 1000 consecutive
     % 如果收敛中断：连续1000次在Q上的偏差
     if sum(sum(abs(q1-q)))<0.0001 && sum(sum(q))>190
         if count>500
             episode;        % report last episode　报告最后一集
             break          % for
         else
             count=count+1; % set counter if deviation of q is small　如果Q的偏差很小，则设置计数器
         end
     else
          q1=q;
          count=0;
     end

     if(R(state,x1)==100)
         y=randperm(30);
         state=y(1);
         pause(0.4);
     else
         state=x1;
     end
        %delete(A);
        %delete(B);
        %delete(C);
        %delete(D);

end
toc
%normalization  归一化
g=max(max(q));
if g>0
    q=100*q/g;
end

只有一个BUG百出的程序，改不过来
