// 文件名
char file_name[100],file2_name[100];
// 指向影像文件的指针
FILE* stream = NULL;
// 影像宽度
int width = 255;
// 影像高度
int height = 255;
// 旋转角度
int sigma = 45;
// 圆周率π
const double pi = 3.14;
// 正弦值
double sinsigma = 0;
// 余弦值
double cossigma = 0;
// 画布宽度
int newwidth = 0;
// 画布高度
int newheight = 0;
// 保存原始影像的数组
unsigned char* src_image = NULL;
// 保存图像旋转后的数组
unsigned char* dst_image = NULL;
printf("演示如何实现图像叠加. \n");
printf("输入影像文件名: ");
scanf("%s", &file_name);
/*printf("输入影像宽度: ");
scanf("%d", &width);
printf("输入影像高度: ");
scanf("%d", &height);
printf("输入顺时针旋转度数: ");
scanf("%d",&sigma);*/
// 给原始影像开辟内存空间
src_image = (unsigned char*)malloc(width*height*sizeof(unsigned char));
// 打开文件
if((stream = fopen(file_name, "rb" )) == NULL)
{
printf("不能打开'%s'文件,程序退出!\n\n",file_name);
exit(-1);
}
else
printf("成功打开'%s'文件!\n\n",file_name);
// 读取影像数据到内存上
int numread = fread(src_image,sizeof(unsigned char),width*height,stream);
printf("共读入%d字节的数据\n",numread);
// 计算正弦、余弦值
cossigma = cos(sigma*pi/180);
sinsigma = sin(sigma*pi/180);
// 计算画布宽度和高度
newwidth = abs((0*cossigma+0*sinsigma)-(width*cossigma+height*sinsigma));
newheight = abs((-width*sinsigma+0*cossigma)-(-0*sinsigma+height*cossigma));
// 给图像除法后影像开辟内存空间
dst_image = (unsigned char*)malloc(newwidth*newheight*sizeof(unsigned char));
// 对画布赋初值
for(int y = 0;y<newheight;y++)
for(int x = 0;x<newwidth;x++)
{
dst_image[y*newwidth+x] = 0;
}
// 对旋转后图像进行赋值
for(int y = 0;y<height;y++)
for(int x = 0;x<width;x++)
{
dst_image[(int)((-x*sinsigma+y*cossigma)*newwidth+(x*cossigma+y*sinsigma))] = src_image[y*width+x];
}
// 行插值填充空白点
for(int y = 0;y<newheight;y++)
for(int x = 0;x<newwidth;x++)
{
if((dst_image[y*newwidth+x-1] != 0) && (dst_image[y*newwidth+x] == 0) && (dst_image[y*newwidth+x+1] != 0))
dst_image[y*newwidth+x] = dst_image[y*newwidth+x-1];
}
fclose(stream);
// 创建文件,将滤波后影像保存
char file_name_new[100] = {0};
printf("请输入要建立的文件名:");
scanf("%s",file_name_new);
FILE*stream_new = fopen(file_name_new,"at+");
if(stream_new == NULL)
{
printf("无法打开文件");
return 0;
}
fwrite(dst_image,sizeof(unsigned char),newheight*newwidth,stream_new);
fclose(stream_new);
printf("文件已保存\n");
// 完成工作,释放内存
free(src_image);
free(dst_image);
return 0;

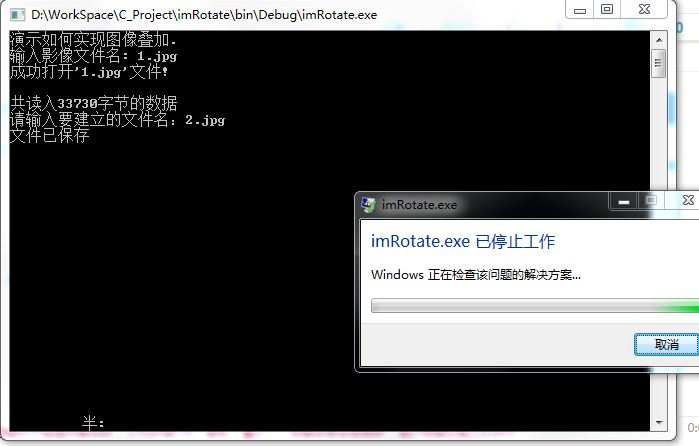

调试了几次,总是会在赋值也是正常的,但总会在fclose处跳出导致无法存储旋转后影像。肿么办肿么办
前面加上fflush()
Upon successful completion 0 is returned. Otherwise, EOF is returned and errno is set to indicate the error. In either case any further access
(including another call to fclose()) to the stream results in undefined behavior.
你第二次打开的流,是不是fopen了同一个文件啊?
指针越界了吧,或者最后再fclose
不是fclose的问题,是你操作图像数据的时候出现了溢出。你这样处理出来的图片就是打不开的。是在free()这里导致程序崩溃的。
