jqGrid 从后台能获取xml数据，但是前台grid数据就是显示不出来！页面有三条记录
后台打印出来的数据：
<Response>
<transResult>
<resultCode>1</resultCode>
<resultInfoDesc>交易处理成功</resultInfoDesc>
</transResult>
<object class="PageGrid">
<page>1</page>
<total>1</total>
<records>3</records>
<data>
<map>
<PRODUCT__CHANNEL>Z250000034</PRODUCT__CHANNEL>
<NAME>张三</NAME>
<CONT__NO>QH41A8160122000086</CONT__NO>
<START__ROWNUM__>1</START__ROWNUM__>
<PAYMENT__NAME>在线支付</PAYMENT__NAME>
<BIZE__CODE>101</BIZE__CODE>
<ORDER__NO>925120160122016952</ORDER__NO>
<HEART__STATUS>1</HEART__STATUS>
<PLAN__CODE></PLAN__CODE>
<RISK__CODE>41A8</RISK__CODE>
<PAY__STATUS>3</PAY__STATUS>
<ORG__FILE__PATH>http://127.0.0.1:8080/eservice/ebiz/client/insure.action?action=downloadPolicyFile&paras=emh1bW9iYW5uYW1lPUpLNDFBOCZwYXJhcz0xJTNkUUg0MUE4MTYwMTIyMDAwMDg2Jmlzc2lnbj10cnVl</ORG__FILE__PATH>
</map>
<map>
<PRODUCT__CHANNEL>Z250000034</PRODUCT__CHANNEL>
<NAME>张三</NAME>
<CONT__NO>QH41A8160122000084</CONT__NO>
<START__ROWNUM__>2</START__ROWNUM__>
<PAYMENT__NAME>在线支付</PAYMENT__NAME>
<BIZE__CODE>101</BIZE__CODE>
<ORDER__NO>925120160122016950</ORDER__NO>
<HEART__STATUS>1</HEART__STATUS>
<PLAN__CODE></PLAN__CODE>
<RISK__CODE>41A8</RISK__CODE>
<PAY__STATUS>3</PAY__STATUS>
<ORG__FILE__PATH>http://127.0.0.1:8080/eservice/ebiz/client/insure.action?action=downloadPolicyFile&paras=emh1bW9iYW5uYW1lPUpLNDFBOCZwYXJhcz0xJTNkUUg0MUE4MTYwMTIyMDAwMDg0Jmlzc2lnbj10cnVl</ORG__FILE__PATH>
</map>
<map>
<PRODUCT__CHANNEL>Z250000034</PRODUCT__CHANNEL>
<NAME>张三</NAME>
<CONT__NO>QH41A8160122000085</CONT__NO>
<START__ROWNUM__>3</START__ROWNUM__>
<PAYMENT__NAME>在线支付</PAYMENT__NAME>
<BIZE__CODE>101</BIZE__CODE>
<ORDER__NO>925120160122016951</ORDER__NO>
<HEART__STATUS>1</HEART__STATUS>
<PLAN__CODE></PLAN__CODE>
<RISK__CODE>41A8</RISK__CODE>
<PAY__STATUS>3</PAY__STATUS>
<ORG__FILE__PATH>http://127.0.0.1:8080/eservice/ebiz/client/insure.action?action=downloadPolicyFile&paras=emh1bW9iYW5uYW1lPUpLNDFBOCZwYXJhcz0xJTNkUUg0MUE4MTYwMTIyMDAwMDg1Jmlzc2lnbj10cnVl</ORG__FILE__PATH>
</map>
</data>
</object>
</Response>
查询SQL:
select
ord.order_no,<!-- 订单时间 -->
ord.cont_no, <!-- 保单号 -->
ord.product_Channel,<!-- 渠道代码 -->
insurance.risk_code, <!-- 产品编码 -->
insurance.plan_code,<!-- 款别 -->
appnt.name,<!-- 投保人 -->
ord.payment_name, <!-- 支付方式 -->
ord.bize_code,<!-- 业务类型 -->
ord.pay_status,
ord.HEART_STATUS, <!-- 导入核心状态 -->
cont.ORG_FILE_PATH <!--电子保单下载地址-->
from ebiz_order ord <!-- 订单表 -->
left join ebiz_appnt appnt <!-- 投保人表 -->
on ord.order_no =appnt.order_no
left join ebiz_payment pay <!-- 订单支付表 -->
on ord.unno = pay.order_no
and pay.is_delete =0
left join EBIZ_ORDER_INSURANCE insurance <!-- （订单险种表） -->
on ord.order_no = insurance.order_no
and insurance.is_delete =0
left join EBIZ_ELEC_CONT cont
on ord.cont_no = cont.cont_no
where ord.is_delete =0
<isNotNull property="orderNo"> and ord.order_No = #orderNo# </isNotNull>
<isNotNull property="contNo"> and ord.cont_No = #contNo# </isNotNull>
<isNotNull property="channelName">and ord.channel_Name = #channelName# </isNotNull>
<isNotNull property="productChannel">and ord.product_Channel = #productChannel# </isNotNull>
<isNotNull property="riskCode">and insurance.risk_Code= #riskCode# </isNotNull>
<isNotNull property="planCode">and insurance.plan_Code= #planCode# </isNotNull>
<isNotNull property="name">and appnt.name= #name# </isNotNull>
<isNotNull property="paymentName">and sale.payment_Name= #paymentName# </isNotNull>
<isNotNull property="payStatus">and ord.pay_Status= #payStatus# </isNotNull>
<isNotNull property="bizeCode">and ord.bize_Code= #bizeCode# </isNotNull>
<isNotNull property="heartStatus">and ord.heart_Status= #heartStatus# </isNotNull>
<isNotNull property="startDate"><![CDATA[and to_char(ord.modified_date,'yyyy-mm-dd') >= #startDate#]]></isNotNull>
<isNotNull property="endDate" ><![CDATA[and to_char(ord.modified_date, 'yyyy-mm-dd') <= #endDate# ]]></isNotNull>
order by ord.modified_date desc
JS代码：
$("#jqGridTableId").jqGrid({
url : Eservice.ctx +'/ebiz/inquire/contNoShow.action?action=getPolicyList&ajax=true',
mtype : 'POST',
postData : {
heartStatus:$("#heartStatus").val(),
contNo:$("#contNo").val(),
riskCode:$("#riskCode").val(),
planCode:$("#planCode").val(),
channelName:$("#channelName").val(),
productChannel:$("#productChannel").val(),
name:$("#name").val(),
paymentName:$("#paymentName").val(),
bizeCode:$("#bizeCode").val()
},
datatype : "xml",
colNames : ['保单号','渠道代码', '险种代码','款别',
'投保人','支付方式', '导入核心状态', '业务类型','操作','订单号','支付状态','电子保单下载地址'],
colModel : [{
name : 'CONT__NO',
index : 'CONT__NO',
align : 'center',
sortable : false,
width: 70
},{
name : 'PRODUCT__CHANNEL',
index : 'PRODUCT__CHANNEL',
align : 'center',
sortable : false,
width: 70
},{
name : 'RISK__CODE',
index : 'RISK__CODE',
align : 'center',
formatter : 'date',
sortable : false,
width: 55
},{
name : 'PLAN__CODE',
index : 'PLAN__CODE',
align : 'center',
sortable : false,
width: 120
},{
name : 'NAME',
index : 'NAME',
align : 'center',
sortable : false,
width: 55
},{
name : 'PAYMENT__NAME',
index : 'PAYMENT__NAME',
align : 'center',
sortable : false,
width: 50/*,*/
// formatter:function(val,rec){
// var cname;
// if(val=='1'){
// cname="已支付";
// }else if(val=='2'){
// cname="未支付";
// }else if(val=='3'){
// cname="支付失败";
// }
// return cname;
// }
},{
name : 'HEART__STATUS',
index : 'HEART__STATUS',
align : 'center',
sortable : false,
width: 50 /*,*/
/*formatter:function(val,rec){
var cname;
if(val=='1'){
cname="已导入";
}else if(val=='2'){
cname="未导入";
}else if(val=='3'){
cname="导入失败";
}
return cname;
}*/
},{
name : 'BIZE__CODE',
index : 'BIZE__CODE',
align : 'center',
sortable : false,
width: 75/*,
formatter:function(val,rec){
var cname;
if(val=='101'){
cname="投保";
}else if(val=='102'){
cname="退保";
}else if(val=='103'){
cname="投保批改";
}else if(val=='104'){
cname="异步返回";
}else if(val=='105'){
cname="注销";
}
return cname;
}*/
},{
name : 'OPER',
index : 'OPER',
align : 'center',
sortable : false,
width: 75
},{
name : 'ORDER__NO',
index : 'ORDER__NO',
hidden: true
},{
name : 'PAY__STATUS',
index : 'PAY__STATUS',
hidden: true
},{
name : 'ORG__FILE__PATH',
index : 'ORG__FILE__PATH',
hidden: true
}],
shrinkToFit : true,
rowNum : 10,
rowList : [ 10, 30, 50 ],
pager : '#jqGridPagerId',
viewrecords : true,
xmlReader : {
repeatitems : false,
root : "object",
row : "map",
page : 'page',
total : 'total',
records : 'records'
},
caption : "保单信息",
height:'auto',
gridComplete: function(){ //获得所有行的ID数组
var ids = $("#jqGridTableId").jqGrid('getDataIDs');
alert(ids);
var contNo=$('#contNo').val();
for(var i=0;i < ids.length;i++){
var arr = $("#jqGridTableId").jqGrid('getRowData',ids[i]);
alert(arr.ORDER__NO);
var linkReq = "<a href=# onclick=\'ContManage.winShowRequest('" + arr.ORDER__NO + "', '" + arr.CONT__NO + "')\'>" + arr.CONT__NO + "</a>";
$("#jqGridTableId").jqGrid('setRowData',ids[i],{CONT__NO:linkReq});
var linkHis = "<a href=# onclick=\'ContManage.winShowHis('" + arr.ORDER__NO + "', '" + arr.CONT__NO + "')\'>" + "日志" + "</a>";
$("#jqGridTableId").jqGrid('setRowData',ids[i],{OPER:linkHis});
var linkDetail = "<a href=# onclick=\'ContManage.winOpenOrder('" + arr.ORDER__NO + "', '" + arr.CONT__NO + "')\'>" + "详情" + "</a>";
$("#jqGridTableId").jqGrid('setRowData',ids[i],{OPER:linkDetail});
var linkDown = "<a href="+arr.ORG__FILE__PATH+"?"+ arr.CONT__NO + "\'>" + "电子保单下载" + "</a>";
$("#jqGridTableId").jqGrid('setRowData',ids[i],{OPER:linkDown});
}
}
});
浏览器 F12 看看数据response 到前台没有，如果数据回来了请确认，列名和返回的字段是否一一对应包括大小写。
看看你的xml 格式返回时否正确。参考 http://www.trirand.com/blog/jqgrid/server.php?q=1&_search=false&nd=1453774981234&rows=10&page=1&sidx=id&sord=desc
<?xml version='1.0' encoding='utf-8'?>
<rows><page>1</page><total>2</total><records>13</records><userdata name='tamount'>3820.00</userdata><userdata name='ttax'>462.00</userdata><userdata name='ttotal'>4284.00</userdata><row id='13'><cell>13</cell><cell>2007-10-06</cell><cell><![CDATA[Client 3]]></cell><cell>1000.00</cell><cell>0.00</cell><cell>1000.00</cell><cell><![CDATA[]]></cell></row><row id='12'><cell>12</cell><cell>2007-10-06</cell><cell><![CDATA[Client 2]]></cell><cell>700.00</cell><cell>140.00</cell><cell>840.00</cell><cell><![CDATA[]]></cell></row><row id='11'><cell>11</cell><cell>2007-10-06</cell><cell><![CDATA[Client 1]]></cell><cell>600.00</cell><cell>120.00</cell><cell>720.00</cell><cell><![CDATA[]]></cell></row><row id='10'><cell>10</cell><cell>2007-10-06</cell><cell><![CDATA[Client 2]]></cell><cell>100.00</cell><cell>20.00</cell><cell>120.00</cell><cell><![CDATA[]]></cell></row><row id='9'><cell>9</cell><cell>2007-10-06</cell><cell><![CDATA[Client 1]]></cell><cell>200.00</cell><cell>40.00</cell><cell>240.00</cell><cell><![CDATA[]]></cell></row><row id='8'><cell>8</cell><cell>2007-10-06</cell><cell><![CDATA[Client 3]]></cell><cell>200.00</cell><cell>0.00</cell><cell>200.00</cell><cell><![CDATA[]]></cell></row><row id='7'><cell>7</cell><cell>2007-10-05</cell><cell><![CDATA[Client 2]]></cell><cell>120.00</cell><cell>12.00</cell><cell>134.00</cell><cell><![CDATA[]]></cell></row><row id='6'><cell>6</cell><cell>2007-10-05</cell><cell><![CDATA[Client 1]]></cell><cell>50.00</cell><cell>10.00</cell><cell>60.00</cell><cell><![CDATA[]]></cell></row><row id='5'><cell>5</cell><cell>2007-10-05</cell><cell><![CDATA[Client 3]]></cell><cell>100.00</cell><cell>0.00</cell><cell>100.00</cell><cell><![CDATA[no tax at all]]></cell></row><row id='4'><cell>4</cell><cell>2007-10-04</cell><cell><![CDATA[Client 3]]></cell><cell>150.00</cell><cell>0.00</cell><cell>150.00</cell><cell><![CDATA[no tax]]></cell></row></rows>
这是页面展示效果
直接拿你贴出来的数据在4.4.0版本的jqGrid下没有问题。自己f12看下浏览器实际得到的数据是什么，怕是和你控制台输出的不一样
你返回的是xml 格式的数据，xml的数据我没试过，以前都是用的json 你的 3 是3条，说明这个已经读取到了。
http://www.trirand.com/blog/jqgrid/jqgrid.html 你看看 php返回的结构rows--->page--->total---->records---->cell ，每一个单元格是cell 的。不是你 这种形式，所以你可以写尝试后台自己做个假的数据和 官方的那种格式的xml 看看。jqgrid 源码我没看不知道他循环迭代数据是怎么个表现形式。
echo "<?xml version='1.0' encoding='utf-8'?$et\n";
echo "<rows>";
echo "<page>".$page."</page>";
echo "<total>".$total_pages."</total>";
echo "<records>".$count."</records>";
// be sure to put text data in CDATA
while($row = mysql_fetch_array($result,MYSQL_ASSOC)) {
echo "<row id='". $row[id]."'>";
echo "<cell>". $row[id]."</cell>";
echo "<cell>". $row[invdate]."</cell>";
echo "<cell><![CDATA[". $row[name]."]]></cell>";
echo "<cell>". $row[amount]."</cell>";
echo "<cell>". $row[tax]."</cell>";
echo "<cell>". $row[total]."</cell>";
echo "<cell><![CDATA[". $row[note]."]]></cell>";
echo "</row>";
}
echo "</rows>";
对了 无聊码农 说的是4.4 ， 我看的这个是4.0 http://www.trirand.com/blog/jqgrid/jqgrid.html

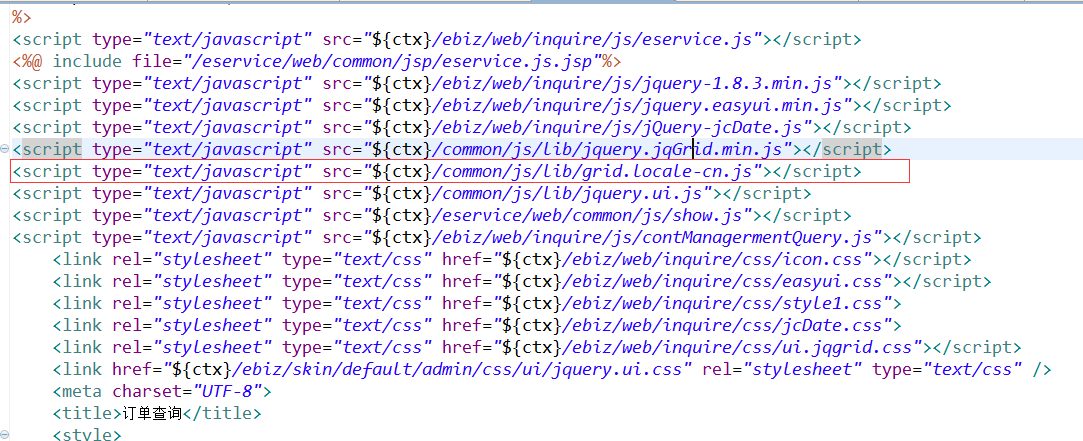

包我导入了，不知道为什么还报：Uncaught TypeError: Cannot read property 'integer' of undefined这个错误？数据出不来，不知道是不是这个错误导致的！
可能是包的兼容性的问题
写个简单的你保存html看看。
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>jqGrid Demos</title>
<link type="text/css" rel="stylesheet" href="http://www.trirand.com/blog/jqgrid/themes/redmond/jquery-ui-custom.css">
<link type="text/css" rel="stylesheet" href="http://www.trirand.com/blog/jqgrid/themes/ui.jqgrid.css">
<script src="http://www.trirand.com/blog/jqgrid/js/jquery.js" type="text/javascript"></script>
<script src="http://www.trirand.com/blog/jqgrid/js/i18n/grid.locale-en.js" type="text/javascript"></script>
<script src="http://www.trirand.com/blog/jqgrid/js/jquery.jqGrid.js" type="text/javascript"></script>
<script type="text/javascript">
jQuery().ready(function (){
var xml="<?xml version='1.0' encoding='utf-8'?>";
xml+="<rows><page>1</page><total>2</total><records>13</records><userdata name='tamount'>3820.00</userdata><userdata name='ttax'>462.00</userdata><userdata name='ttotal'>4284.00</userdata><row id='13'><cell>13</cell><cell>2007-10-06</cell><cell><![CDATA[Client 3]]></cell><cell>1000.00</cell><cell>0.00</cell><cell>1000.00</cell><cell><![CDATA[]]></cell></row><row id='12'><cell>12</cell><cell>2007-10-06</cell><cell><![CDATA[Client 2]]></cell><cell>700.00</cell><cell>140.00</cell><cell>840.00</cell><cell><![CDATA[]]></cell></row><row id='11'><cell>11</cell><cell>2007-10-06</cell><cell><![CDATA[Client 1]]></cell><cell>600.00</cell><cell>120.00</cell><cell>720.00</cell><cell><![CDATA[]]></cell></row><row id='10'><cell>10</cell><cell>2007-10-06</cell><cell><![CDATA[Client 2]]></cell><cell>100.00</cell><cell>20.00</cell><cell>120.00</cell><cell><![CDATA[]]></cell></row><row id='9'><cell>9</cell><cell>2007-10-06</cell><cell><![CDATA[Client 1]]></cell><cell>200.00</cell><cell>40.00</cell><cell>240.00</cell><cell><![CDATA[]]></cell></row><row id='8'><cell>8</cell><cell>2007-10-06</cell><cell><![CDATA[Client 3]]></cell><cell>200.00</cell><cell>0.00</cell><cell>200.00</cell><cell><![CDATA[]]></cell></row><row id='7'><cell>7</cell><cell>2007-10-05</cell><cell><![CDATA[Client 2]]></cell><cell>120.00</cell><cell>12.00</cell><cell>134.00</cell><cell><![CDATA[]]></cell></row><row id='6'><cell>6</cell><cell>2007-10-05</cell><cell><![CDATA[Client 1]]></cell><cell>50.00</cell><cell>10.00</cell><cell>60.00</cell><cell><![CDATA[]]></cell></row><row id='5'><cell>5</cell><cell>2007-10-05</cell><cell><![CDATA[Client 3]]></cell><cell>100.00</cell><cell>0.00</cell><cell>100.00</cell><cell><![CDATA[no tax at all]]></cell></row><row id='4'><cell>4</cell><cell>2007-10-04</cell><cell><![CDATA[Client 3]]></cell><cell>150.00</cell><cell>0.00</cell><cell>150.00</cell><cell><![CDATA[no tax]]></cell></row></rows>";
jQuery("#list1").jqGrid({
//url:'',
datatype: "xmlstring",
datastr : xml,
colNames:['Inv No','Date', 'Client', 'Amount','Tax','Total','Notes'],
colModel:[
{name:'id',index:'id', width:75},
{name:'invdate',index:'invdate', width:90},
{name:'name',index:'name', width:100},
{name:'amount',index:'amount', width:80, align:"right"},
{name:'tax',index:'tax', width:80, align:"right"},
{name:'total',index:'total', width:80,align:"right"},
{name:'note',index:'note', width:150, sortable:false}
],
rowNum:10,
autowidth: true,
rowList:[10,20,30],
pager: jQuery('#pager1'),
sortname: 'id',
viewrecords: true,
sortorder: "desc",
caption:"XML Example"
}).navGrid('#pager1',{edit:false,add:false,del:false});
})
</script>
</head>
<body>
<table id="list1"></table>
<div id="pager1"></div>
</body>
</html>
你现在的数据库可以出来了没。你先js 一个个的添加很多功能先暂时放放，将数据先展现出来。
