DevExpress如何实现对报表中双向表数据的动态绑定???
- 环境:为framework4.5.2 WPF框架 Dev为最新版本 数据来源为List(随报表预览界面一并生成,动态数据)
- 目的:现欲利用DevExpress的报表控件生成并展示横纵坐标都为动态的双向表格,且数据是随预览界面一起生成list(非静态)
- 现状:根据官方视频演示，对EF与SQL的数据都可以正常生成双向表 但是绑定数据源为未赋值的Ｌｉｓｔ并在程序启动并赋值时 报表便会报错 且每次报错位置都不唯一
- 问题如上 是在是解决无能 还请大神赐教

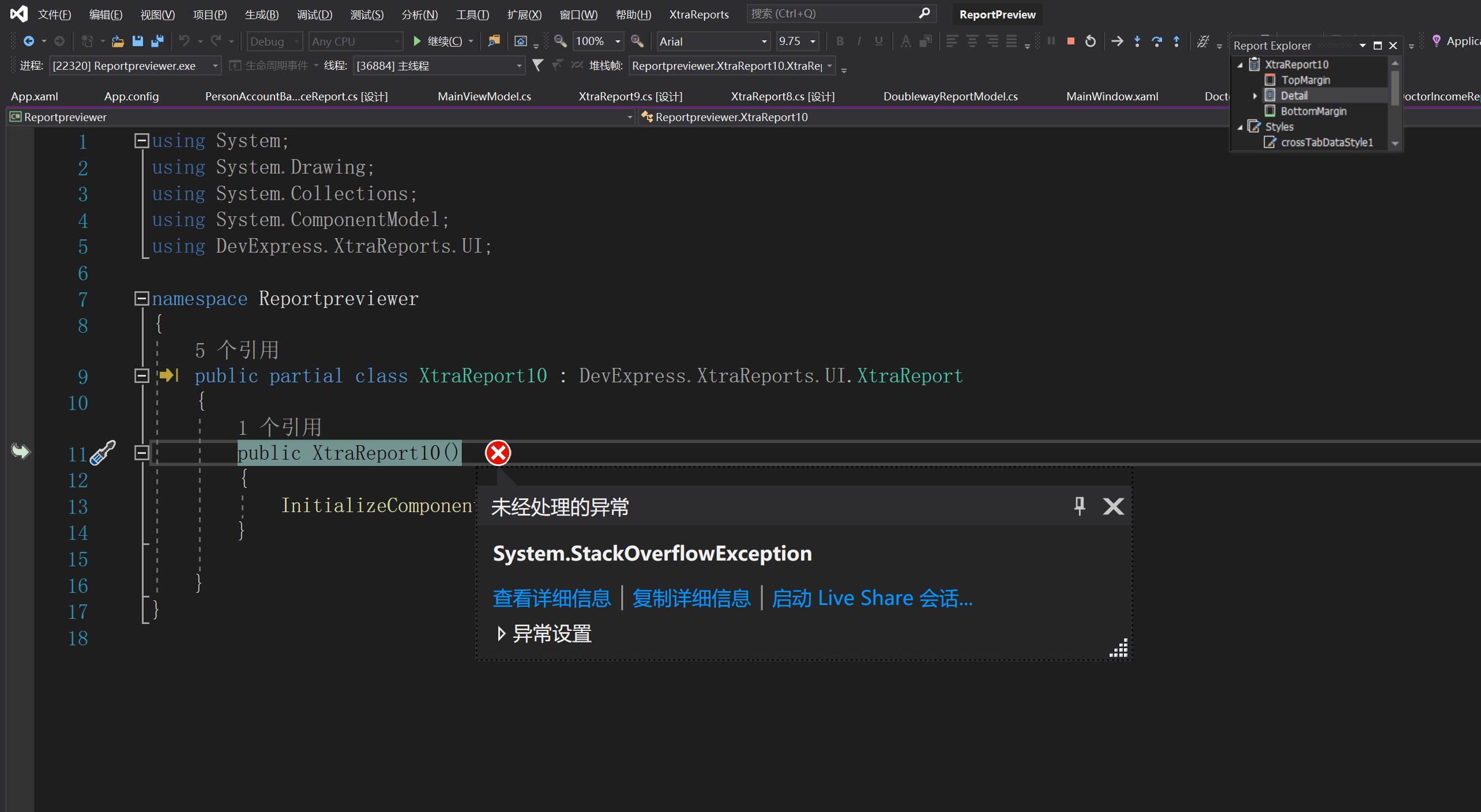

上图为报错其一

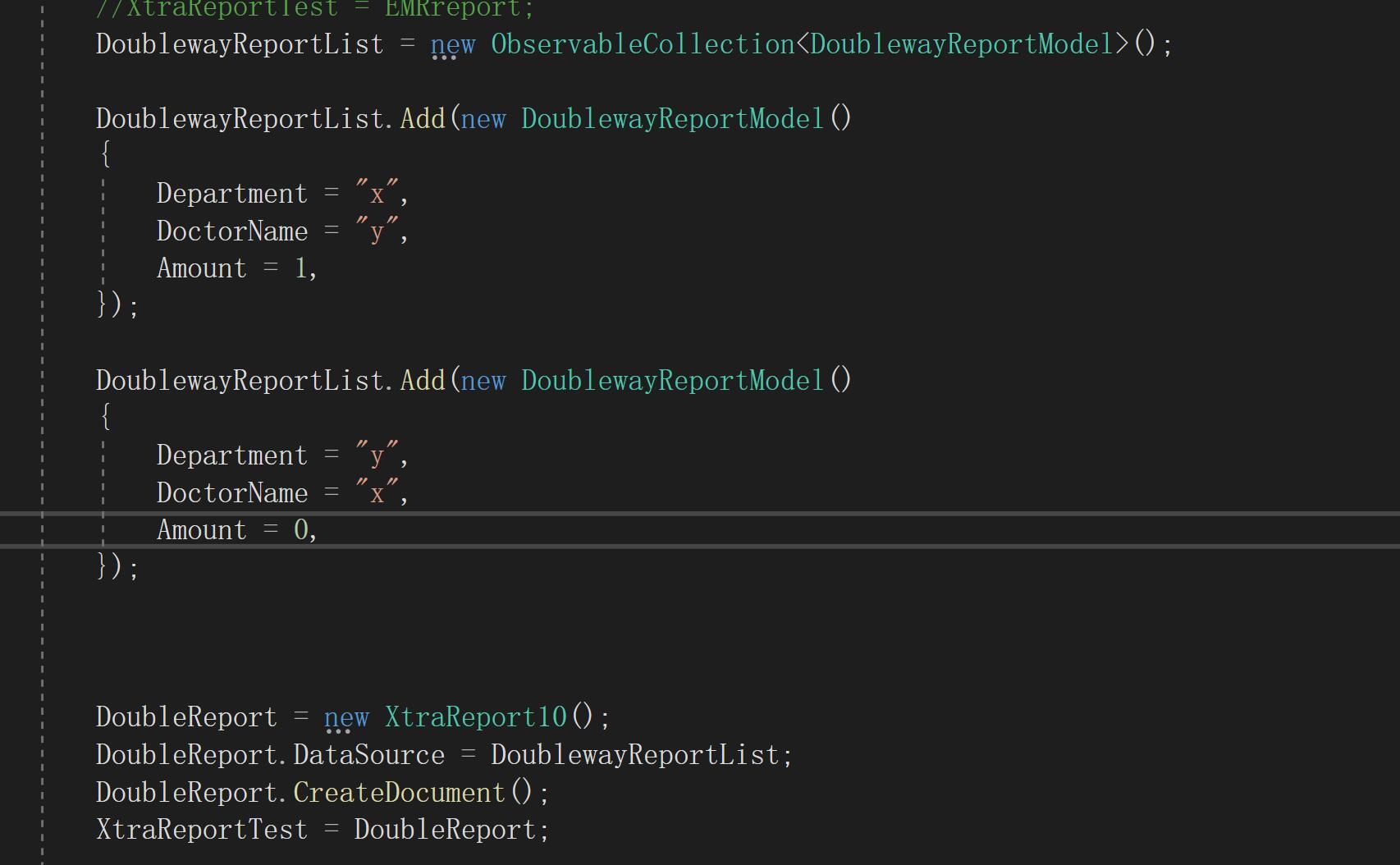

上图为赋值方法
InitializeComponent()代码如下
namespace Reportpreviewer
{
partial class XtraReport10
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.components = new System.ComponentModel.Container();
DevExpress.XtraReports.UI.CrossTab.CrossTabColumnField crossTabColumnField1 = new DevExpress.XtraReports.UI.CrossTab.CrossTabColumnField();
DevExpress.XtraReports.UI.CrossTab.CrossTabDataField crossTabDataField1 = new DevExpress.XtraReports.UI.CrossTab.CrossTabDataField();
DevExpress.XtraReports.UI.CrossTab.CrossTabRowField crossTabRowField1 = new DevExpress.XtraReports.UI.CrossTab.CrossTabRowField();
DevExpress.DataAccess.ObjectBinding.ObjectConstructorInfo objectConstructorInfo1 = new DevExpress.DataAccess.ObjectBinding.ObjectConstructorInfo();
this.TopMargin = new DevExpress.XtraReports.UI.TopMarginBand();
this.BottomMargin = new DevExpress.XtraReports.UI.BottomMarginBand();
this.Detail = new DevExpress.XtraReports.UI.DetailBand();
this.xrCrossTab1 = new DevExpress.XtraReports.UI.XRCrossTab();
this.crossTabHeaderCell1 = new DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell();
this.crossTabDataCell1 = new DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell();
this.crossTabHeaderCell2 = new DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell();
this.crossTabHeaderCell3 = new DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell();
this.crossTabGeneralStyle1 = new DevExpress.XtraReports.UI.XRControlStyle();
this.crossTabHeaderStyle1 = new DevExpress.XtraReports.UI.XRControlStyle();
this.crossTabDataStyle1 = new DevExpress.XtraReports.UI.XRControlStyle();
this.crossTabTotalStyle1 = new DevExpress.XtraReports.UI.XRControlStyle();
this.crossTabHeaderCell4 = new DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell();
this.crossTabTotalCell1 = new DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell();
this.crossTabHeaderCell5 = new DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell();
this.crossTabTotalCell2 = new DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell();
this.crossTabTotalCell3 = new DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell();
this.objectDataSource1 = new DevExpress.DataAccess.ObjectBinding.ObjectDataSource(this.components);
((System.ComponentModel.ISupportInitialize)(this.xrCrossTab1)).BeginInit();
((System.ComponentModel.ISupportInitialize)(this.objectDataSource1)).BeginInit();
((System.ComponentModel.ISupportInitialize)(this)).BeginInit();
//
// TopMargin
//
this.TopMargin.Name = "TopMargin";
//
// BottomMargin
//
this.BottomMargin.Name = "BottomMargin";
//
// Detail
//
this.Detail.Controls.AddRange(new DevExpress.XtraReports.UI.XRControl[] {
this.xrCrossTab1});
this.Detail.Name = "Detail";
//
// xrCrossTab1
//
this.xrCrossTab1.Cells.AddRange(new DevExpress.XtraReports.UI.XRControl[] {
this.crossTabHeaderCell1,
this.crossTabDataCell1,
this.crossTabHeaderCell2,
this.crossTabHeaderCell3,
this.crossTabHeaderCell4,
this.crossTabTotalCell1,
this.crossTabHeaderCell5,
this.crossTabTotalCell2,
this.crossTabTotalCell3});
this.xrCrossTab1.ColumnDefinitions.AddRange(new DevExpress.XtraReports.UI.CrossTab.CrossTabColumnDefinition[] {
new DevExpress.XtraReports.UI.CrossTab.CrossTabColumnDefinition(100F),
new DevExpress.XtraReports.UI.CrossTab.CrossTabColumnDefinition(100F),
new DevExpress.XtraReports.UI.CrossTab.CrossTabColumnDefinition(100F)});
crossTabColumnField1.FieldName = "DoctorName";
this.xrCrossTab1.ColumnFields.AddRange(new DevExpress.XtraReports.UI.CrossTab.CrossTabColumnField[] {
crossTabColumnField1});
this.xrCrossTab1.DataAreaStyleName = "crossTabDataStyle1";
crossTabDataField1.FieldName = "DoctorName";
crossTabDataField1.SummaryType = DevExpress.XtraReports.UI.CrossTab.SummaryType.Count;
this.xrCrossTab1.DataFields.AddRange(new DevExpress.XtraReports.UI.CrossTab.CrossTabDataField[] {
crossTabDataField1});
this.xrCrossTab1.DataSource = this.objectDataSource1;
this.xrCrossTab1.GeneralStyleName = "crossTabGeneralStyle1";
this.xrCrossTab1.HeaderAreaStyleName = "crossTabHeaderStyle1";
this.xrCrossTab1.LocationFloat = new DevExpress.Utils.PointFloat(0F, 0F);
this.xrCrossTab1.Name = "xrCrossTab1";
this.xrCrossTab1.RowDefinitions.AddRange(new DevExpress.XtraReports.UI.CrossTab.CrossTabRowDefinition[] {
new DevExpress.XtraReports.UI.CrossTab.CrossTabRowDefinition(25F),
new DevExpress.XtraReports.UI.CrossTab.CrossTabRowDefinition(25F),
new DevExpress.XtraReports.UI.CrossTab.CrossTabRowDefinition(25F)});
crossTabRowField1.FieldName = "DoctorName";
this.xrCrossTab1.RowFields.AddRange(new DevExpress.XtraReports.UI.CrossTab.CrossTabRowField[] {
crossTabRowField1});
this.xrCrossTab1.SizeF = new System.Drawing.SizeF(300F, 75F);
this.xrCrossTab1.TotalAreaStyleName = "crossTabTotalStyle1";
//
// crossTabHeaderCell1
//
this.crossTabHeaderCell1.ColumnIndex = 0;
this.crossTabHeaderCell1.Name = "crossTabHeaderCell1";
this.crossTabHeaderCell1.RowIndex = 0;
this.crossTabHeaderCell1.Text = "Doctor Name";
//
// crossTabDataCell1
//
this.crossTabDataCell1.ColumnIndex = 1;
this.crossTabDataCell1.Name = "crossTabDataCell1";
this.crossTabDataCell1.RowIndex = 1;
//
// crossTabHeaderCell2
//
this.crossTabHeaderCell2.ColumnIndex = 1;
this.crossTabHeaderCell2.Name = "crossTabHeaderCell2";
this.crossTabHeaderCell2.RowIndex = 0;
//
// crossTabHeaderCell3
//
this.crossTabHeaderCell3.ColumnIndex = 0;
this.crossTabHeaderCell3.Name = "crossTabHeaderCell3";
this.crossTabHeaderCell3.RowIndex = 1;
//
// crossTabGeneralStyle1
//
this.crossTabGeneralStyle1.BackColor = System.Drawing.Color.White;
this.crossTabGeneralStyle1.BorderColor = System.Drawing.Color.FromArgb(((int)(((byte)(160)))), ((int)(((byte)(160)))), ((int)(((byte)(160)))));
this.crossTabGeneralStyle1.Borders = ((DevExpress.XtraPrinting.BorderSide)((((DevExpress.XtraPrinting.BorderSide.Left | DevExpress.XtraPrinting.BorderSide.Top)
| DevExpress.XtraPrinting.BorderSide.Right)
| DevExpress.XtraPrinting.BorderSide.Bottom)));
this.crossTabGeneralStyle1.Font = new System.Drawing.Font("Arial", 9.75F);
this.crossTabGeneralStyle1.ForeColor = System.Drawing.Color.Black;
this.crossTabGeneralStyle1.Name = "crossTabGeneralStyle1";
this.crossTabGeneralStyle1.Padding = new DevExpress.XtraPrinting.PaddingInfo(2, 2, 0, 0, 100F);
//
// crossTabHeaderStyle1
//
this.crossTabHeaderStyle1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(240)))), ((int)(((byte)(240)))), ((int)(((byte)(240)))));
this.crossTabHeaderStyle1.Name = "crossTabHeaderStyle1";
this.crossTabHeaderStyle1.TextAlignment = DevExpress.XtraPrinting.TextAlignment.MiddleLeft;
//
// crossTabDataStyle1
//
this.crossTabDataStyle1.Name = "crossTabDataStyle1";
this.crossTabDataStyle1.TextAlignment = DevExpress.XtraPrinting.TextAlignment.MiddleRight;
//
// crossTabTotalStyle1
//
this.crossTabTotalStyle1.Name = "crossTabTotalStyle1";
this.crossTabTotalStyle1.TextAlignment = DevExpress.XtraPrinting.TextAlignment.MiddleRight;
//
// crossTabHeaderCell4
//
this.crossTabHeaderCell4.ColumnIndex = 2;
this.crossTabHeaderCell4.Name = "crossTabHeaderCell4";
this.crossTabHeaderCell4.RowIndex = 0;
this.crossTabHeaderCell4.Text = "Grand Total";
//
// crossTabTotalCell1
//
this.crossTabTotalCell1.ColumnIndex = 2;
this.crossTabTotalCell1.Name = "crossTabTotalCell1";
this.crossTabTotalCell1.RowIndex = 1;
//
// crossTabHeaderCell5
//
this.crossTabHeaderCell5.ColumnIndex = 0;
this.crossTabHeaderCell5.Name = "crossTabHeaderCell5";
this.crossTabHeaderCell5.RowIndex = 2;
this.crossTabHeaderCell5.Text = "Grand Total";
//
// crossTabTotalCell2
//
this.crossTabTotalCell2.ColumnIndex = 1;
this.crossTabTotalCell2.Name = "crossTabTotalCell2";
this.crossTabTotalCell2.RowIndex = 2;
//
// crossTabTotalCell3
//
this.crossTabTotalCell3.ColumnIndex = 2;
this.crossTabTotalCell3.Name = "crossTabTotalCell3";
this.crossTabTotalCell3.RowIndex = 2;
//
// objectDataSource1
//
this.objectDataSource1.Constructor = objectConstructorInfo1;
this.objectDataSource1.DataMember = "DoublewayReportList";
this.objectDataSource1.DataSource = typeof(Reportpreviewer.ViewModel.MainViewModel);
this.objectDataSource1.Name = "objectDataSource1";
//
// XtraReport10
//
this.Bands.AddRange(new DevExpress.XtraReports.UI.Band[] {
this.TopMargin,
this.BottomMargin,
this.Detail});
this.ComponentStorage.AddRange(new System.ComponentModel.IComponent[] {
this.objectDataSource1});
this.Font = new System.Drawing.Font("Arial", 9.75F);
this.StyleSheet.AddRange(new DevExpress.XtraReports.UI.XRControlStyle[] {
this.crossTabGeneralStyle1,
this.crossTabHeaderStyle1,
this.crossTabDataStyle1,
this.crossTabTotalStyle1});
this.Version = "20.1";
((System.ComponentModel.ISupportInitialize)(this.xrCrossTab1)).EndInit();
((System.ComponentModel.ISupportInitialize)(this.objectDataSource1)).EndInit();
((System.ComponentModel.ISupportInitialize)(this)).EndInit();
}
#endregion
private DevExpress.XtraReports.UI.TopMarginBand TopMargin;
private DevExpress.XtraReports.UI.BottomMarginBand BottomMargin;
private DevExpress.XtraReports.UI.DetailBand Detail;
private DevExpress.XtraReports.UI.XRCrossTab xrCrossTab1;
private DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell crossTabHeaderCell1;
private DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell crossTabDataCell1;
private DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell crossTabHeaderCell2;
private DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell crossTabHeaderCell3;
private DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell crossTabHeaderCell4;
private DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell crossTabTotalCell1;
private DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell crossTabHeaderCell5;
private DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell crossTabTotalCell2;
private DevExpress.XtraReports.UI.CrossTab.XRCrossTabCell crossTabTotalCell3;
private DevExpress.DataAccess.ObjectBinding.ObjectDataSource objectDataSource1;
private DevExpress.XtraReports.UI.XRControlStyle crossTabGeneralStyle1;
private DevExpress.XtraReports.UI.XRControlStyle crossTabHeaderStyle1;
private DevExpress.XtraReports.UI.XRControlStyle crossTabDataStyle1;
private DevExpress.XtraReports.UI.XRControlStyle crossTabTotalStyle1;
}
}
把你的InitializeComponent代码贴出来
出现堆栈溢出错误的原因是，在这个方法里出现了无限递归
也就是函数A调用了B，而B又调用了A，导致无限循环了。
