from imutils.video import FileVideoStream
from imutils.video import VideoStream
from imutils import face_utils
import numpy as np
import imutils
import dlib
import cv2
import sys
def _help():
print("Usage:")
print(" python blink_detect.py")
print(" python blink_detect.py <path of a video>")
print("For example:")
print(" python blink_detect.py video/lee.mp4")
print("If the path of a video is not provided, the camera will be used as the input.Press q to quit.")
def eye_aspect_ratio(eye):
A = np.linalg.norm(eye[1] - eye[5])
B = np.linalg.norm(eye[2] - eye[4])
C = np.linalg.norm(eye[0] - eye[3])
ear = (A + B) / (2.0 * C)
return ear
def blink_detection(vs, file_stream):
# define three constants, one for the eye aspect ratio to indicate
# blink and then the other constants for the min/max number of consecutive
# frames the eye must be below the threshold
EAR_THRESH = 0.2
EAR_CONSEC_FRAMES_MIN = 1
EAR_CONSEC_FRAMES_MAX = 2
# initialize the frame counters and the total number of blinks
blink_counter = [0, 0] # left eye and right eye
blink_total = [0, 0] # left eye and right eye
print("[INFO] loading facial landmark predictor...")
detector = dlib.get_frontal_face_detector()
predictor = dlib.shape_predictor("shape_predictor_68_face_landmarks.dat")
# grab the indexes of the facial landmarks for the left and
# right eye, respectively
(lStart, lEnd) = face_utils.FACIAL_LANDMARKS_IDXS["left_eye"]
(rStart, rEnd) = face_utils.FACIAL_LANDMARKS_IDXS["right_eye"]
print("[INFO] starting video stream thread...")
while True:
# if this is a file video stream, then we need to check if
# there any more frames left in the buffer to process
if file_stream and not vs.more():
break
frame = vs.read()
if frame is not None:
frame = imutils.resize(frame)
gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
#cv2.imshow("Frame", frame)
#cv2.waitKey()
rects = detector(gray, 0)
if len(rects) == 1:
rect = rects[0]
shape = predictor(gray, rect)
shape = face_utils.shape_to_np(shape)
left_eye = shape[lStart:lEnd]
right_eye = shape[rStart:rEnd]
left_ear = eye_aspect_ratio(left_eye)
right_ear = eye_aspect_ratio(right_eye)
# compute the convex hull for the left and right eye, then
# visualize each of the eyes
left_eye_hull = cv2.convexHull(left_eye)
right_eye_hull = cv2.convexHull(right_eye)
cv2.drawContours(frame, [left_eye_hull], -1, (0, 255, 0), 1)
cv2.drawContours(frame, [right_eye_hull], -1, (0, 255, 0), 1)
# check to see if the eye aspect ratio is below the blink
# threshold, and if so, increment the blink frame counter
if left_ear < EAR_THRESH:
blink_counter[0] += 1
# otherwise, the eye aspect ratio is not below the blink
# threshold
else:
# if the eyes were closed for a sufficient number of
# then increment the total number of blinks
if EAR_CONSEC_FRAMES_MIN <= blink_counter[0] and blink_counter[0] <= EAR_CONSEC_FRAMES_MAX:
blink_total[0] += 1
blink_counter[0] = 0
# draw the total number of blinks on the frame along with
# the computed eye aspect ratio for the frame
cv2.putText(frame, "LBlinks: {}".format(blink_total[0]), (10, 30),
cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 0, 255), 2)
cv2.putText(frame, "LEAR: {:.2f}".format(left_ear), (10, 60),
cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 0, 255), 2)
# check to see if the eye aspect ratio is below the blink
# threshold, and if so, increment the blink frame counter
if right_ear < EAR_THRESH:
blink_counter[1] += 1
# otherwise, the eye aspect ratio is not below the blink
# threshold
else:
# if the eyes were closed for a sufficient number of
# then increment the total number of blinks
if EAR_CONSEC_FRAMES_MIN <= blink_counter[1] and blink_counter[1] <= EAR_CONSEC_FRAMES_MAX:
blink_total[1] += 1
blink_counter[1] = 0
# draw the total number of blinks on the frame along with
# the computed eye aspect ratio for the frame
cv2.putText(frame, "RBlinks: {}".format(blink_total[1]), (200, 30),
cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 0, 255), 2)
cv2.putText(frame, "REAR: {:.2f}".format(right_ear), (200, 60),
cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 0, 255), 2)
elif len(rects) == 0:
cv2.putText(frame, "No face!", (10, 30),
cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 0, 255), 2)
else:
cv2.putText(frame, "More than one face!", (10, 30),
cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 0, 255), 2)
# cv2.namedWindow("Frame", cv2.WINDOW_NORMAL)
cv2.imshow("Frame", frame)
# if the `q` key was pressed, break from the loop
if cv2.waitKey(1) & 0xFF == ord('q'):
break
cv2.destroyAllWindows()
vs.stop()
if len(sys.argv) > 2 or "-h" in sys.argv or "--help" in sys.argv:
_help()
elif len(sys.argv) == 2:
vs = FileVideoStream(sys.argv[1]).start()
file_stream = True
blink_detection(vs, file_stream)
else:
vs = VideoStream(src=0).start()
file_stream = False
blink_detection(vs, file_stream)
detector = dlib.get_frontal_face_detector()

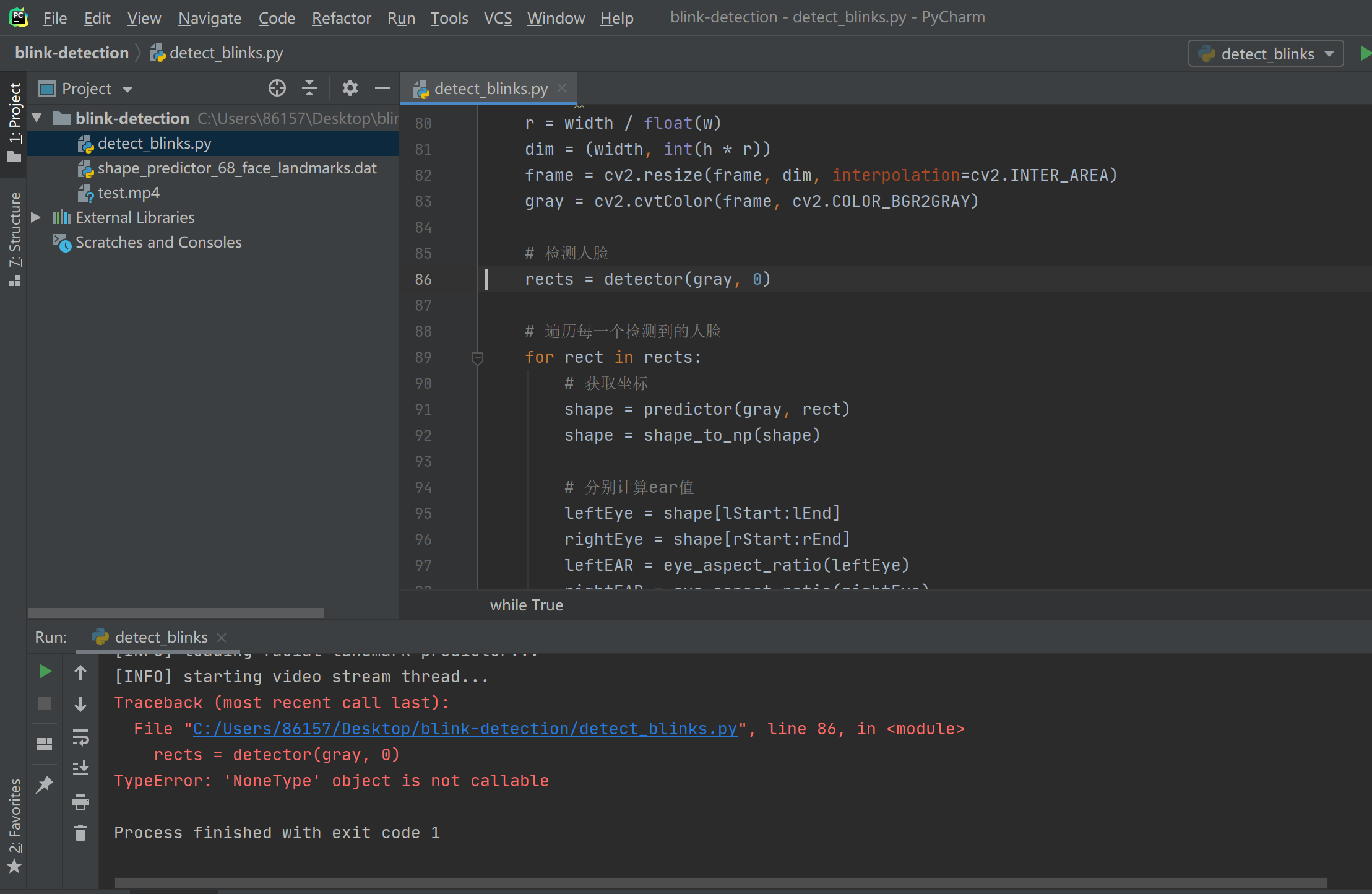

看看这里,为什么返回了none
